Project Background
Client: Leading logistics terminal operator in Karachi Port, Pakistan.
Challenge:
Outdated gantry cranes caused frequent downtime during container handling, with average transfer delays of 45 minutes/day.
High maintenance costs (up to $18,000/year) due to obsolete mechanical systems.
Limited yard space demanded a compact, high-precision crane to navigate narrow aisles (max. clearance: 12m).
Solution:
Supplied 1 unit of Sinoko 10T European Gantry Crane with dual-speed hoist and adaptive control.
Characteristics:
Capacity:10 tons,Handles ISO containers efficiently.
Span:11.43 meters,Fits constrained port layouts.
Lifting Height:5 meters,Optimal for truck loading/unloading.

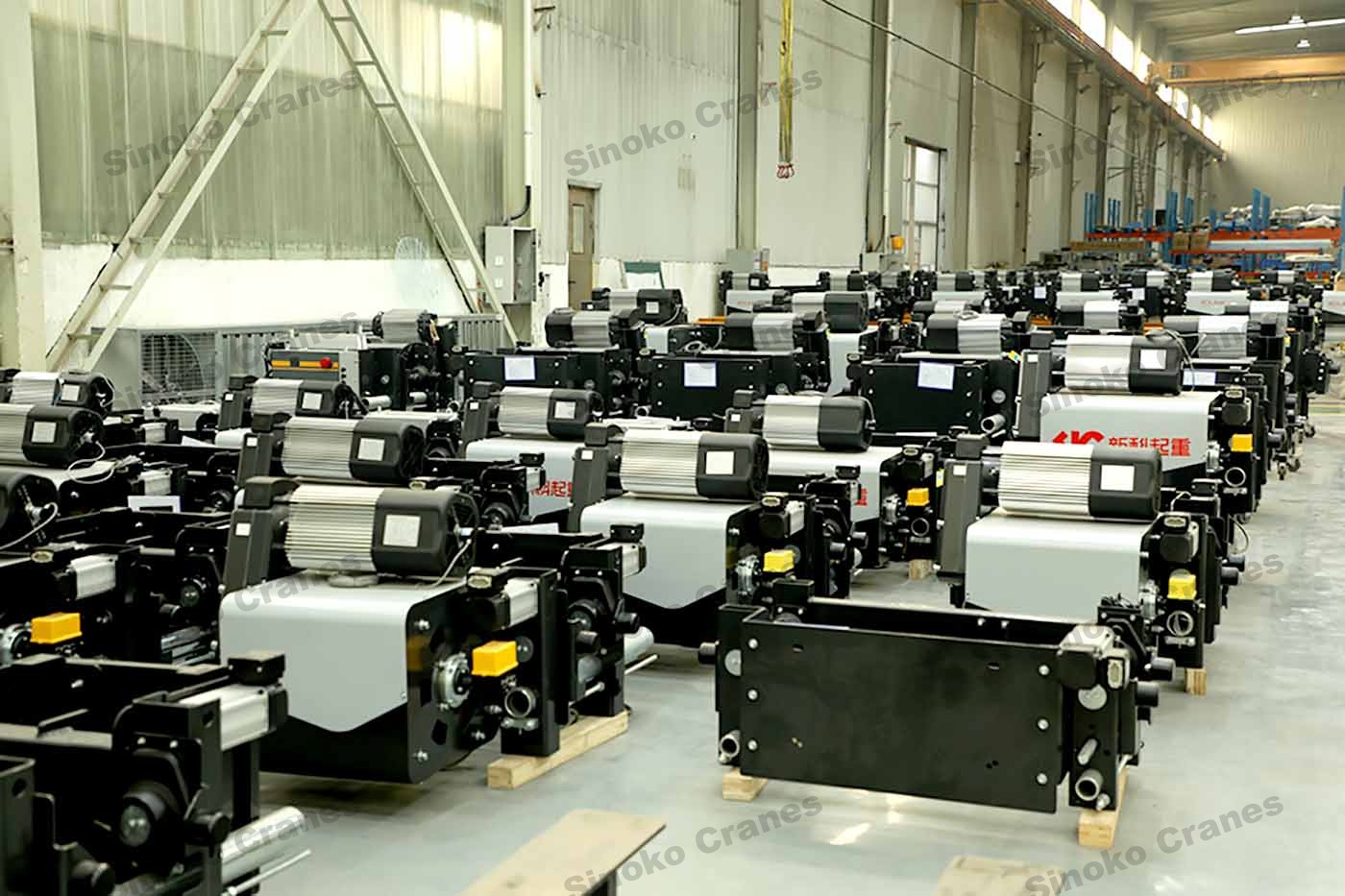

Hoist:10T European Electric Hoist,Dual-speed (0.8/8 m/min) for precision positioning.
Power:415V/50Hz/3Phase AC,Compatible with Pakistani grid.
Sinoko Gantry Crane Features: European Engineering Excellence
A. Space-Optimized Design
Compact Structure: 15% lighter than conventional models, reducing foundation reinforcement costs by $7,200.
Low Headroom Profile: 5m lifting height within 6m building clearance, maximizing vertical space utilization.
B. Advanced Motion Control
Dual-Speed Hoist:
Precision Mode (0.8 m/min): ±10mm accuracy for container locking pin alignment.
High-Speed Mode (8 m/min): Rapid transfer of 25 containers/hour.
Intelligent Braking: Self-adjusting disc brakes + overload limiter, eliminating cargo sway.
C. Durable EU-Components
Triple-Certified Gearmotor: ABM/Nord/SEW integrated unit (IP55-rated) resisting saltwater corrosion.
Galvanized Components:Wire ropes, bolts, and joints withstand Karachi’s humid coastal climate.
Programmable Safety Systems:
Automatic travel limit switches.
Emergency stop with <300mm drift distance (ISO 12485 compliant).
Implementation: Seamless Deployment
Phase 1: Site-Specific Engineering
3D Laser Scanning: Mapped terminal obstacles (pipes, lighting poles) to optimize rail alignment.
Localized Power Adaptation: Installed voltage stabilizers to handle ±10% grid fluctuations.
Phase 2: Installation & Training (12 Days)
Modular Assembly: Pre-assembled girder sections reduced on-site work by 40%.
Operator Training:
Urdu-language VR simulations for dual-speed operation.
Maintenance workshops focusing on bolt torque checks and brake calibration.
Phase 3: Compliance Validation
Load Testing: 125% (12.5T) static/dynamic tests with ≤5mm girder deflection.
Port Authority Certification: Met PNAC-Pakistan National Accreditation Council standards.
Results: Operational Transformation
Quantifiable Gains:
Metric | Before | After | Improvement |
Container Throughput | 18/hr | 25/hr | 39% increase |
Energy Consumption | 15 kW/h | 9 kW/h | 40% savings |
Maintenance Costs | $18,000/yr | $6,500/yr | 64% reduction |
Strategic Impact:
ROI Achieved: 11 months via reduced fuel waste and labor delays.
Downtime Elimination: Zero crane-related delays in 6 months post-installation.
Client Expansion: Subsequent order for 2 additional cranes for Gwadar Port terminal.
Application Domains
① Port Container Handling
Dual-speed hoist enables seamless transition between ship-to-shore and truck loading.
Corrosion-resistant materials extend lifespan in coastal environments.
② Warehouse Logistics
Compact span (11.43m) navigates tight storage aisles.
Precision mode assists fragile cargo (e.g., medical equipment) placement.
③ Manufacturing Plants
Low headroom design fits low-ceiling facilities (e.g., automotive parts assembly).
415V/50Hz compatibility integrates with Pakistani industrial power networks.
Client Testimonial:
"Sinoko’s crane moves containers like a surgeon’s scalpel—swift yet exact. We now handle peak-hour shipments without overtime labor costs."
— Operations Director, Karachi Port Terminal
From the perspective of the entire project case, Sinoko cranes' professionalism and their determination to solve problems for customers can be observed. If you are also planning to redefine your material handling solution, then Sinoko cranes will be your first choice. Sinoko cranes will tailor a suitable crane for you based on your specific needs.
