Rail-mounted container gantry cranes (or RMG / ARMGC) are dedicated equipment for container stacking in container yards.This RMG gantry crane is equipped with a special container spreader that can lift 20ft, 40ft, 45ft standard containers and hydraulic storage tanks. According to the needs of the work, the extension cantilever can be designed on one side or both sides of the main beam.

The Sinoko Rail-Mounted Gantry (RMG) crane is the product of decades of crane design experience and knowledge. It incorporates a host of technological innovations, including the smarter cabin with video and monitoring technology that provides superb visibility to container handling operations.

Share With:


Rail Mounted Container Gantry Crane

Rail-mounted container gantry cranes (or RMG / ARMGC) are dedicated equipment for container stacking in container yards.This RMG gantry crane is equipped with a special container spreader that can lift 20ft, 40ft, 45ft standard containers and hydraulic storage tanks. According to the needs of the work, the extension cantilever can be designed on one side or both sides of the main beam.

The Sinoko Rail-Mounted Gantry (RMG) crane is the product of decades of crane design experience and knowledge. It incorporates a host of technological innovations, including the smarter cabin with video and monitoring technology that provides superb visibility to container handling operations.

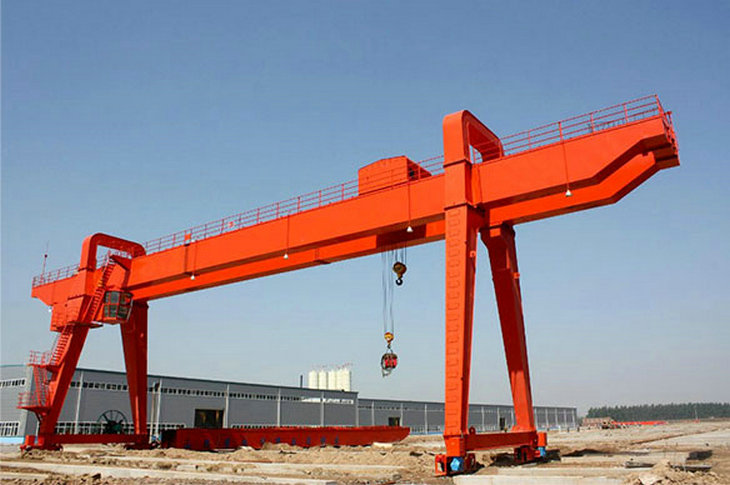

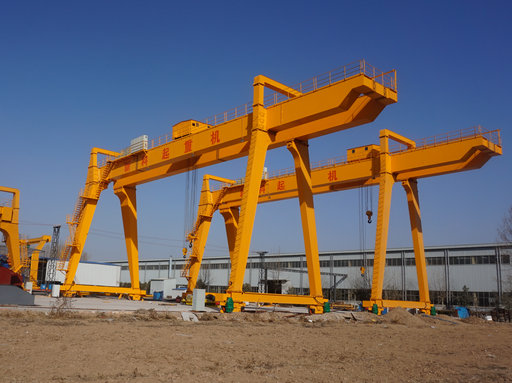

1. FEM Standard Cabin Control Rail Mounted Gantry Crane is widely used together with winch or trolley for lifting device.

2. It is a medium and heavy size crane which travels in track.

3. Its proper lifting weight is 5 to 60 tons,and proper span is 18 to 35 meters.

4. Its proper working temperature is -20--+40 centigrade.

5 .This Rail Mounted Gantry Crane is composed of main beam, support legs, crane traveling organ, trolley, electric equipment, strong lifting winch.

6. This product is a regular crane widely used in workshop, storage, port and hydroelectric power station and some other outdoor place, where it has a high frequency or more lifting times.

7. Power is supplied by cable or slide wire.

8. It is prohibited for lifting melt metal, flammable, explosive, corrosion, overloading, dust and other dangerous operations.


Sinoko Cranes Gantry Crane Projects

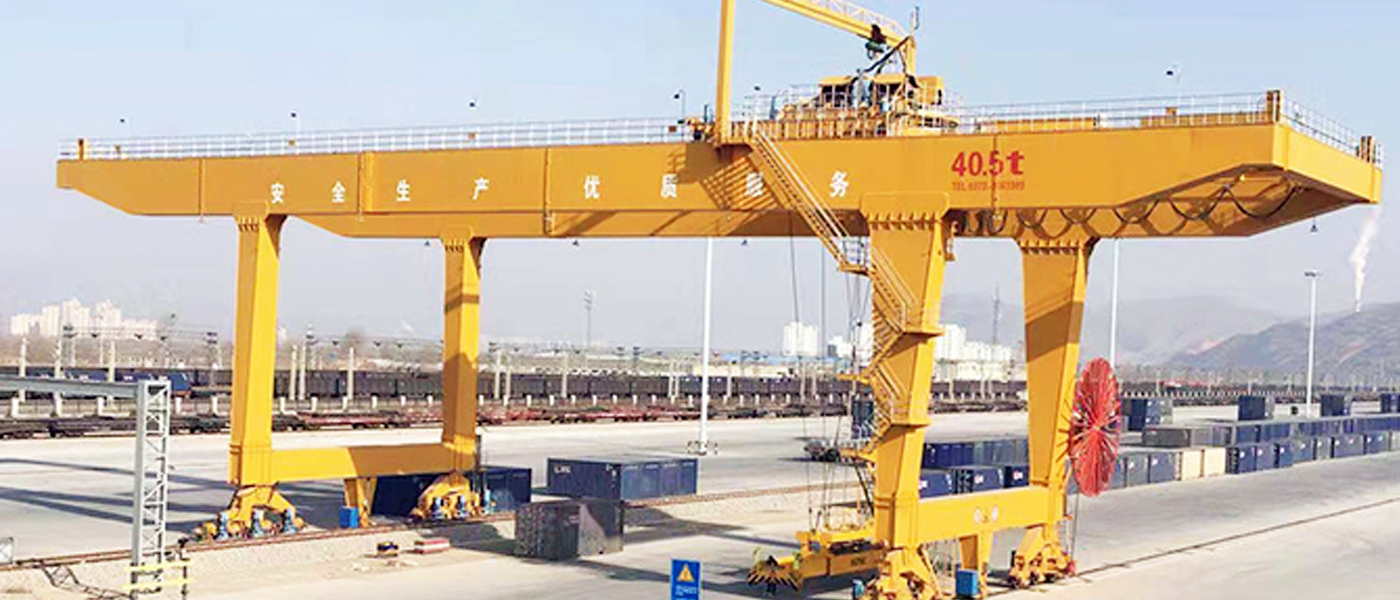

RMG gantry crane project case

Click to see more RMG gantry crane project details.

Shifts are available for different spans and different cantilevers.


Adopt international patent anti-swing system.


The spreader can move up and down smoothly and walk smoothly, which ensures the safe and efficient operation of the spreader.


When the crane span exceeds 40 meters, an electric synchronization system is installed on the crane.


Rail-mounted container gantry cranes offer excellent loading and movement flexibility and are ideal for loading and unloading cargo containers and other cargoes that require greater lift capacity as well as greater headroom and capacity.



Get a Free Quote

SOLUTION

Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.

CASE

Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.

Steel Coil Handling Crane

Steel Coil Handling Crane

Steel Coils Yard Automation Crane is specifically designed for the steel industry, with advanced automation options that increase safety while increasing productivity. Get free quote.

Learn More Get a Quote

FAQs

How long is the delivery time generally?

Generally the crane delivery time is  20 to 40 working days, electric hoist lead time is 15 working days, jib crane is about 20 working days.The delivery time will be longer if the product is customized according to special requirements.

Can you provide one or two years wearing parts?
Yes, we will provide one year of wearing parts for free.
What kind of certification did you pass? Do you have ISO certificate?

We have ISO quality management system certificate, our products have passed CE certification, our crane products can enter the EU market;

In addition, we can do third-party inspection or certification according to your requirement;

Our marine winches can do DNV, ABS, BV etc. Classification Society Certification.

How is your product packed to avoid damages?

The steel structure of our products is generally packaged with plastic film to protect it from rain.

Electrical and other smaller parts are packed in standard export-use non-fumigation wooden boxes or plywood boxes, and are reinforced with iron nails or steel plates to prevent damage in collisions.

How do you provide after-sales service?

We can provide 7*24 online service, and engineers can provide remote guidance.

If the problem cannot be solved, we can send an engineer to the site for the installation.

What is the difference between your crane and the European standard crane?

We have two types of cranes with different standards, the Chinese national standard and the European standard. According to the requirements of different clients, we provide different crane products.

The Chinese standard cranes are widely used and cost-effective, while the European standard ones are maintenance-free products, and easy to operate. They are more convenient, better performance, and can save maintenance costs.

What is the working principle of anti-sway product?

The frequency converter is used to adjust the speed of each mechanism to reduce the influence of inertia, so that the smoothness of crane operation and lifting can be greatly improved.

What brand do you choose for your electrical appliances?

For export products, we usually choose the brands such as Schneider, Siemens, ABB, etc. The quality of these brands is guaranteed.

It is easy to find after-sales service centers in the local area, and replacement parts are easy to purchase.

What is the crane work duty?

The work duty of the crane is determined by the load status and the number of cycles. It is not that the larger the lifting capacity, the higher the working level.

The more frequent the use, the closer the lifting weight is to the rated lifting capacity, the higher the working level.

How to guarantee the crane’s life span in humidity environment?

In order to ensure the corrosion resistance of the crane, we will perform the following treatments:

Firstly, for the steel plate of the crane, we will make shot blasting and spray epoxy zinc-rich primer painting after cutting.

Secondly, there will be primer coat, middle coat, finish coat, three layers painting totally. All of them have high corrosion resistance, strong adhesion features, and a total thickness of 105 micron to ensure that it reaches the ISO standard derusting grade Sa2.

Finally, we will design rain cover for motors, electrical appliances, and lifting parts to avoid the entry of rainwater.
