Single Girder Overhead Crane

Sinokocranes Single Girder Bridge Crane is the ideal choice for small to medium lifting tasks, suitable for applications with loads under 20 tons and spans within 35 meters (such as warehouses, workshops, or steel/chemical plants). Whether you need standard lifting or specialized solutions, our customizable single girder crane adapts to your needs with easy maintenance and reliable performance for industrial environments.

sinoko single girder overhead crane

Single Girder Overhead Crane

Advantages
  • Low headroom

  • Smart driving, higher efficiency

  • Stepless control trolley

  • Hardened gear

  • IP55/H Insulation

  • Heavy duty motor, 60%ED rating

  • Over heating, overloading protect

  • Electromagnetic disk brake

  • Super drum, longer rope lifetime

  • DIN 34CrMo4 hook, class T

  • Maintenance free

Sinoko overhead crane combines high performance, low maintenance, and user-friendly features, making it an ideal choice for various lifting applications.

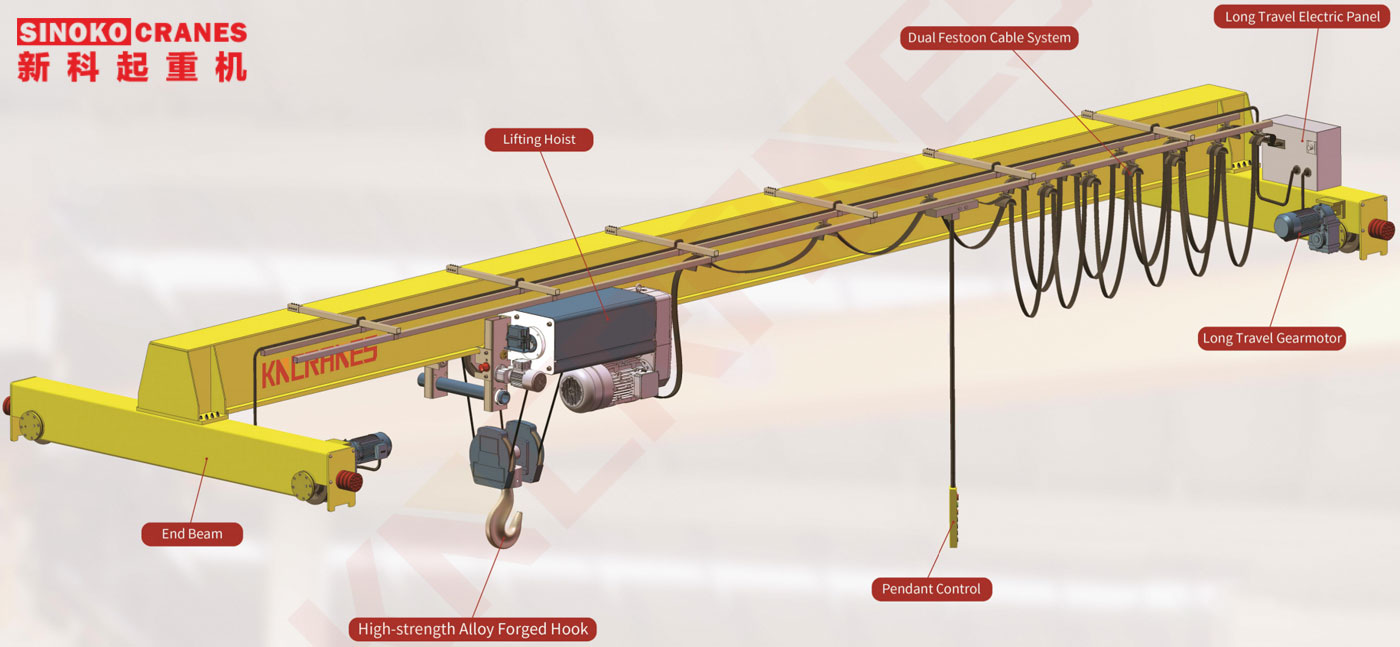

Main Components of Overhead Crane


  • 1. Bridge or Girders: The bridge is the horizontal beam or framework that spans the width of the working area. It supports the hoist and trolley and moves along the runways.

  • 2. End Trucks: End trucks are located at each end of the bridge and house the wheels on which the bridge travels along the runway. End trucks can be motorized for powered movement or manually operated.

  • 3. Runway: The runway is a system of rails or beams on which the bridge travels. It is typically installed at an elevated level, either on the building’s support structure or on freestanding columns.

  • 4. Hoist: The hoist is the lifting mechanism mounted on the bridge. It consists of a motor, a drum or lift wheel, and a hook or other lifting attachment. The hoist raises and lowers the load.

  • 5. Trolley: The trolley is a mechanism that moves horizontally along the bridge, allowing the load to be positioned precisely within the working area.

  • 6. Controls: Overhead cranes are operated using a control system, which can be located in an operator’s cabin or through a remote control device. The controls manage the movement of the bridge, trolley, and hoist.

  • 7. Operator’s Cabin: The operator’s cabin is a control station mounted on the bridge or located nearby. It provides the crane operator with a clear view of the working area and houses the controls for operating the crane.

  • 8. Power Supply: Overhead cranes can be powered by electricity or other sources such as diesel engines. The power supply provides energy to the crane’s motors for lifting, traversing, and other operations.

  • 9. Braking System: A braking system is crucial for controlling and stopping the movement of the crane. It helps to ensure that the crane can hold a load securely and stop precisely when required.

  • 10. Safety Features: Overhead cranes are equipped with safety features such as limit switches, overload protection, and emergency stop systems to ensure safe operations.

Featured Single Girder Overhead Cranes

Single beam overhead crane including single main girder, end beams, hoisting mechanism, trolley traveling mechanism, and electrical equipment, featuring a compact structure and stable operation. This type of crane can be top running style or underhung crane style to match different needs.

Underhung Monorail Cranes

Underhung Monorail Cranes

Sinokocrane is one of the best Hoist Crane Supplier & Manufacturer Company in China, supply high quality underhung monorail cranes at competitive prices. Available in 3 ton 5 ton 10 ton etc. Get a free quote.

Learn More                            Get a Quote
Top Running Single Girder Bridge Crane

Top Running Single Girder Bridge Crane

Top Running Single Girder Bridge overhead crane manufactured with Europe design, The max. capacity of Sinoko cranes is 80t. It provides a good experience and save your cost.

Learn More                            Get a Quote
Low Headroom Single Girder Overhead Crane

Low Headroom Single Girder Overhead Crane

The Euro-type low headroom single girder overhead crane is specially designed by SINOKO crane and it is different from the old type domestic crane. It has more advanced performance and higher working efficiency.

Learn More                            Get a Quote

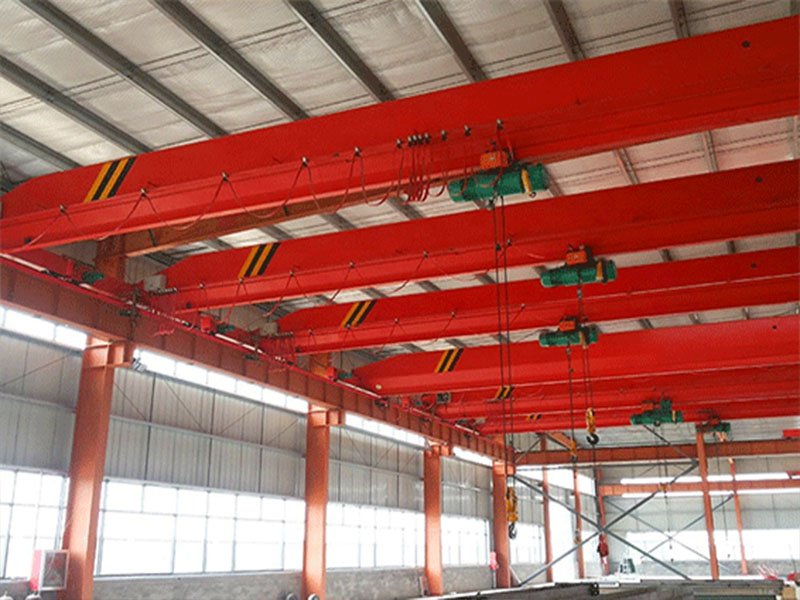

Hoist Overhead Crane For Sale

Hoist Overhead Crane For Sale

LD Traditional Overhead Hoist Crane Single Girder has the advantages of compact appearance, light weight, low wheel pressure, stable running speed, low noise, and convenient installation and maintenance. Get a free quote.

Learn More                            Get a Quote

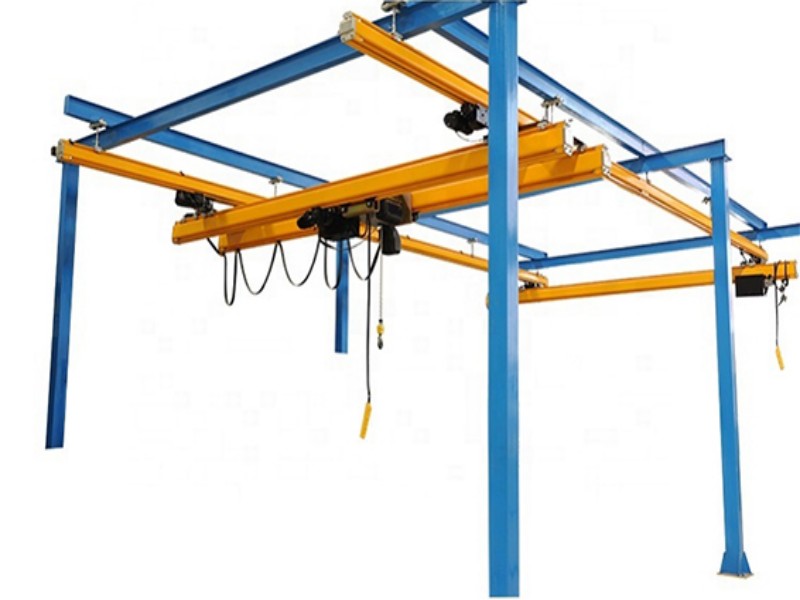

Monorail Suspension Overhead Bridge Crane System

Monorail Suspension Overhead Bridge Crane System

The KBK suspended monorail crane in the KBK light crane system can be tailored to your specific needs for linear aerial handling. By assembling different options, unique advantages can be demonstrated.

Learn More                            Get a Quote

Hot Selling Tonnage Of Singler Girder Overhead Cranes

Overhead Cranes can be categorized based on their lifting capacity into light, medium, and heavy cranes. Different lifting capacities cater to various scales and types of industrial projects, allowing customers to select the appropriate crane based on their load requirements.

Overhead Crane 10 Ton

Overhead Crane 10 Ton

Single Girder Bridge Crane - Sinokocrane is working on the 10 ton European single girder overhead cranes production for more than 10 years and leads the crane industry trends with advanced vision.

Learn More                            Get a Quote
15 ton Overhead Crane

15 ton Overhead Crane

Sinoko 15 Ton Overhead Crane adopts reliable motors and accessories to ensure high quality and safe work. Visit us today for more information.

Learn More                            Get a Quote
Overhead Crane 20 Ton

Overhead Crane 20 Ton

Discover our meticulously designed 20 ton overhead crane, perfect for heavy-duty lifting in steel, metallurgy, and building materials industries. With a robust steel frame, precise fabrication, and advanced welding techniques, our crane delivers superior

Learn More                            Get a Quote

Overhead Crane Price

An overhead crane price can vary widely based on several factors, including its capacity, span, lifting height, features, and the specific requirements of the application. Additionally, the cost can be influenced by the manufacturer, geographic location, and any customization needed for the crane.

Single girder overhead crane prices:
Crane ModelSpan RangePrice Range
AQ-LD 5 ~ 20 ton overhead crane7.5m ~ 31.5m3000 USD ~ 13,000 USD
AQ-HD 5 ~ 20 ton overhead crane7.5m ~ 22.5m6600 USD ~ 24,000 USD
AQ-LX 5 ~ 10 ton crane7.5m ~ 22.5m3000 USD ~ 7900 USD
It’s important to note that these are rough estimates, and actual prices can vary. Customizations, such as special lifting attachments, automation features, or specific industry requirements, can add to the overall cost. Additionally, the installation costs, including the cost of the runway structure, electrical work, and any modifications to the facility, should be considered.


Get a Free Quote

Advantages of Single Girder Overhead Crane

  • Low headroom

  • Smart driving, higher efficiency

  • Stepless control trolley

  • Hardened gear

  • IP55/H Insulation

  • Heavy duty motor, 60%ED rating

  • Over heating, overloading protect

  • Electromagnetic disk brake

  • Super drum, longer rope lifetime

  • DIN 34CrMo4 hook, class T

  • Maintenance free

Why Choose Sinokocranes?

When you are looking for a reliable overhead crane manufacturer and exporter, Sinokocranes can be your ideal choice! Our company specializes in providing overhead crane solutions to suit different work needs and we also provide customized cranes to meet special requirements.

Reliable Products

We specialize in the design and manufacture of overhead cranes for many years and focus on crane quality rather than quantity. Our cranes are produced with high quality components so that they can offer trouble-free operation for decades. We make continuous improvement on our crane products to make sure they can meet the growing demand for lifting and transferring.

Excellent Service

We not only manufacture and sell the cranes worldwide, but offer a full range of service, including pre-sale service, in-sale service and after-sales service; for example, we offer both online and on-site installation and commissioning guidance of the crane. Our service is available at 24/7.

Factory Price

We have factory, our overhead cranes are well-configured with competitive prices. Our production license covers all kinds of cranes and other lifting equipment. Welcome to visit Sinoko factory at any time you want!

Sinokocranes aims to build company competitiveness with high cost-effective solution, excellent service, fast delivery and convenient installation.


Raw material area




Sinoko Assembly area




Sinoko Shipping Area




FAQs

How long is the delivery time generally?

Generally the crane delivery time is  20 to 40 working days, electric hoist lead time is 15 working days, jib crane is about 20 working days.The delivery time will be longer if the product is customized according to special requirements.

Can you provide one or two years wearing parts?
Yes, we will provide one year of wearing parts for free.
What kind of certification did you pass? Do you have ISO certificate?

We have ISO quality management system certificate, our products have passed CE certification, our crane products can enter the EU market;

In addition, we can do third-party inspection or certification according to your requirement;

Our marine winches can do DNV, ABS, BV etc. Classification Society Certification.

How is your product packed to avoid damages?

The steel structure of our products is generally packaged with plastic film to protect it from rain.

Electrical and other smaller parts are packed in standard export-use non-fumigation wooden boxes or plywood boxes, and are reinforced with iron nails or steel plates to prevent damage in collisions.

How do you provide after-sales service?

We can provide 7*24 online service, and engineers can provide remote guidance.

If the problem cannot be solved, we can send an engineer to the site for the installation.

What is the difference between your crane and the European standard crane?

We have two types of cranes with different standards, the Chinese national standard and the European standard. According to the requirements of different clients, we provide different crane products.

The Chinese standard cranes are widely used and cost-effective, while the European standard ones are maintenance-free products, and easy to operate. They are more convenient, better performance, and can save maintenance costs.

What is the working principle of anti-sway product?

The frequency converter is used to adjust the speed of each mechanism to reduce the influence of inertia, so that the smoothness of crane operation and lifting can be greatly improved.

What brand do you choose for your electrical appliances?

For export products, we usually choose the brands such as Schneider, Siemens, ABB, etc. The quality of these brands is guaranteed.

It is easy to find after-sales service centers in the local area, and replacement parts are easy to purchase.

What is the crane work duty?

The work duty of the crane is determined by the load status and the number of cycles. It is not that the larger the lifting capacity, the higher the working level.

The more frequent the use, the closer the lifting weight is to the rated lifting capacity, the higher the working level.

How to guarantee the crane’s life span in humidity environment?

In order to ensure the corrosion resistance of the crane, we will perform the following treatments:

Firstly, for the steel plate of the crane, we will make shot blasting and spray epoxy zinc-rich primer painting after cutting.

Secondly, there will be primer coat, middle coat, finish coat, three layers painting totally. All of them have high corrosion resistance, strong adhesion features, and a total thickness of 105 micron to ensure that it reaches the ISO standard derusting grade Sa2.

Finally, we will design rain cover for motors, electrical appliances, and lifting parts to avoid the entry of rainwater.
