Trolley cable dragging system
Consisting of flexible flat cable,cable trolleys,C channel
Flat cable with good flexibility
Aerial socket connecting,one to one correspondence,convenience ofconnection
maintenance free,long operating life.
Lifting Trolley Travelling Rail
Steel material China Q345B standard,hot-rolled flat steel,good shape.Light weight
Large contact rate between wheels and rail
Less tolerance oftolley span,stable trolley running
Security monitoring unit(Optional)
Calculating lifting mechanism remaining life Cumulative lifting time,Number of overload,Motor starttimes,lifting motor overheating protection and alarm,
Overload protection and alarm
Thickness of the brake pad alarm
Safe Bus Bar
anti-coFrosion,closed insulation type
High conductiviry,low volatge drop
light weight,nstallation convenience,maintenance free
Working temperature:-30°C~+60℃
High sliding speed for curent collector to ensure continuous power supply
Electric control box
surtace by the ant-corrosion treatnent
reasonable layout,easy maintenance
protection class IP55
Ambient temperature:<45℃,humidity<90%

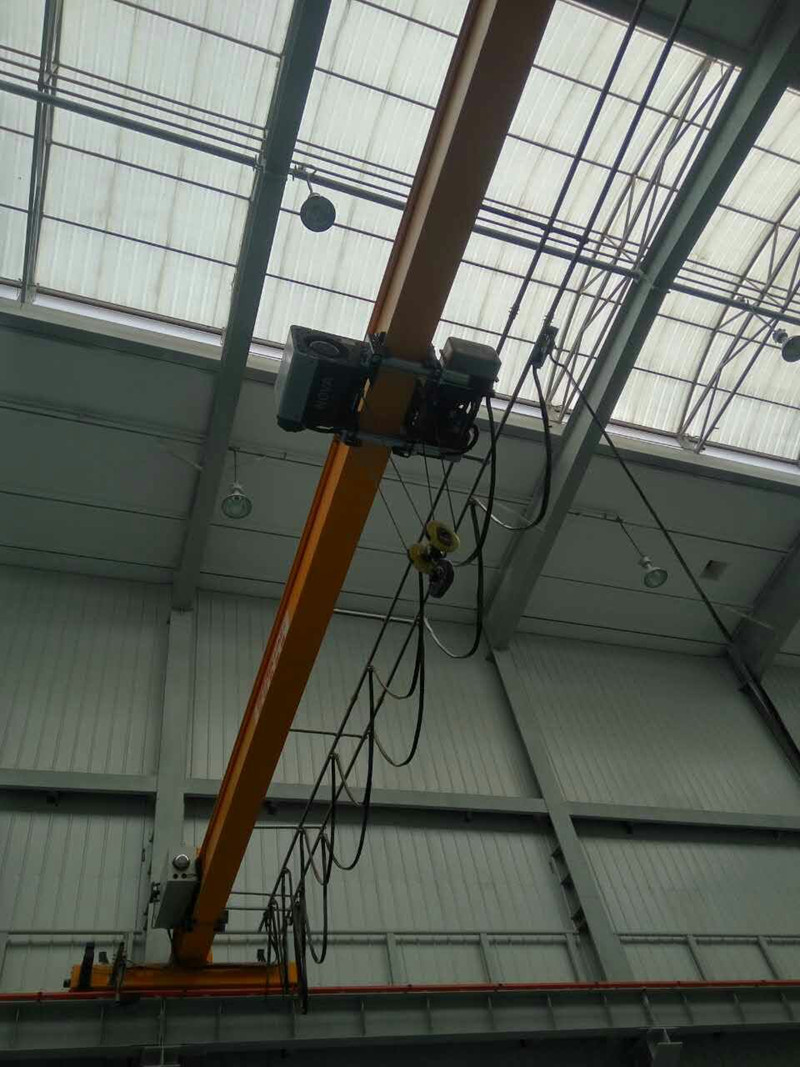

European electric single-girder crane
(1) long service life, high safety, never falling off.
(2) small current, small size, strong output power, high frequency use.
(3) beautiful appearance of the product, strong anti-corrosion.
(4) The product runs smoothly, heavy objects will not shake.
(5) Reduce factory height, save construction cost, increase effective work area and reduce customer investment.
(6) low noise, energy saving pipe environmental protection, light weight, safe and comfortable handling.
Specification
| Description | Specification | Remark | |

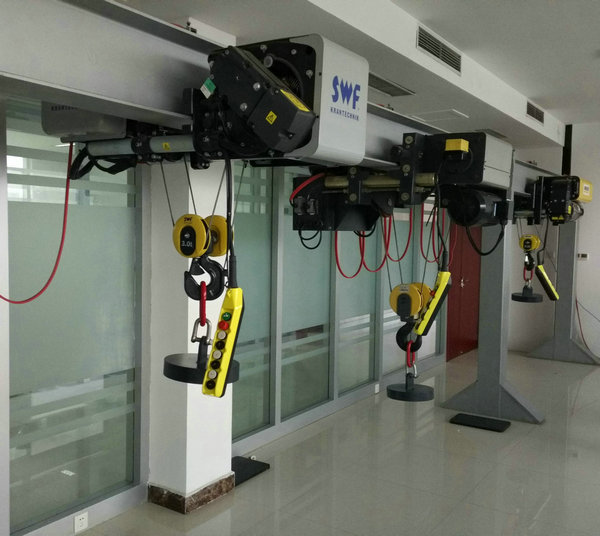

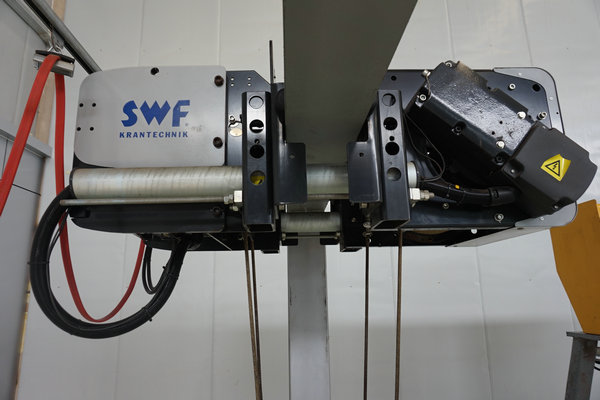

| Name | SWF hoist crane | Core parts orginally imported | |
| Capacity | 10 ton | ||
| Max.testing load | 10*1.25ton | 1.25times rated capacity | |
| Speed | Lifting | 3.2/0.5m/min | Double speed |
| Cross travelling | 5-20m/min | Shneider Frequency converter control | |
| Motor Power | Lifting | 9/1.4 KW | SWF Brand three in one motor |
| Cross travelling | 0.3KW*4 | SWF Brand three in one motor | |
| Control method | Pendent line control &, Wireless romote control | GG Brand from Italy& SAGA1 Taiwan | |
Insulation class | F class | ||
| Protection class | IP55 | ||
| Working duty | ISO M5 | FEM3M | |
| Dead weight | 1000kg | ||
CASE
Based on their intended use, overhead cranes can be classified into general-purpose cranes, steel mill cranes, and explosion-proof cranes. Each type is designed with specific working environments and load requirements in mind, ensuring safety and efficiency.
Installation of QZ-Type Grab Bucket Bridge Crane Project Case
The Sinoko QZ-Type Grab Bucket Bridge Crane was specially designed for a Brazilian client as a grab bucket crane, which significantly improved the client's work efficiency and received unanimous praise from the client.
Learn More Get a Quote
Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case
The Sinoko crane, a 5-ton bridge crane tailor-made for a Russian customer's auto repair shop, has helped the customer solve the problem of lifting and transportation, improved the customer's work efficiency, and saved the customer's work costs.
Learn More Get a Quote
3× 5T European-Style Single-Girder Cranes for Kenyan Sugar Refinery
Sinoko cranes has designed three 5-ton bridge cranes for Kenyan customers, which have solved their problems. Come and contact Sinoko cranes to solve your lifting problems.
Learn More Get a QuoteFAQs
A: Only 300mm overhead clearance required - 30% less than traditional cranes. Ideal for workshops with 8m+ ceiling heights.
A: Up to 31.5m span using Q345B steel beams with CNC-cut camber curves. Reduces deflection to <1/800 of span length.
A: Optional ATEX Zone 22 package includes: • Flameproof motors • Anti-static wheels • Gas detection auto-shutdown
A: Yes, A5 duty rating supports continuous operation with: • 50,000+ cycle rated ZDY-series motors • Hardened surface gears • Disc brakes with thermal protection
A: Triple protection system: Dual-limit switches (upper/lower) ±3% accuracy overload protector Emergency stop on all controls
A: Wireless remote control offers: • ±10mm positioning accuracy • 100m operating range • IP65 waterproof transmitter
