Installation of QZ-Type Grab Bucket Bridge Crane Project Case

DATE : June23, 2025
Share :


Project Background

Client: Leading ferroalloy processing plant in São Paulo, Brazil

Challenge: Needed to replace aging equipment for handling bulk manganese ore (density: 3.7 t/m³). Existing cranes caused 15% material spillage and couldn,t operate in Brazil,s tropical climate (-20°C to 40°C temperature swings).

Objective: Install a 25T QZ-type grab bucket bridge crane with:

  • 5% material loss during transfer

  • 24/7 operation capability

  • Resistance to coastal humidity and thermal stress

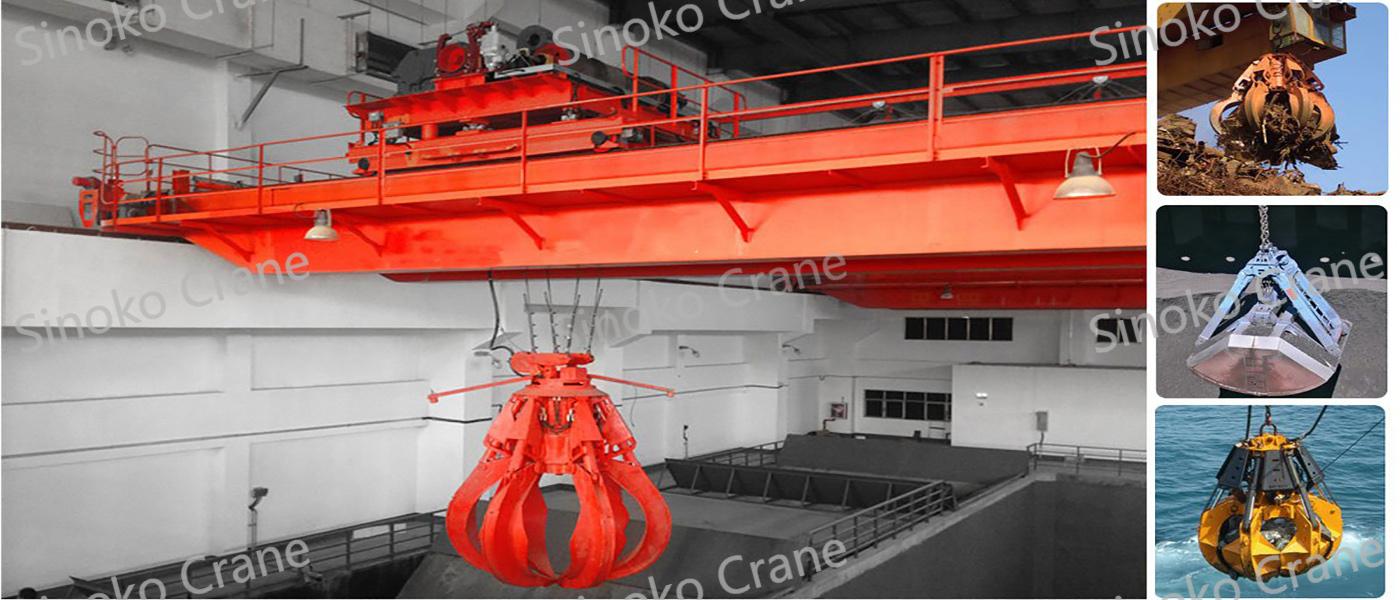

Key Features of Sinoko QZ Grab Bucket Bridge Crane

Technical Specifications

ParameterValueDesign Rationale

Capacit

25TonsOptimized for manganese ore hoppers

Span

31.5m
Covers twin processing lines
Lifting Height20mClears 18m-high stockpiles
Duty ClassA6 (heavy cyclic)Sustains 150 cycles/hr
Power Supply380V/50Hz/3PhMatches Brazilian industrial grid
Ambient Temperature-20°C to +40°CTropical climate adaptation

Engineering Innovations

  • Dual-Material Grab Bucket:

  • Hybrid design (dragline + slipper) prevents ore leakage

  • Abrasion-resistant steel for 10,000+ cycles

  • Thermal Compensation System:

  • Expansion joints in runway beams accommodate 60°C delta-T

  • Lubrication reservoirs prevent cold-start seizure

  • IP55/C5-M Corrosion Protection:

  • Epoxy-painted structural components

  • Stainless-steel electrical enclosures

  • Busbar Power Delivery System:

  • Eliminates cable drag for 31.5m traverse

  • 99.5% power transmission efficiency


Implementation Process

Sinoko crane offers a complete service package for customers, covering everything from supply and installation to training.

Phase 1: Site Adaptation

  • Challenge: Coastal salt corrosion degraded existing runways

  • Solution:

  • Installed galvanized steel runway beams (ISO 1461)

  • Laser-aligned tracks to ±2mm flatness tolerance

  • Implemented cathodic protection against electrolysis

Phase 2: Crane Installation & Commissioning

Milestone

Key ActivitiesRisk Control
StructuralBolt-free main beam connections

Reduced vibration-induced loosening

ElectricalVFD-controlled winch trolleySoft-start prevents ore spillage
TestingLoad test at 31.5t (125% capacity)Strain gauges verified <0.05% deflection
TrainingPortuguese-language VR safety simulationsReduced operator error by 40%

Project Outcomes

The customer was extremely satisfied with the Sinoko crane. After using it for one year, they provided the following feedback:

Efficiency:

  • Loading cycle time reduced from 24 to 15 minutes

  • Throughput increased to 280 t/h (22% gain)

Reliability:

  • Zero breakdowns in first 8 months of operation

  • 98.7% uptime vs. former system's 76%

Environmental:

  • Ore spillage cut to 3.8% (meeting ISO 14001)

  • Energy consumption lowered by 18% via regenerative VFDs

Client Benefits:

  • Cost Savings: $310,000/year in reduced ore loss & maintenance

  • Safety: 100% compliance with NR-12 Brazilian machinery regulations

Application Areas

The Sinoko Grab Bucket Bridge Crane has a wide range of applications. It is also applicable to the following industries:

Sector

Material HandlingValue Proposition

Agriculture

Grain/soybean silos

Dust-proof electrical systems

Port Terminals

Coal/fertilizer bulk carriers

20m lifting height for ship holds

Recycling

Scrap metal processing

Abrasion-resistant bucket design

Sinoko Crane has been deeply involved in the crane industry and has received numerous positive feedbacks from customers. We will always keep the customers' interests in mind and provide them with the most satisfactory solutions and products!
