I. Overview of Hydraulic Grab Scrap Handling Crane for Steel Scrap Yard

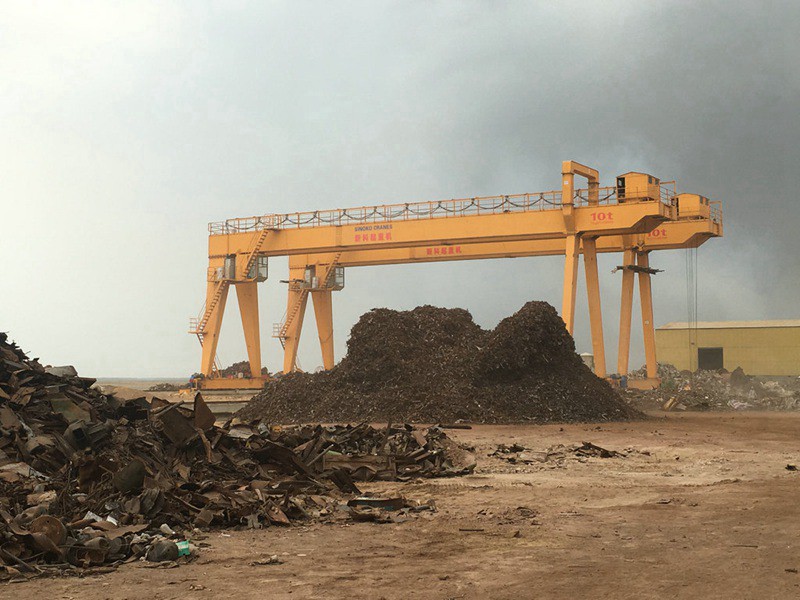

This is a double girder type gantry crane for outdoor scrap yard use. In many steel plants, the raw material are steel scrap such as HMS and LMS. These raw material need to be processed to be more regular size or shape before being charged into furnace. So this type of gantry crane is used for scrap handling in the scrap yard.

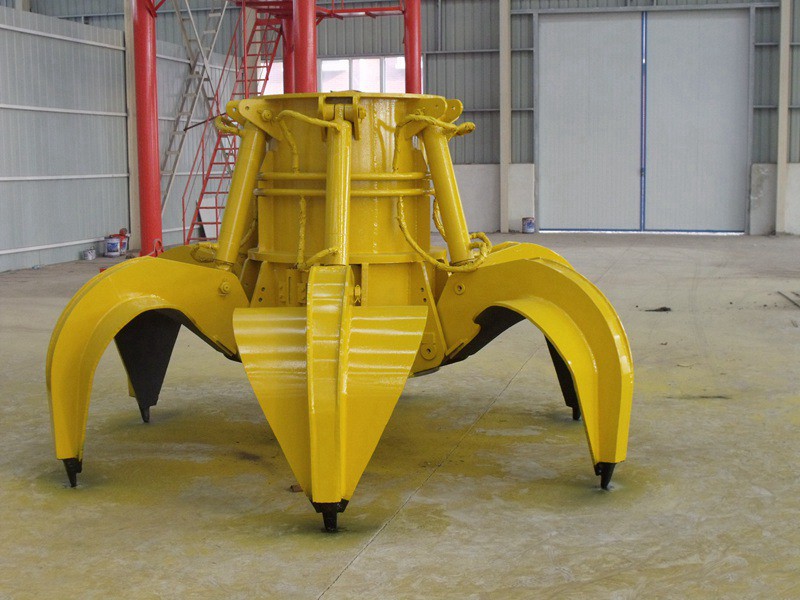

The hydraulic grab is specialized in handling Block or irregular shape of bulk materials, coke, pig iron, steel scrap, slag and so on. Especially popular for loading and unloading bulk materials for train. This type hydraulic grab is widely applicate for Wharf, steel plant. Design for working with tower crane, loading and unloading crane and all kinds industry cranes.
Routine grab bucket volume: 2.0 m 3 ~4.0m 3
Motor Power: 28 kW~45 kW
II. Features of Hydraulic Grab Scrap Handling Crane for Steel Scrap Yard:
Mechanical | No. | Electrical | |
1 | Limit Switch | 1 | Short-circuit protection |
2 | Interlock protection device | 2 | Uner-voltage protection |
3 | Buffer | 3 | Zero protection |
4 | Rail tongs, Anchor device | 4 | Motor overhead protection |
5 | Rail clear plate | 5 | Emergency stop system |
6 | Protective cover | 6 | Current overhead protection |
7 | Bus bar preventer plate | 7 | Security chain protection |
8 | Anti-collision device | 8 | Ground protection |
III. Specification of Hydraulic Grab Scrap Handling Crane for Steel Scrap Yard
Lifting Capacity (T) | 5T | 10T | 16T | 20T | ||
Max Lifting Height (M) | 20T | 18T | 22T | 26T | ||
Span(M) | 10.5-31.5 | |||||
Working System | A8 | |||||
Speed (M/Min) | Trolley | Hoisting | 40.1 | 40.7 | 41.8 | 48.6 |
Travelling | 44.6 | 45.7 | 43.2 | 43.2 | ||
Bridge travelling | 93.7-114.4 | 112.5-101 | 98-87.3 | 87.3 | ||
Weight (T) | Trolley | 5.2/5.9 | 8.2/9.1 | 14.8/15.9 | 19.3/20.4 | |
Total | Indoor | 19.9-41.3 | 26.5-50.4 | 47.3-67.9 | 56.1-75.6 | |
Outdoor | 20.7-42.1 | 27.4-51.2 | 48.5-69 | 57.3-76.8 | ||
Grab | Volume (CUM) | 2.5-0.75 | 5-1.5 | 8-2.5 | 10--3 | |
Dead weight (KG) | 2632-2546 | 4800-4793 | 7841-8305 | 9812-10123 | ||
Rail recommended | 43kg/m, QU70 | |||||
Power Source | 3Phase AC 380V 50HZ (As your demand) | |||||
