Grab Gantry Crane

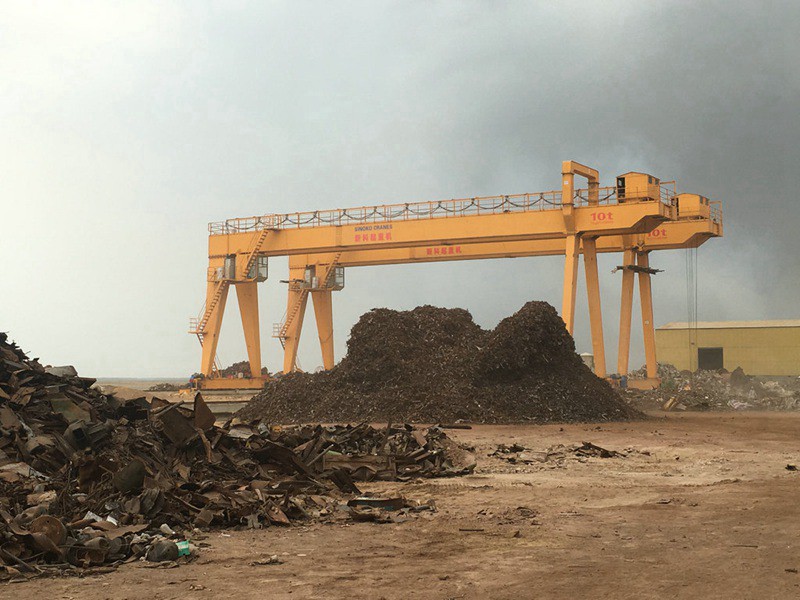

Sinoko grab gantry crane for steel mill is a type of crane that is specifically designed for the handling of bulk materials in a steel mill environment. These cranes are typically used for the loading and unloading of raw materials such as scrap metal, pig iron, and other similar materials.
Hydraulic grab for gantry crane its structure is divided into single cable, double cable, four cable, electric, four types. Multiple jaw can respectively closed according to the materials shape and size, multiple jaw quantity can be according to grab materials and users need to design four disc to eight disc.

Multi peel hydraulic grab gantry crane is an ideal crane with high efficiency, a heavy duty working system and full functions

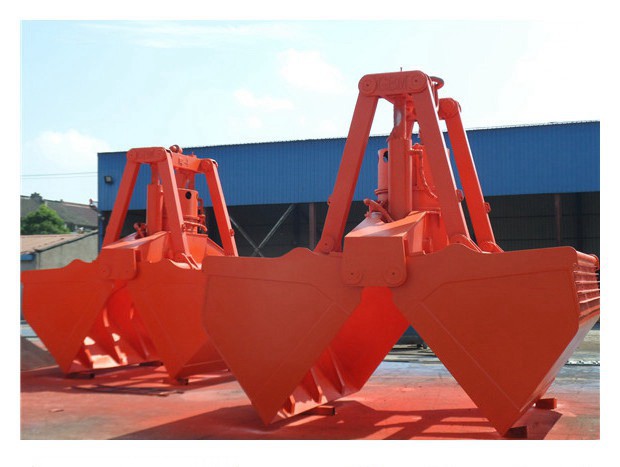

grab for crane

Main structure of multi peel hydraulic grab gantry crane

1. Gantry crane structure frame

2. Supporting legs installed with the two main beams

3. Crab traveling mechanism

4. Control system

5. Electric systems


Different types of multi peel hydraulic grab gantry crane

Multi peel hydraulic grab for gantry crane its structure is divided into single cable, double cable, four cable , electric, four types. Multiple jaw can respectively closed according to the material’s shape and size, multiple jaw quantity can be according to grab materials and users need to design four disc to eight disc.



Technical parameters of multi peel hydraulic grab gantry crane

Mechanism description

Unit

Specification

Rated capacity

ton

5-10

Max. lifting height

m

10-18

Span

m

16-35

Working environment temperature

-20~40

Speed

Traveling Speed

Cab

m/min

49.4-50

Trolley

30.5-47

Lifting Speed

37-41

Working system



A5

Power Source



3-Phase 50HZ 380V


VI. Inquiry information of multi peel hydraulic grab gantry crane

1. Rated crane capacity: __ton

2. Crane span: __m

3. Max. lifting height: __m

4. Main grabbing material

5. Required grab volume

6. Voltage supply
