Automotive Repair Facility in Russia 5 Ton Workshop Bridge Crane Project Case

DATE : June30, 2025
Share :

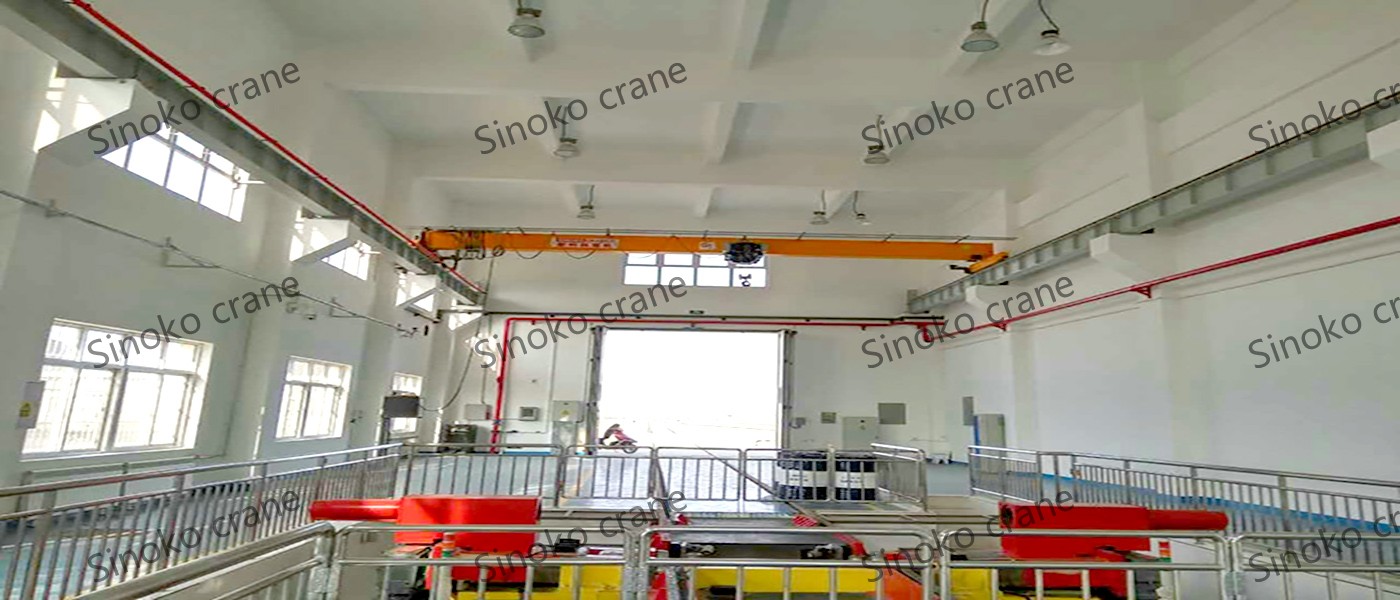

overhead crane.jpg

Project Background

Client: Major automotive service center in Moscow, Russia

Core Challenge:

Manual handling of heavy engine blocks, transmissions, and chassis components caused workflow bottlenecks (avg. 45-min delay per repair job) and safety risks.

The existing chain cranes lack accuracy in lifting parts (such as electric vehicle battery packs), which subsequently leads to equipment damage.

The harsh Russian winter (with temperatures dropping to minus 25 degrees Celsius) causes the ordinary crane lubricants to freeze, thus resulting in equipment shutdown.

Solution Objective:

Deploy a 5T Overhead Bridge Crane with cold-optimized components to streamline automotive repair operations. Technical specifications:

ParameterValueRationale
Capacity5tonsHandles engines, transmissions, and EV batteries
Span20mCovers dual vehicle bays + parts storage
Lifting Height10mClears hydraulic lifts and stacked inventory
Duty ClassM3-M8 (moderate to heavy)Supports 16-hr/day operation
Hoist MechanismWire rope hoistPrecise vertical control (±2mm)

Power Supply

380V/50Hz/3PhMatches Russian industrial grid
Control SystemPendant + wireless remoteOperator mobility in confined spaces

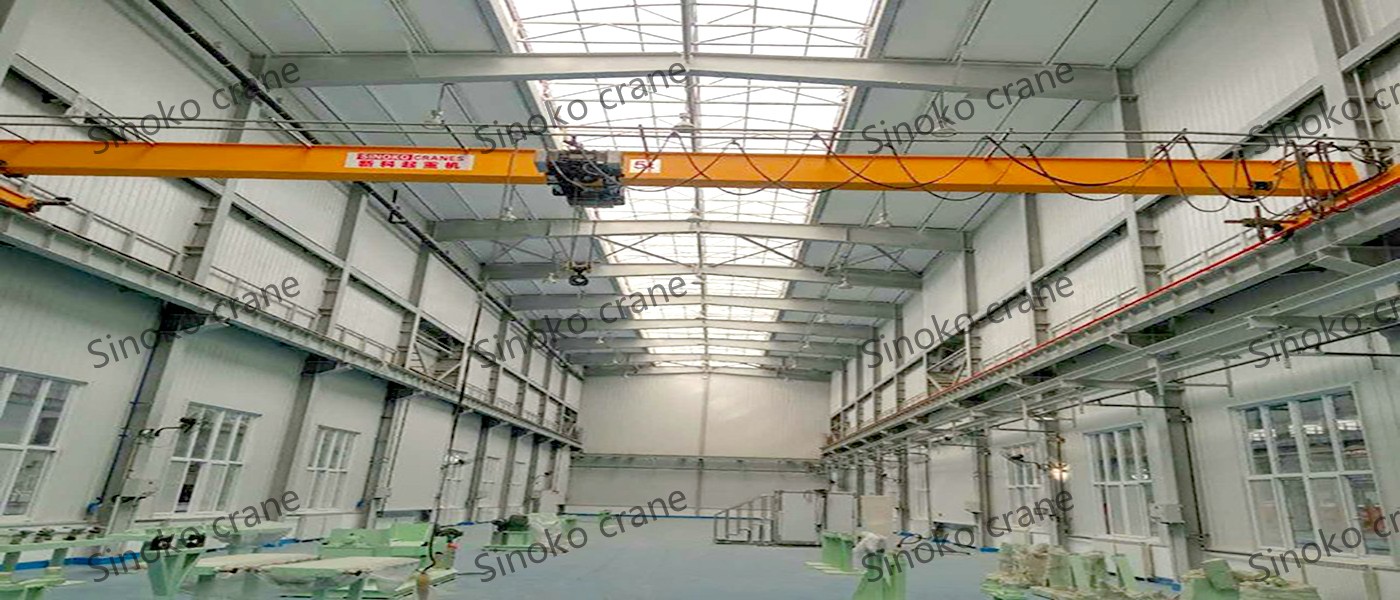

overhead crane1.jpg

The Features Of Sinoko Bridge Cranes

Automotive Repair-Specific Engineering

  • Cold-resistant wire rope hoist:

It uses steel cables resistant to severe cold (-30°C). This prevents the cables from freezing and breaking. The surface is also coated with an anti-icing layer to prevent moisture absorption.

Dual braking system (mechanical braking + electromagnetic braking) ensures the safety of the load in case of power failure.

  • Thermal compensation runway beam:

It uses low-alloy steel beams and is equipped with expansion joints, which can adapt to temperature changes ranging from -25°C to +40°C and prevent track misalignment.

  • Precision Load Positioning:

VFD-controlled hoisting (0.05–8 m/min speed range) enables millimeter-accurate placement of delicate components (e.g., sensors, hybrid powertrains).

  • Space-Optimized Design:

Low-headroom trolley maximizes vertical clearance (10m lift height in 12m-tall workshop).

Collision avoidance sensors detect overhead obstacles (e.g., lighting rigs, ventilation ducts).

Implementation Process

From design to installation and commissioning, the Sinoko cranes took a total of one and a half months. Below is a detailed introduction to the construction process.

Phase 1: Design & Site Adaptation

Challenge

Solution
Limited structural headroomEngineered compact girder profile (height: 450mm)
-25°C winter hardeningSpecified Arctic-grade lubricants (ISO VG 32)
Voltage fluctuations (360410V)Installed voltage stabilizers (±5% tolerance)

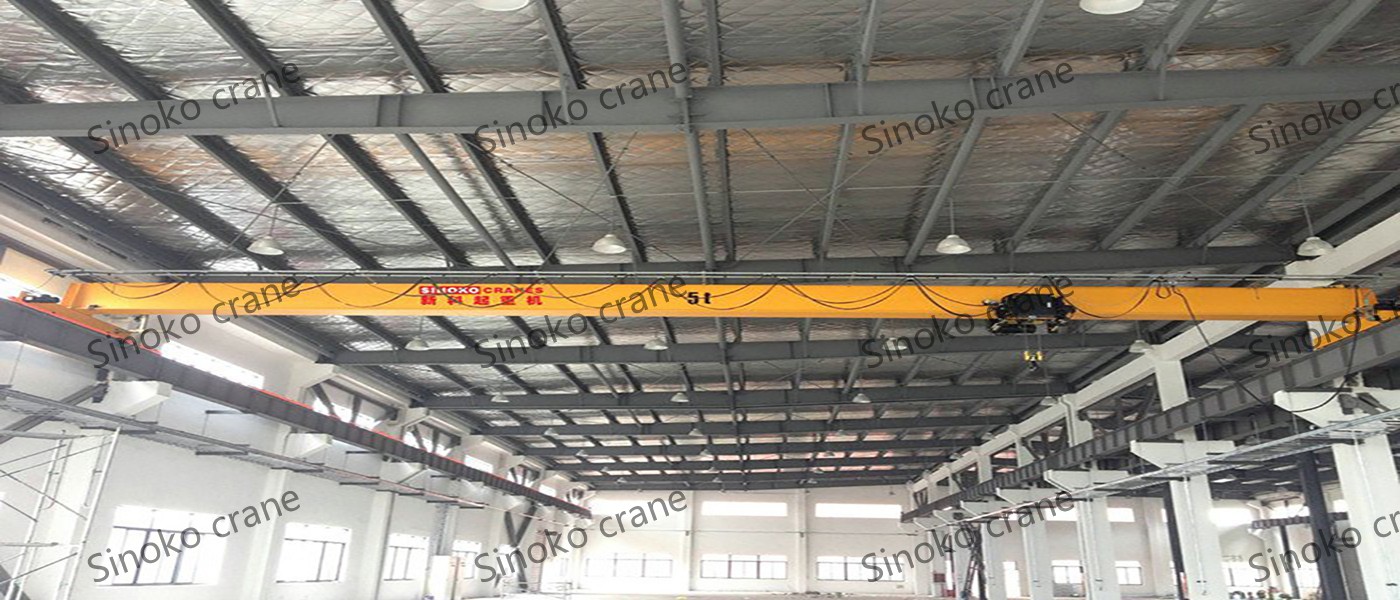

overhead crane2.jpg

Phase 2: Installation & Commissioning

  • Structural Assembly:

Bolt-free splice connections between runway beams ensured rigidity in temperature swings.

  • Electrical Integration:

IP55-rated enclosures protected components from dust/oil mist.

  • Performance Validation:

6.25T load test (125% capacity) with ≤3mm girder deflection.

Cold-start test at -20°C: Hoist response time <2 seconds.

  • Staff Training:

Russian-language VR simulations for emergency procedures and maintenance.

Project Outcomes

After the customer had used the Sinoko crane for one year, the company specially sent an engineer to visit the customer again. During the conversation with the customer, we found that this crane had greatly eased their work.

Operational Performance Metrics

KPI

Pre-InstallPost-InstallImprovement
Component handling time18 min6 min-67%
Equipment damage incidents4/month0100% reduction
Energy consumption2.1 kWh/cycle1.5 kWh/cycle-29%
Downtime (winter)12 days/yr0.5 days/yr-96%

Strategic Benefits

  • Safety: Compliance with GOST R ISO 12485-2013 (Russian crane safety standards).

  • ROI: 11-month payback via reduced labor costs ($78k/yr saved).

  • Capacity: Throughput increased to 32 vehicles/day (previously 22).

Application Areas

In addition, this crane can also be used in the following fields:

IndustryUse CaseTechnical Adaptation
Aerospace MROAircraft component handlingCleanroom-compatible enclosed hoist
Heavy EquipmentMining machinery maintenanceM8 duty rating for continuous cycles
WarehousingSpare parts logistics20m span covering 800m² floor area

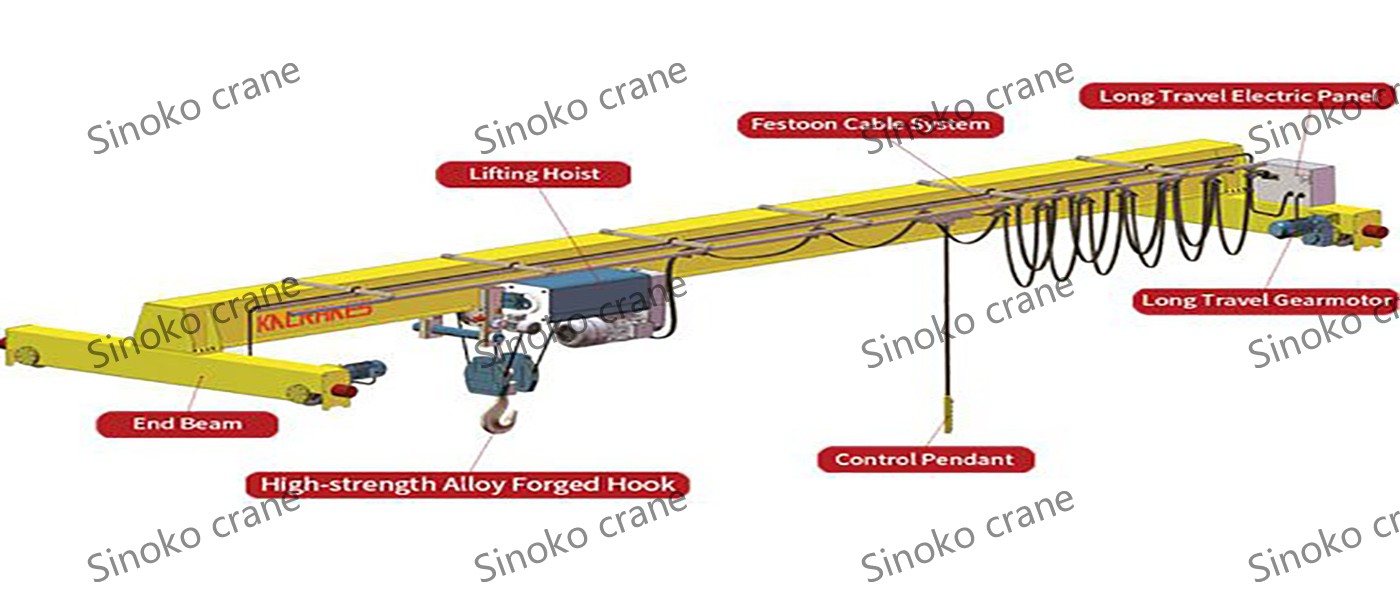

single girder overhead crane.jpg

Key Achievement: The Overhead crane's thermo-synchronous control system automatically adjusts hoist speed in sub-zero conditions, preventing cable slippage during critical lifts. This resulted in zero cold-weather failures in two winter seasons,Sinoko Crane has won the trust of customers through its outstanding technology, prompting orders from 3 additional service centers in St. Petersburg.
