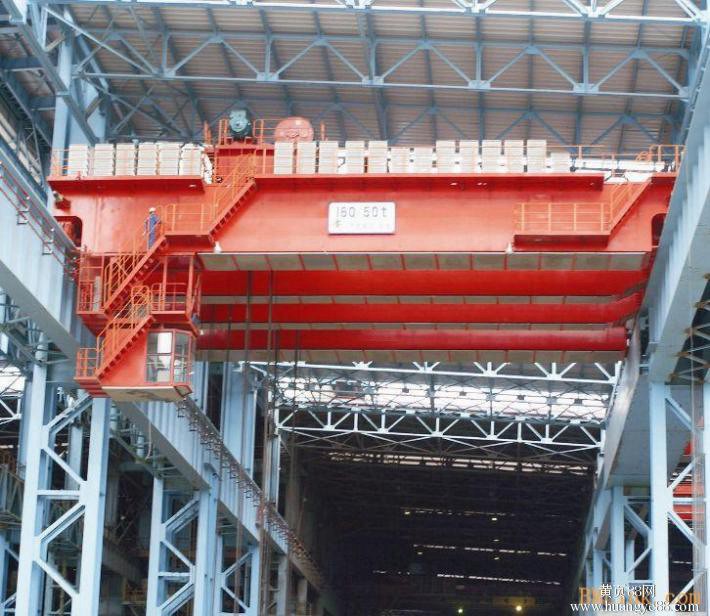

Steel mill ladle crane is also called foundry crane, it is a bridge crane used in steel mills for cargo handling and loading and unloading, mainly consists of main beam, hook trolley, crane traveling mechanism, cabin and electric controlling system, etc.

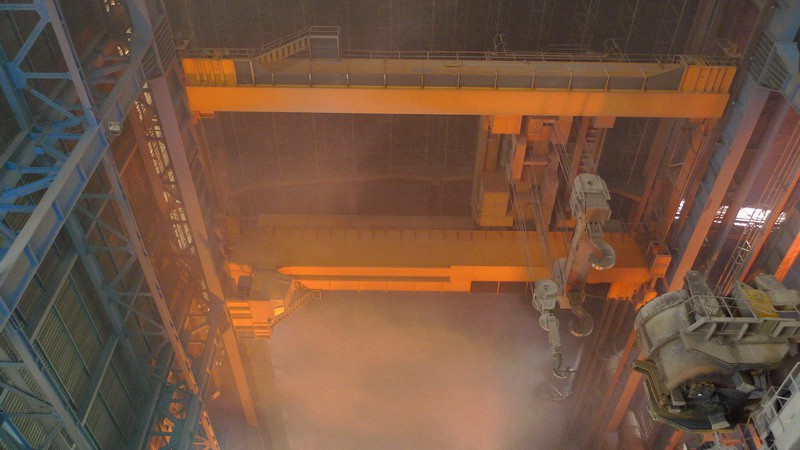

Ladle crane is one of the main equipment in the continuous casting technology of steel making. It is mainly used transfer the pouring melted iron to the appointed place, and the thermal-protective coating is added at the bottom of the main girder. The place where molten nonmetal material and red-hot solid metal is lifted. The casting overhead crane are heavy duty for 20-24hours working.
To ensure crane safe operation, limit switches are equipped on each mechanism. When mechanism travels to pointed position, the limit switch is triggered. The power is cut off and brake is closed, travelling stopped. For convenience of operator and maintainer, passageway of 500mm are required between cabin and bridge beam.
Our cranes are designed strictly according to China Crane Design Regulations. For ladle crane, its utilize class is U6, that is, the total working cycle above 1x106 times. Each mechanism working class must be higher than M6.
1. Power distribution protection
2. Short-circuit protection
3. Overload protection
4. No-voltage protection
5. Zero position protection
6. Lifting limit protection
7. Travelling limit protection
8. Emergency power off protection
9. Over speed switch
Lifting Capacity | T | 125/32 | 140/32 | 160/32 | 180/50 | 200/50 | 225/65 | 240/80 | 280/80 | 320/80 | |
Span | m | 19 | 19 | 27 | 28.5 | 28 | 27 | 22 | 22 | 24.5 | |
Speed | Main Hook | m/min | 7.8 | 9.8 | 7.5 | 6 | 11 | 7 | 12 | 7.5 | 7.6 |
Aux. Hook | 9.7 | 12 | 10 | 10 | 11 | 9.6 | 10 | 10 | 9.7 | ||
Main Trolley | 36 | 43.5 | 40 | 41 | 41 | 35 | 40 | 29 | 38 | ||
Aux. Trolley | 37.5 | 43.5 | 38 | 38 | 39.5 | 38 | 40 | 39 | 39 | ||
Traveling of Crane | 73 | 84 | 80 | 78 | 84 | 80 | 80 | 58 | 76 | ||
Max wheel pressure | KN | 505 | 535 | 485 | 525 | 530 | 550 | 545 | 735 | 750 | |
Steel track recommended | QU120 | ||||||||||
Operational Model | Cabin; remote control | ||||||||||
Working class | A7 or A8 ;FEM 4m | ||||||||||
Power Supply | Three-phase A.C. 380V, 50Hz or your requirement | ||||||||||
Customer feedback of Steel Mill Ladle Crane
Sinoko crane has provided 320 sets of exclusive customized solutions for steel mills. Sinoko customer feedback shows that the performance of steel mill ladle crane is stable, reliable, easy to operate, safe and reliable, and is highly praised by customers.With the continuous development of technology, Sinoko ladle crane will be more perfect, safer and more reliable, and can better meet the needs of customers. Get a free solutions.
