Crane Hooks

We are Specialists in crane hooks for different using purpose, We can manufacture laminated hooks up to 600t.

Laminated hook plated are leveled, flame cut, predrilled and then tack welded together.
Hook Plate holes are countersunk.
Plate lamination are riveted together using a special air powered riveting machine.
Hook plated are riveted together. Rivets are placed in an electric heater until red hot.
Hot rivets are inserted from bottom side.
Rivets are punched using the riveting machine
Properly punched rivet

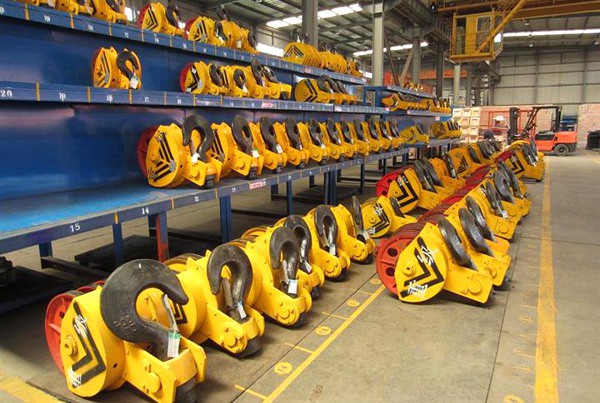

Also we could make normal overhead crane or gantry crane hooks :

Single hook: 5t/6t/10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t

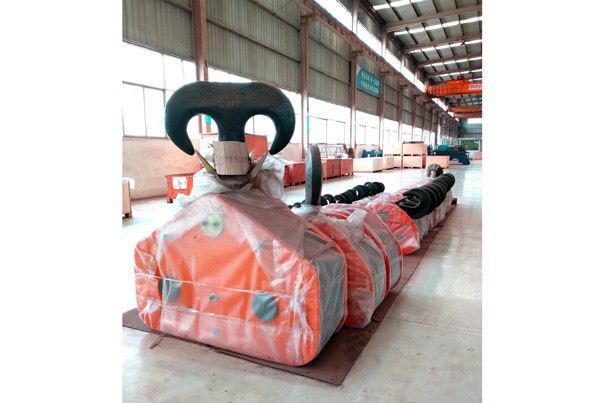

Double hook: 10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t.

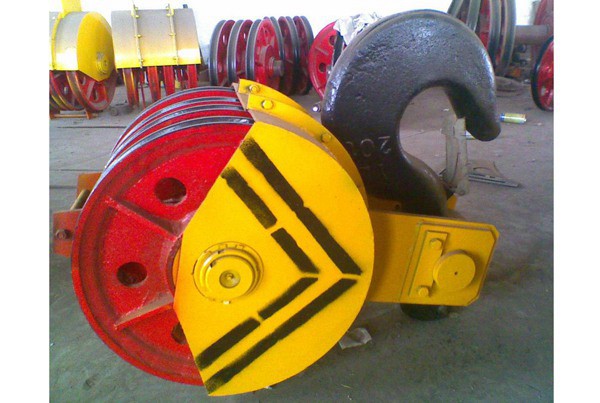

Block model: 3.2t/ 5t/10t/16t/20t/25t/32t/50t/75t/100t/200t.

Laminated Hooks:

1) Laminated, riveted and welded steel hooks

2) Hardened steel pins

3) Forged steel or fabricated chase blocks

4) Removable war strips and bronze bushings;


Normal Overhead Crane or Gantry Crane Hooks :

Capacity: 1- 600t

Pulley: 1- 12 pulleys,

Usage: Used on overhead, gantry cranes and all kinds hoist,

Strength grade: M, P, S, T, V grade

M grade with DG20, or DG20Mn

P grade with DG20Mn

S grade with DG34CrMo

T grade below 40t with DG34CrMo, more than 40t with DG34CrNiMo or DG30Cr2Ni2Mo

V grade below 40t with DG34CrNiMo or DG30Cr2Ni2Mo, more than 40t with DG30Cr2Ni2Mo.

crane hooks 3D


Type
Dimension (mm)
Wire rope
Dead Weight
A
B
H
E
G
L
L1
C
U
фD
Dia.(mm)
Nos
kgs
3.2T
637
338
380
245
130
222
\
50
65
250
11-14
4
80
5T
846
382
480
320
236
\
184
65
85
350
11-14
4
100
10T
1110
370
460
420
240
\
93
90
120
250
11-14
6
200
16T
1277
512
660
440
285
\
179
115
150
300
14-20
6
330
20T
1440
516
660
520
335
134
94
130
170
500
16-20
8
460
32T
1730
596
780
610
420
154
108
160
210
610
18-22
8
845
50T
2085
724
880
720
510
161
108
205
270
610
20-22
10
1500
75T
2335
970
1012
930
600
185
135
250
320
500
26-32
10
2500
100T
3130
1360
1162
1100
955
350
131
270
355
800
28-34
12
4200
200T
3548
1617
1090
1185
1298
159
264
\
340
900
30-38
16
9100
