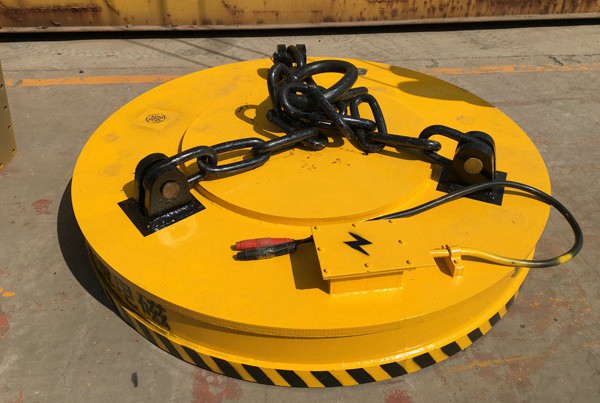

Lifting electromagnet is special equipment which utilizes the electric & magnetic physical quantity to lift attached materials and has become indispensable when to lift and transport ferromagnetism materials in lines of metallurgy, mine, machinery, shipbuilding and transportation etc and it can also be used as electromagnetic manipulator magnetic force centering bar length fixing and so on in some fields. As the attached materials are diverse, the electromagnet structure magnetic circuit and manufacturing process are also different. So there are many series of strong targeted products.
Crane Lifting Electromagnet Features
1. Adopt totally sealing structure with good property of moisture- proofing, non-magnetic fender is made of rolled Mn steel plate which has good property of weld ability magnetism- isolation, wear-resistant and shockproof.
2. Overseas technology has been introduced improved innovated as well as get optimum designed by computer to make our products reasonable structure, light self-weight strong attraction force and low energy consumption.
3. The energizing coils have been processed by special technology and thus its property of electrical and mechanical gets enhanced. Heat-resistant of insulating material reaches grade C and service life is long.
4.Rated duty cycle of normal electromagnet gets increased from 50% in the past to 60% thus working efficiency gets improved.
5. Over high temperature electromagnet adopts unique isolation from heat and radiation, the temperature of attached materials gets increased from 600 ℃ C in the past to 700℃; C which expands application range of electromagnet.
6. A full set of auxiliary unit such as control cubicle, cable reel etc can be provided as well.
7. Installation, operation and maintenance are convenient.
Crane Lifting Electromagnet Specification
Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) | ||||||
steel ball | cast iron | steel scrap | A | B | C | D | E | ||||
MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/300 | 620 | 800 | 800 | 160 | 90 | 30 |
MW5-90L/1 | 26.6 | 5.9 | 4500 | 650/440 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1100 | 220 | 150 | 45 |
MW5-130L/1 | 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 | 1300 | 1240 | 250 | 175 | 50 |
MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
MW5-180L/1 | 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
MW5-240L/1 | 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 | 90 |
FAQs
Crane magnet is used for lifting and handling magnetic materials such as steel plates, steel scraps, billets, and other ferrous items efficiently and safely in factories, steel mills, and scrapyards.
We have ISO quality management system certificate, our products have passed CE certification, our crane products can enter the EU market;
The lifting capacity varies depending on the magnet type and material thickness, ranging from a few hundred kilograms up to 30 tons or more for large-scale magnets.
Yes, we provide complete lifting magnet systems, including the magnet, controller, and power supply to ensure safe and reliable operation.
