It is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc.

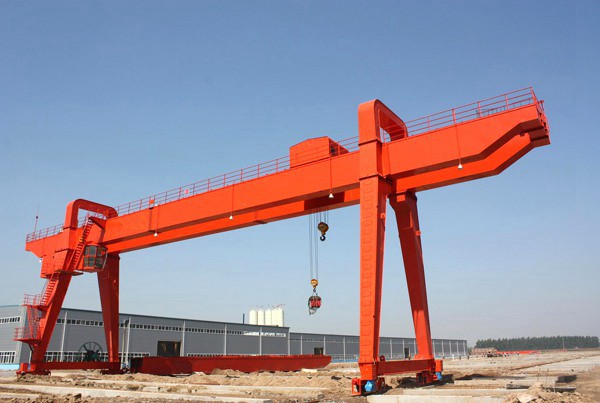

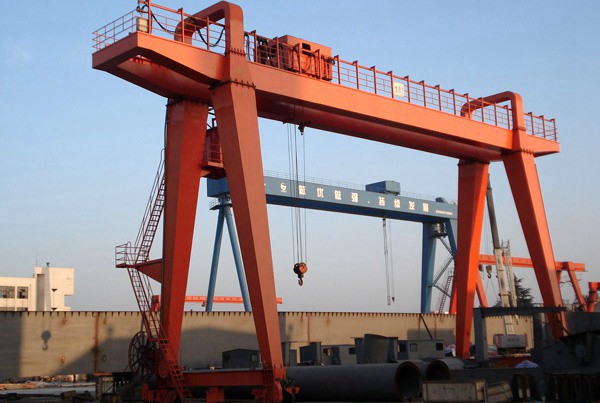

With the design concept of cutting down customer´s loss caused by crane problems and downtime, SINOKO CRANE has developed the European double girder gantry crane with the main features as follow:
1) High reliability, safety, free maintenance rate;
a) Work duty: FEM2M, M5
b) Protection class: IP55
c) Insulation class: F
d) Continuing rate: 60% ( for the high class motor)
e) Cooling rate: 30% than normal crane
f) Over temperature protection: 170℃
2) Compact design, small size, low dead weight, low headroom
3) Low noise
4) Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure.
5) Power-saved. The total motor power is much lower than normal design
| Type | MG | |||||||
| Capacity(t) | Main | 10 | 16 | 20 | 32 | 50 | 75 | 100 |
| Aux | 3.2 | 5 | 5 | 10 | 20 | 20 | ||
| Span | 18; 22; 26; 30; 35 | 40 | 16 | |||||
| Hoisting height(m) | Main | 11 | 12 | 12 | 12 | 22 | 22 | 17.5 |
| Aux | 16 | 14 | 14 | 24 | 22 | 17.5 | ||
| Hoisting speed | Main | 7.4 | 9.4 | 5.8 | 7.7 | 7.68 | 6.25 | 4.62 |
| (m/min) | Aux | 11.2 | 12.6 | 15 | 19.8 | 9.28 | 9.28 | |
| Hoisting motor | Main | YZR200L-8/15 | YAR225M-8/22 | YAR250M1-8/30 | YAR280M-8/55 | YZR315S-10/63 | YAR315M-10/85 | YZR315M-10/85 |
| Aux | YZR160L-6/11 | YZR160L-6/15 | YZR180L-6/15 | YZR250M-8/35 | YZR250M1-8/35 | YZR250M1-8/35 | ||
| Crane Rail Recommended | 43kg/m 43kg/m 50kg/m Qu80 | Qu80 | ||||||
| Power source | Three phase AC 380V 50Hz | |||||||
