Capacity: 1ton-20ton

Span: 6m-31.5m
a) work duty: FEM2M, M5
b) Protection class: IP55
c) Insulation class: F
d) continuing rate: 60% ( for the high class motor)
e) Cooling rate: 30% than normal crane
f) Over temperature protection: 170℃
Working temperature: -25 to +42 centigrade

Three control methods:
1.Pendent control: A. Easy operation when obervation.     B. Convenient to communication with other workers.
2.Wireless remote control:  A. Greatly improved the work efficiency.      B. Keep the operator from danger.
3.Cabin room control

Share With:

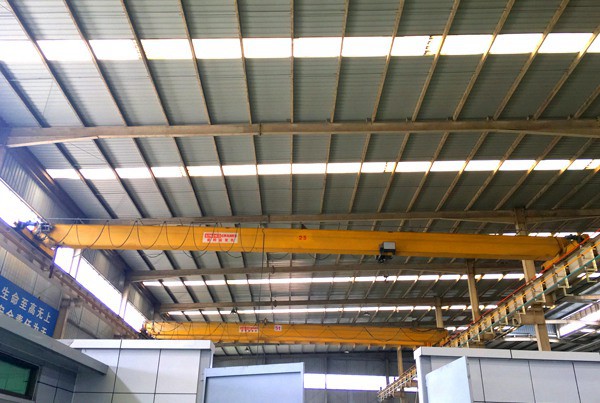

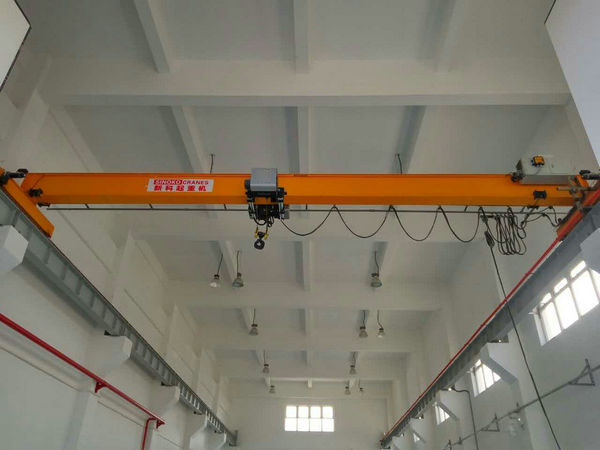

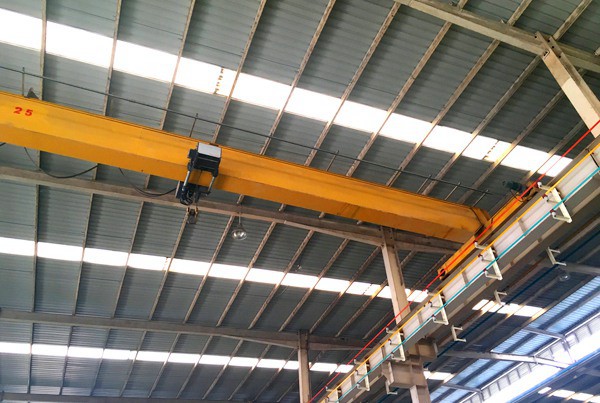

European Type Single Overhead Cranes

European type single girder overhead cranes have such design concepts as small dimension, light dead weight. Compared with traditional cranes, the limiting distance is minimum from hook to wall, and headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace.

European Type Single Overhead Cranes Features

1.Light Weight Design

Height: The overall height of the crane can be lower 20%~25% of the tradition crane.
Self weight: The self weight reduced by 20%~30%.
Wheel pressure: The maximum wheel pressure can deduct by 15% ~ 20%.
Size: The small limit dimension can increase the working area.
Structure: With the lightness structure it can cut the construction costs.
2. Modular Design
a). Each spare parts on the crane can be design to series standard modulus , it can lavish the product combination.
b). Its independent modulus is convenient for the transportation.
c). Standard modulus production, it can ensure stability quality of the product, it can shorten the delivery period.
3. Advanced Technology
a). Sandblasting pretreatment for the steel plate, its surface quality can reach to Sa2.5.
b).Using digital cutting machine to cut the web plate, ensure the smooth and precision of the camber curvilinear.
c).Main welding seam adopts auto arc merged welding, Ultrasonic, X ray nondestructive inspection.
d).The bridge and trolley frame adopts floor type boring machine to ensure the flatness of the machine side.
4. High Security
a).The safety supervises system equipped with overload limiter, and on the monitor it can display the loads value, it can remind the operator to prevent the overload.
b).Before the start, the entire controller will start self checking, includes: power voltage, default phase, the effective of each safety protective device and zero position of the button.
5.High Reliability
a).Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.
b).Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration.
c).The main electric elements adopts the international brands include Schneider, Siemens, ABB. The protective grade of the electric control box shall no less than IP 54.
d).The wheel forged by 65 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.
6. Low-energy and Maintenance-free
a).The total power of crane reduce about 30%, energy conservation and environmental protection.
b).The multi -in-one integrated transmission mechanism has less intermediate ring knot and high transmission efficiency.
c).Adopt frequency control, high and low speed ratio 1:10, work efficiency increased by more than 20%.
d).The “Maintenance-free and easy maintenance “design concept reduces customer maintenance costs.

e).It uses advanced processing technology and high -quality imported components. Its failure rate has been greatly reduced compared to traditional GB crane, helping customers reduce operating costs.

European Type Single Overhead Cranes Specification

Capacity(kg)
Span(m)
Lifting Height(m)
Lifting speed(m/min)
Max.Wheel Load(KN)
Total Power(KW)
Total Weight(T)
2000
7.5
9
5/0.83
Double speed
14
2.7
1.5
10.5
15.5
1.85
13.5
16.2
2.2
16.5
18.5
3
19.5
19.9
3.5
22.5
22.5
4.8
25.5
24
3
5.8
28.5
28.5
7.6
3200
7.5
9
5/0.83
Double speed
18.5
4.5
1.6
10.5
19.8
2
13.5
20.9
2.3
16.5
23.4
3.3
19.5
24.6
3.8
22.5
28
4.8
5.2
25.5
29.9
6
28.5
34.4
7.8
5000
7.5
9
5/0.83
Double speed
25.2
5.5
2
10.5
27.6
2.7
13.5
30.2
3.2
16.5
32.6
4
19.5
35
5.9
5
22.5
38
6
25.5
42.5
7.3
28.5
46
6.2
9.4
8000
7.5
9
5/0.83
Double speed
43.5
10.6
2.6
10.5
45.6
3.1
13.5
48
10.9
4
16.5
52.7
5.1
19.5
54
6.5
22.5
57.8
12.1
7.7
25.5
62
8.8
28.5
66.5
10.6
10000
7.5
9
5/0.83
Double speed
50.5
10.9
2.6
10.5
54.5
3.2
13.5
57
4.25
16.5
60.5
5.2
19.5
63.8
11.2
6.7
22.5
70
8.15
25.5
73
12.1
9.25
28.5
77.8
11.9

Get a Free Quote

FAQs

What is a single girder European overhead crane used for?

A single girder European overhead crane is used for lifting and moving loads efficiently within factories, warehouses, and workshops. It features compact design, light weight, and high performance, suitable for modern material handling.

What are the advantages of European type single girder cranes?
European type cranes offer optimized headroom, lightweight design, smooth and precise operation with variable frequency drives (VFD), and comply with FEM/DIN standards for enhanced safety and durability.
What type of hoist is used on the European single girder crane?

It is equipped with a European type electric wire rope hoist or low headroom hoist for efficient and safe lifting operations.

Do you provide installation, commissioning, and after-sales services?

Yes, we provide complete installation guidance, onsite commissioning, operator training, and after-sales technical support to ensure safe and smooth crane operation.
