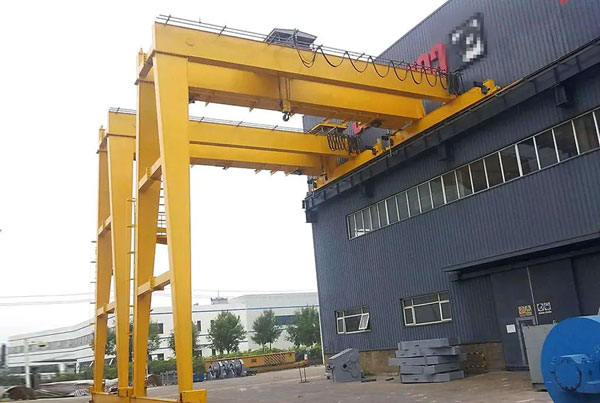

Semi-gantry cranes are a versatile and cost-effective solution for lifting and moving heavy loads in industrial settings. They combine the design of an overhead bridge crane with that of a motorized gantry crane, The crane is typically powered by a powerbar and collector assemblies along the elevated runway side of the Semi Gantry Crane and distributed by a festoon system to the hoist trolley.
Semi-gantry cranes can be controlled either by a wired pendant control or with an optional crane radio remote control system.
Semi-gantry Cranes Type

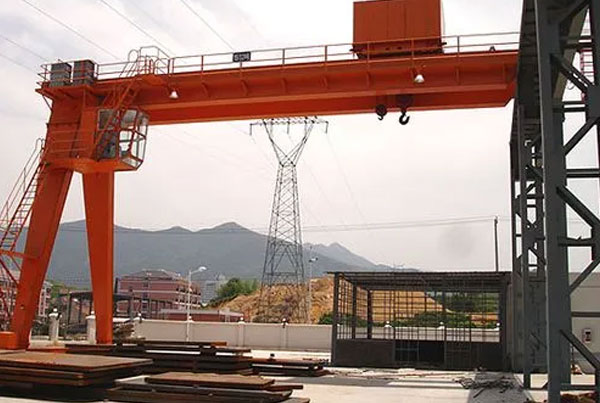

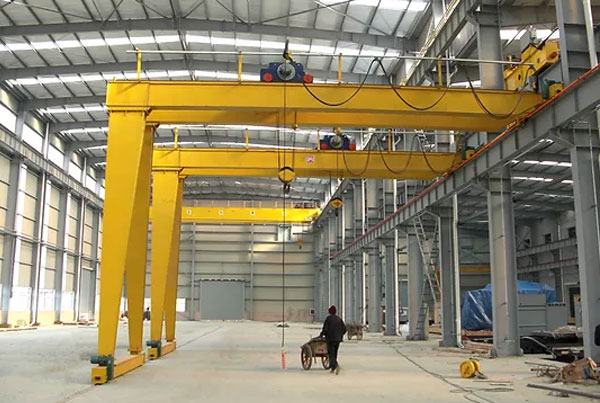

There are two types of semi-gantry crane, one is a single beam semi-gantry crane, one is a double girder semi-gantry crane, A single beam semi-gantry crane is a type of gantry crane that has one beam supported by two legs, while a double beam semi-gantry crane has two beams supported by two legs. Both types of semi-gantry crane are used to lift and move heavy loads in industrial and commercial settings.
1.Overload protection.
2.Main lifting motor with thermal protection.
3.Hooks with latch.
4.Rubber buffers.
5.Protective earthing.
6.Crane switch and travel and end switch
7.Emergency switch can stop all movement when any dangerous happened.
8.Sub-assemblies characteristics are tested before assembly.
9.All cranes must be pre-assembled and tested before leaving factory and offer the certification of test.
| Lifting capacity | t | 10-50 | |
| Span | m | 18-35 | |
| Lifting height | Main Hook | m | 10,12 |
| Auxiliary Hook | m | 10.6, 12.6, 10.7,12.7,11.1,13.1 | |
| Working class | A5 | ||
| Speed | Main | m/min | 5.9-9.8 |
| Auxiliary | m/min | 9.8-17.9 | |
| Trolley travelling | m/min | 38.2-43.8 | |
| Crane travelling | m/min | 30-37.5 | |
| Motor | Main | KW | YZR160L-6/15 |
| Auxiliary | YZR160L-6/11 | ||
| Trolley travelling | YZR160L-6/15 | ||
| Crane travelling | YZR160M2-6/2X3.7 | ||
| Max Wheel Load | KN | 150-475 | |
| Steel Track Recommend | P38、P43、P50 | ||
| Power source | 380V 50HZ | ||
As a leading crane manufacturer, Sinoko semi gantry cranes are highly efficient and reliable lifting machines, designed with flexibility and customizable features. They are used in a variety of industries, including shipbuilding, automotive manufacturing, heavy machinery manufacturing, warehousing and logistics, and oil and gas. Customers have consistently praised the performance and reliability of these cranes.
