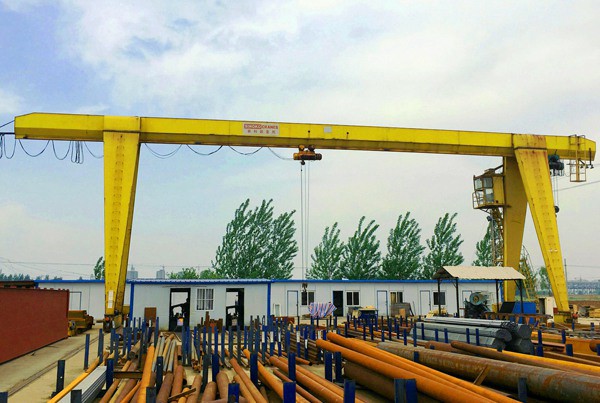

Light Type Gantry Crane

light type gantry crane is typically a single girder gantry crane. Single girder gantry cranes are suitable for light-duty lifting applications, where the loads to be lifted are not too heavy or too large. They have a simpler design and are more cost-effective than double girder gantry cranes. Single girder cranes are also easier to install and mntn. The light type gantry crane is designed to be a cost-effective and portable solution for light-duty lifting applications, and therefore, a single girder design is suitable for its intended use.

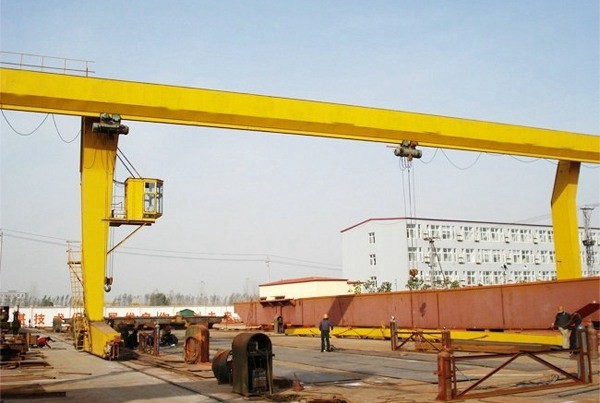

The Sinoko light type gantry crane includes MH or L model electric hoist single girder gantry crane, which is used together with CD, MD type electric hoist, It is a track travelling small and medium-sized crane, the capacity of crane from 5T to 32T, the span of crane from 12m to 30m, the working temperature within-20--+40 centigrade. This type crane is a regular crane widely used at open ground and warehouses. unload or grab material. It has 2 controlling methods. namely ground controlling and room controlling.

Weight overload protection device
Top quality long time bearing polyurethane materials buffer,
Crane traveling limit switch
Voltage lower protection function
Emergency stop system
Current overload protection system and so on!

Capacity
T
3
5
10
16
20
Span
m
12,16,20,24,30
Operational method

Pendent Line With Press Button /Cabin/ Remote
Speed
Lifting
m/min
8 ,8/0.8
8,8/0.8
7,7/0.7
3.5
3.5
Cross travelling
20
20
20
20
20
Long travelling
Ground
20
20
20
20
20
Cabin
20, 30,45
20, 30,40
30,40
30,40
30,40
Motor
Lifting
Type /kw
ZD41-4/4.5
ZDS1-4/0.4/4.5
ZD141-4/7.5 ZDS10.8/4.5
ZD151-4/13 ZDS11.5/4.5
ZD151-4/13
ZD152-4/18
Cross travelling
ZDY12-4/0.4
ZDY121-4/0.8
ZDY21-4/0.8*2
ZDY121-4/0.882
YZD-4/0.8*4
Long travelling
Ground
ZDY21-4/0.8*2
ZDY21-4/1.5*2
YZY22-4/1.5*2
YZR132M2-6/3.7*2
YZR22-4/1.5*2
YZR160M1-6/6.3*2
YZR160M2-6/8.5*2
YZR160M1-6/6.3*2
YZR160M2-6/8.5*2
Cabin
ZDR100-4/1.5*2
ZDR112-4/2.1*2
YZR112L1-4/2.1*2
YZR160M1-6/2.1*2
YZR112L1-4/2.1*2
YZR160M2
YZR160M2-6/8.5*2
YZR160L2-6/11*2
YZR160M2-6/8.5*2
YZR160L2-6/11*2
Electric hoist
Model
CD1/MD1
CD1/MD1
CD1/MD1
CD1
HC
Lifting height
m
6,9
Working duty

A3
Power supply

380V 60HZ 3phase AC (According to your demand )
