5 ton Single Girder EOT Crane

5 ton Single Girder EOT Crane

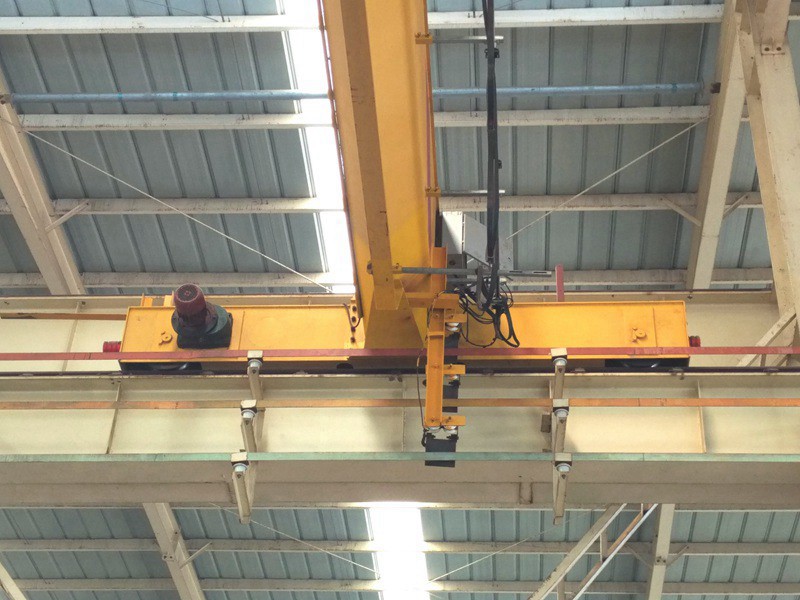

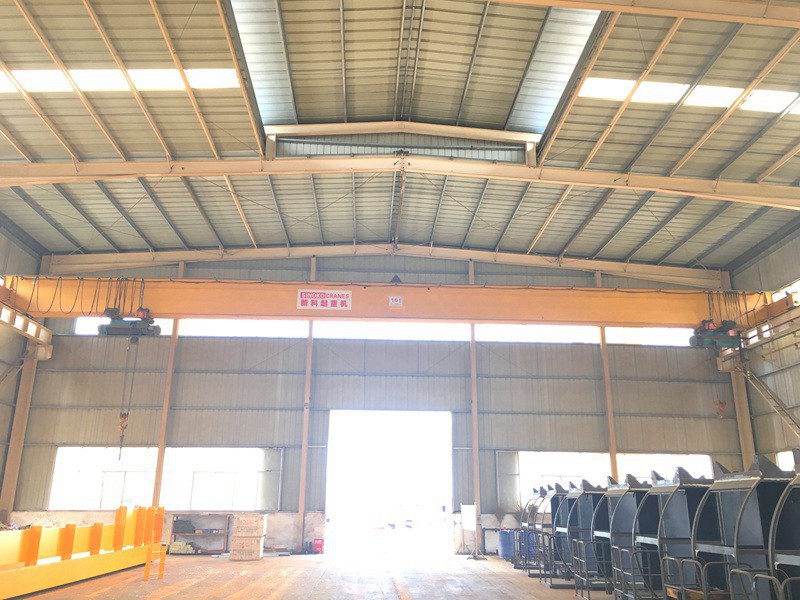

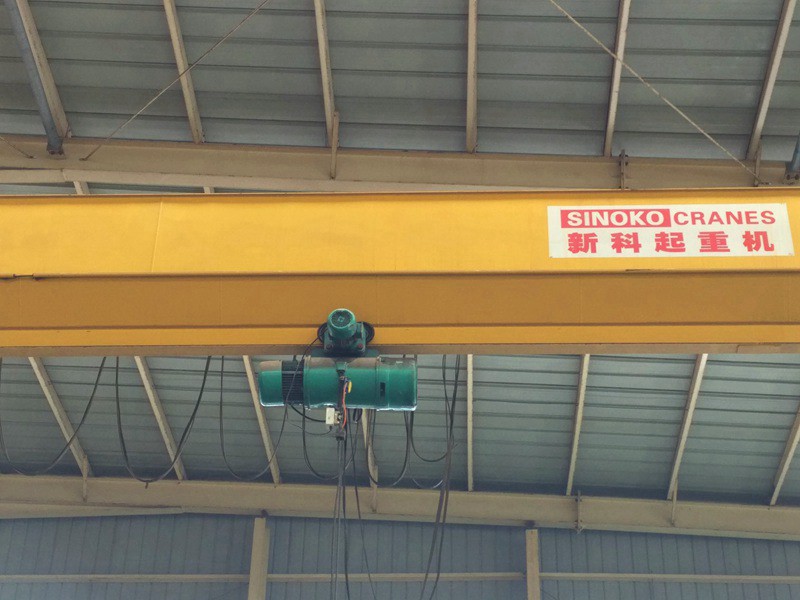

The 5-ton single girder EOT (Electric Overhead Traveling) crane manufactured by Sinokocranes is a reliable and efficient lifting solution designed to meet the demands of various industries. This crane is widely used in factories, warehouses, workshops, and construction sites for material handling and lifting tasks. With its robust construction, advanced features, and precise control, the Sinokocranes 5-ton single girder EOT crane ensures optimal performance and increased productivity.


Types of 5-ton single girder EOT crane

The Sinokocranes 5-ton single girder EOT crane is available in various types to suit different application requirements. These types may include top-running, under-running, and suspension configurations. Customers can choose the type that best fits their specific needs and available space.


Single Girder Design: The crane features a single girder configuration, providing excellent load capacity while minimizing the overall weight of the system.
High Load Capacity: With a maximum lifting capacity of 5 tons, this crane is capable of handling heavy loads with ease.
Smooth and Precise Operation: The crane is equipped with a reliable hoisting mechanism and precise control system, ensuring smooth and accurate load movements.
Compact Structure: The compact design of the crane optimizes the available workspace, making it suitable for facilities with limited overhead space.
Easy Maintenance: The crane is designed for ease of maintenance, with readily accessible components and convenient inspection points.

Safety Features
Emergency stop systemOverload protect deviceHigh quality buffer
Limit Switch for Lifting & TravellingCurrent overload protect deviceVoltage Lost protect device


Advantages


Push button of control: the life can reach 200000 times.
Electrical adapt as Chint, SIMENS, or Schneider.
Motor Choose China best motor brand: Nanjing special motor.
Soft start motor make the traveling smoothly.
Brake from Jiaozuo brake factory, China best brand.
LYC bearings which is serve for the the Shenzhou spacecraft.

CodeLDA
Lift Capacity5T
Span7.5~22.5M(Other on customerized)
Lift HeightCustomerized
CT Speed20/30m/min
Duty ClassificationA3
Dead weight2.54~6.05T
Max.wheel Load35.8~45KN
Min. wheel Load4.2~13.4KN
Lift Speed8m/min
LT Speed20/30m/min
Dia.(Drum)15mm
Model(Wire Rope)6*37+1
Width (Crane Rail Head)25a-45c
Motor ModelCone squirre-cage model
Lift Motor ModelZD141-4
Power(Lift Motor) 7.5KW
Rotation Speed (Lift Motor)1380r/min
Current(Lift Motor)18A
CT Motor ModelZDY121-4
Power (CT Motor)0.8KW
Rotation Speed(CT Motor)1380r/min
Current (CT Motor)2.4A
LT Motor ModelYSE802-4/YSE90L-4
Rotation Speed (LT Motor)1380r/min
Power (LT Motor)2*0.8/2*1.5KW
LT Motor ModelZDR100-4
Power (LT Motor)2*1.5KW
Power Source220V~480V, 50Hz/60Hz, AC
Control ModelCabin, remote control, pendent control with push button


FAQ


  1. Is your product customized?

Thanks for your question. Yes, because the working conditions are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!
  1. What is the information should I provide when inquiry?

Thanks for your question. The more information you provide the accurate solution we can prepare for you. The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
  1. How many operating methods for my selection?

Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, Pls no hesitate to contact with us.
  1. The space of my workshop is limited; can the crane ok for mine?

Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consults our professional engineer.
  1. Can the crane work in hazardous environment?

Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
  1. Do your side can provide lift tools?

Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!


    Get In Touch

    Our teams are on hand to provide you with the right lifting solutions.

    FEW TIPS

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day: ?

    6.Traveling distance of the crane: m?
