Ladle cranes are used to perform material transport between different machines in the rolling mills. In order to improve the precison of the position, they may incorporate with a rotating trolley to put the product correctly in relation to the conveyor.
To meet the high availability requirement ,the ladle crane is equipped with several redundant features and technical solutions such as dive and network units.The travelling motor can be soft start motor and frequency adjustable-speed motor to start steadily and run safely.Always we make 2 brake for each
mechanism.That could make the crane more safe.Also the high quality hydralic thrusters is the most important parts to make the brake perfect working ! Safety limit switches for stoppers will be provided to prevent over traveling in all motions.
Thousand of our cranes with capacities up to 600 t have been successfully operating at many heavy steel industries. The excellent of our cranes satisfy our clients and help us build a strong reputation as an outstanding supplier. We manufacture range of products for different applications in the steel industry. We customise and recommend the perfect solution to our clients.

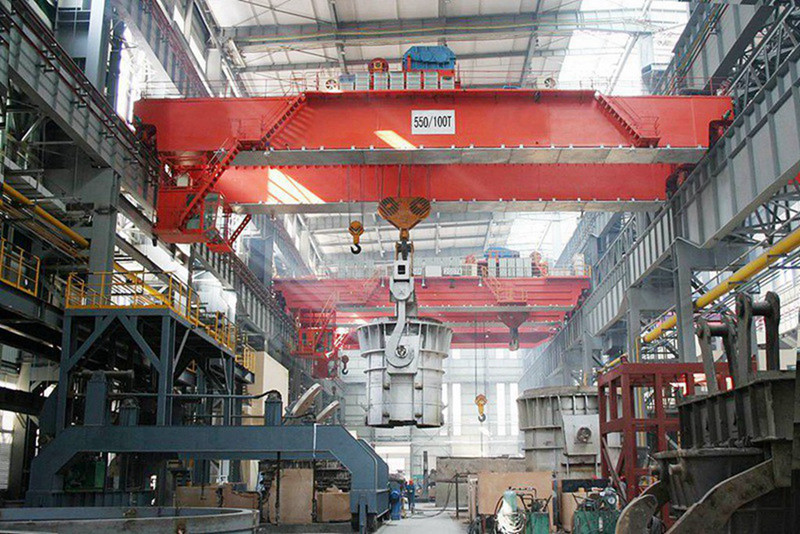

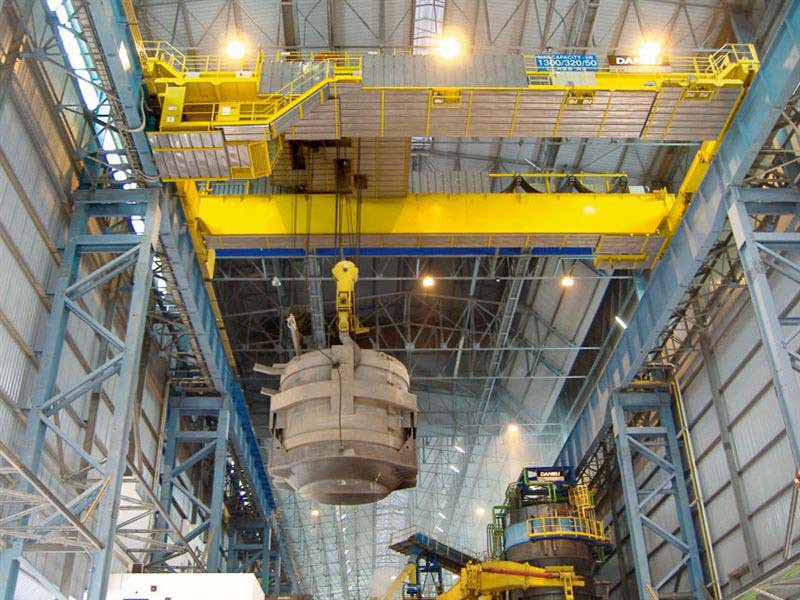

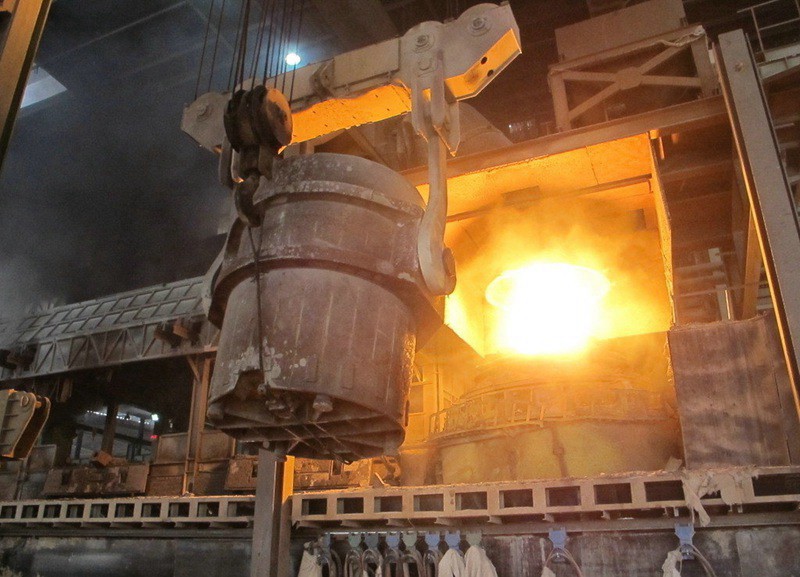

QDY&YZ model bridge foundry cranes (ladle cranes) with hook mainly consists of main beam, hook trolley, crane traveling mechanism, cabin and electric controlling system, etc. Foundry crane is one of the main equipment in the continuous casting technology of steel making. It is mainly used transfer the pouring melted iron to the appointed place, and the thermal protective coating is added at the bottom of the main girder. The place where molten nonmetal material and red-hot solid metal is lifted. The casting overhead crane are heavy duty for 20-24hours working.
Mechanical | Electrical | ||
No. | Item | No. | Item |
1 | Overload Limiter | 1 | Main isolating switch |
2 | Limit Switch | 2 | Short-circuit protection |
3 | Interlock protection device | 3 | Under-voltage protection |
4 | Buffer | 4 | Zero protection |
5 | Rail tongs, Anchor device, | 5 | Motor overload protection |
6 | Rail clear plate | 6 | Emergency stop system |
7 | Protective cover | 7 | Current overload protection |
8 | Bus Bar preventer plate | 8 | Security chain protection |
9 | Anti-collision device | 9 | Ground protection |
10 | Anti-overturn Safety Device | ||
Capacity(t) | Lifting Height(m) | Speed (m/min) | Total Power (kw) | Recomend Rail (kg/m) | ||||
Main hook | Aux hook | Main hook | Main Hook | Aux. hook | Trolley | Crane | ||
16/3.2 | 12 | 15 | 2.5~9 | 9 | 20~38 | 30~70 | 19.4~49.5 | 52.8 |
20/5 | 27.5~62.5 | |||||||
25/5 | 28.1~72.9 | |||||||
32/5 | 15 | 17 | 30~80 | 29.7~110 | 63.69 | |||
40/5 | 2~9 | 30~70 | 30.5~111.5 | |||||
50/10 | 2~7 | 9 | 46.4~130 | |||||
63/10 | 21 | 23 | 1.5~7 | 9 | 46.4~157 | |||
75/20 | 26 | 28 | 1.7~7 | 7 | 18~30 | 81~184 | 88.96 | |
Lifting Capacity | T | 125/32 | 140/32 | 160/32 | 180/50 | 200/50 | 225/65 | 240/80 | 280/80 | 320/80 | |
Span | m | 19 | 19 | 27 | 28.5 | 28 | 27 | 22 | 22 | 24.5 | |
Speed | Main Hook | m/min | 7.8 | 9.8 | 7.5 | 6 | 11 | 7 | 12 | 7.5 | 7.6 |
Aux. Hook | 9.7 | 12 | 10 | 10 | 11 | 9.6 | 10 | 10 | 9.7 | ||
Main Trolley | 36 | 43.5 | 40 | 41 | 41 | 35 | 40 | 29 | 38 | ||
Aux. Trolley | 37.5 | 43.5 | 38 | 38 | 39.5 | 38 | 40 | 39 | 39 | ||
Traveling of Crane | 73 | 84 | 80 | 78 | 84 | 80 | 80 | 58 | 76 | ||
Max wheel pressure | KN | 505 | 535 | 485 | 525 | 530 | 550 | 545 | 735 | 750 | |
Steel track recommended | QU120 | ||||||||||
Operational Model | Cabin; remote control | ||||||||||
Working class | A7,A8 | ||||||||||
Power Supply | 380vV 50HZ 3P | ||||||||||
