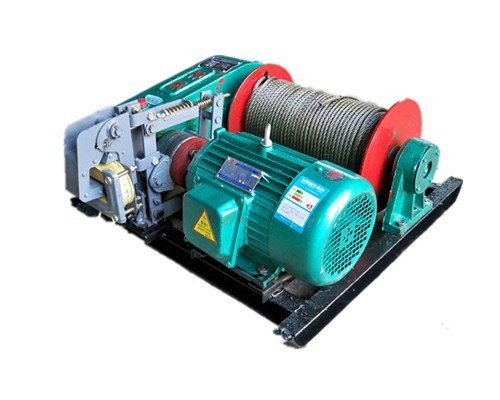

JK type high speed electric winch mainly is used for materials lifting and traction the low weight duty construction. It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine area lifting factory.
1. High versatility
2. Compact structure
3. Small volume, lightweight, convenience in using and transferring
4. Driving stably
5. Very light noise
6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
7. Adjustable lifting or pulling speed for different usage environment.
8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places, etc.
| Basic parameter Type | Rated load (KN) | Rated speed (M/MIN) | Rope capacity (M) | Rope diameter (MM) | Motor power (KW) |
JK1 | 10 | 22 | 100 | 9.3 | 4 |
JK 1.6 | 16 | 24 | 150 | 12.5 | 5.5 |
JK2 | 20 | 24 | 150 | 13 | 7.5 |
JK3.2 | 32 | 25 | 290 | 15.5 | 15 |
JK5 | 50 | 30 | 300 | 21.5 | 30 |
JK8 | 80 | 25 | 160 | 26 | 45 |
JK10 | 100 | 30 | 300 | 30 | 55 |
The price of JK Type High Speed Electric Wire Rope Winch depends on the size and specifications of the winch. You can contact us to get an accurate price quote.
