Fast Speed Electric Wre Rope Winch

Fast speed electric wire rope winch mainly is used for materials lifting and traction the low weight duty construction. It also used for crane as main hoist; it is the special winch of derrick and gantry frame and lifting trolley. It is suitable for construction and small equipment installation of construction mine area lifting factory.

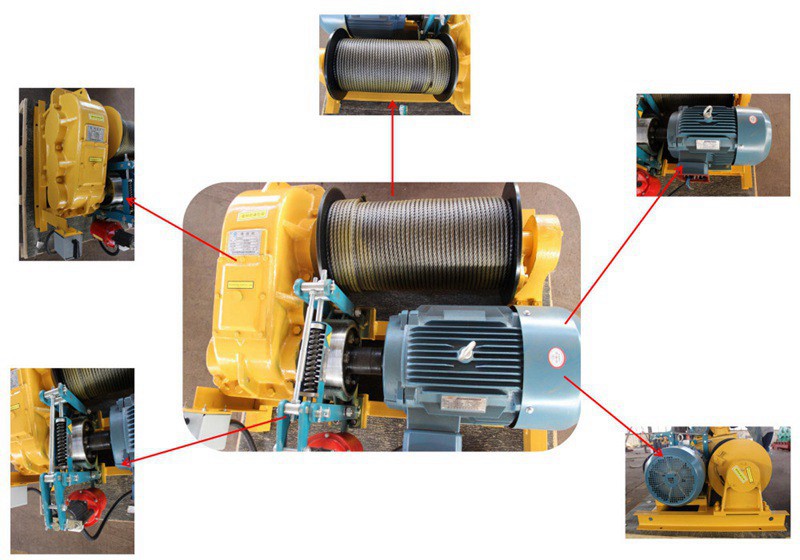

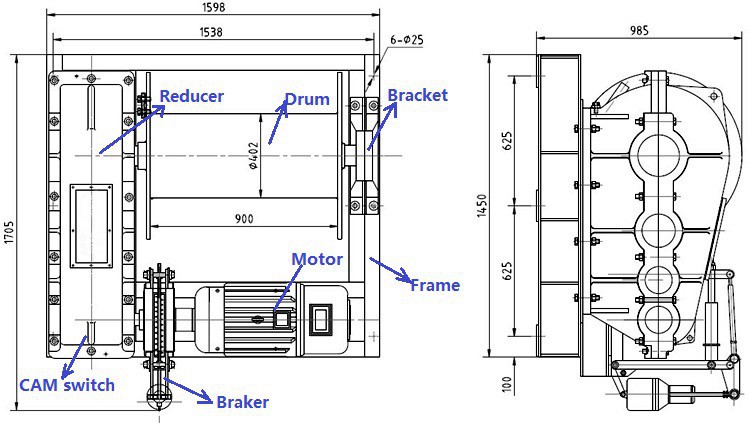

The fast speed electric wire rope winch is equipped with a sturdy drum that houses a high-strength wire rope. The winch utilizes an electric motor as its power source, delivering the necessary force to wind and unwind the wire rope with exceptional speed. It features a robust gearbox system that ensures smooth and reliable operation even under heavy loads. The winch can be mounted to a stationary structure or integrated into mobile equipment for versatile usage.

1. High versatility
2. Compact structure
3. Small volume, lightweight, convenience in using and transferring
4. Driving stably
5. Very light noise
6. With big drum rope capacity to make you a wide range of choice for the lifting height or pulling length.
7. Adjustable lifting or pulling speed for different usage environment.
8. This kind of electric wire rope winch can be applied to the lifting or pulling operating in construction water conservancy, forestry, mining and quay places etc.


Basic parameter
Type
Rated load
(KN)
Rated speed
(M/MIN)
rope capacity
(M)
Rope diameter
(MM)
Motor power
(KW)
JK1
10
22
100
9.3
4
JK 1.6
16
24
150
12.5
5.5
JIK2
20
24
150
13
7.5
JK3.2
32
25
290
15.5
15
JK5
50
30
300
21.5
30
JK8
80
25
160
26
45
JK10
100
30
300
30
55

Experience the speed and efficiency of our fast speed electric wire rope winches. Contact us today to discuss your lifting needs, request a consultation, and find the perfect solution for your load handling requirements.


FAQ

What are the advantages of a fast speed electric wire rope winch?

A fast speed electric wire rope winch offers swift load handling, reliable performance, versatility, and ease of operation.

Can the lifting capacity be customized?

Yes, the lifting capacity of the winch can be customized based on specific requirements and load handling needs.

Are there any safety features included?

Yes, fast speed electric wire rope winches are equipped with safety features such as overload protection and emergency stop buttons to ensure safe operations.
