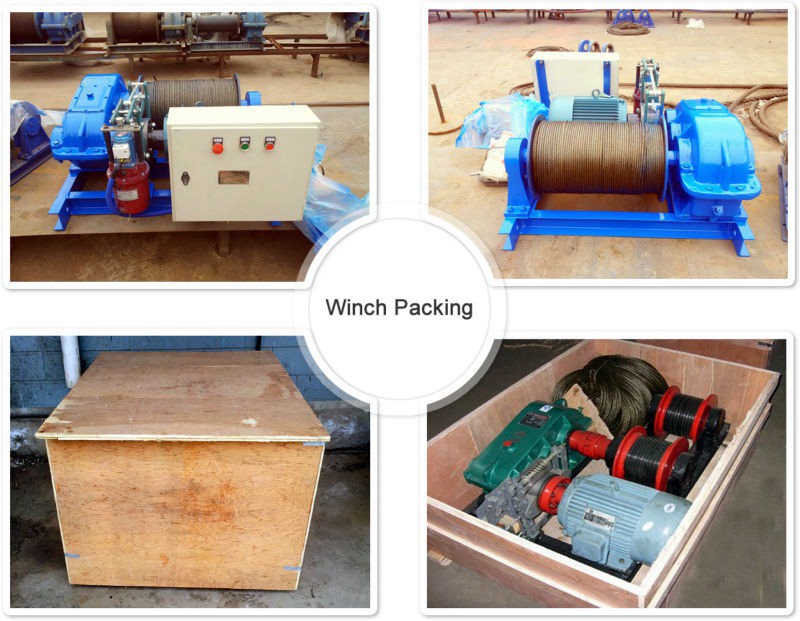

The electric winch consists of a motor, coupling, brake, gearbox and drum, which are jointly installed on the frame. For situations where the lifting height and loading and unloading volume are large and the work is frequent, the speed adjustment performance is good and the empty hook can be lowered quickly. For installed or sensitive materials, a lower speed can be used.
1. Slow speed,
2. Steadily working3. Heavy duty, Safety and reasonable price
4. High strength component, Durable and Reliable
Basic Parameter Type | Rated Load ( KN) | Rated Speed (M/MIN) | Rope Capacity (M) | Rope Diameter (MM) | Motor Power (KW) |
JM1 | 10 | 15 | 100 | 9.3 | 3 |
JM2 | 20 | 16 | 150 | 13 | 7.5 |
JM3.2 | 32 | 9.5 | 150 | 15.5 | 7.5 |
JM5 | 50 | 10 | 270 | 21.5 | 11 |
JM6 | 60 | 9.5 | 270 | 24 | 15 |
JM8 | 80 | 8 | 250 | 26 | 15 |
JM10 | 100 | 8 | 170 | 30 | 22 |
JM16 | 160 | 10 | 500 | 37 | 37 |
JM20 | 200 | 10 | 600 | 43 | 45 |
JM25 | 250 | 9 | 700 | 48 | 55 |
JM32 | 320 | 9 | 700 | 56 | 75 |
JM50 | 500 | 9 | 800 | 65 | 90 |
JM65 | 650 | 10.5 | 3600 | 64 | 160 |
