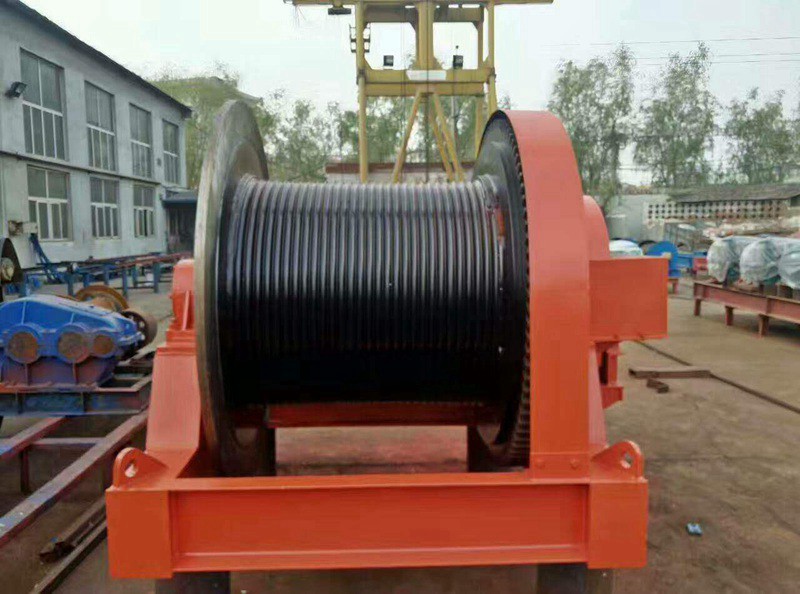

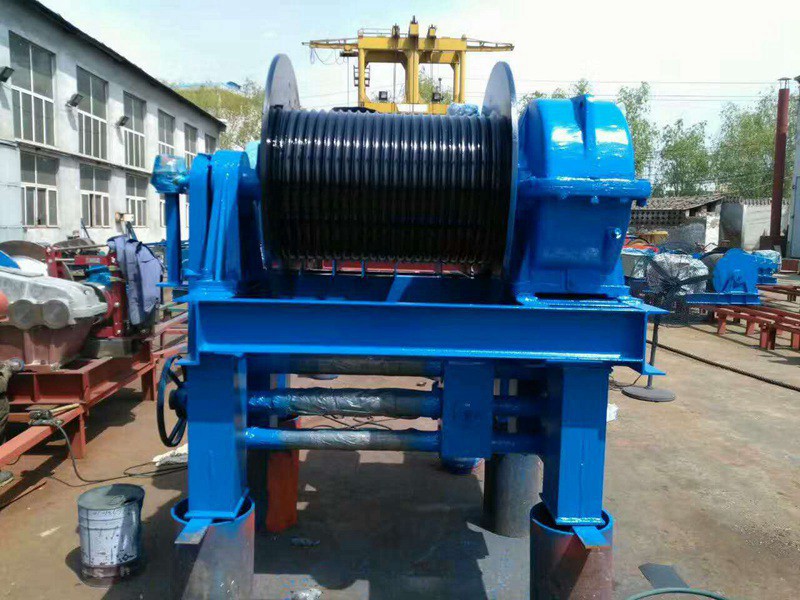

Construction Electric Wire Rope Winch

This electric winch is widely used to install and disassembly various huge and oversize concrete and steel structure as well as mechanical equipment.
In a word, it is suitable for large factories, mine engineering, bridge engineering, etc.
1.Capacity: 1-65T
2.Lifting height: 2400m
3.Lifting speed: single/VVVF
4.Voltage: 220v/380v/400v/415v
 5.Push button or cam control
6. Siemens electric system
7. Current overload protection function, Voltage lower protection function.


1) Top quality with competitive price.
2) Widely used in the double beam bridge crane and gantry crane.
3) Easy to install and high quality.
4) Compact structure and reasonable design.
5) Overload protection, shock protective, Explosion-proof performance




Rated load(KN)

Rated speed

(m/min)

Rope capacity(m)

Rope diameter

(mm)

Motor model

Motor power

(KW)

Overall dimensions

(mm)

Total weight

(kg)

JM10

100

8

170

30

YZR200L-6

22

2090*1475*956

3000

JM10B

100

9.5

250

30

YZR200L-6

22

1705*1598*985

3500

JM12.5

125

8

300

34

YZR225M-6

30

2880*2200*1550

5000

JM13.5

135

5

290

28

YZP225S-8

22

2990*2363*1650

6500

JM16

160

10

500

37

YZR250M2-8

37

3750*2400*1850

8800

JM20

200

10

600

43

YZR280S-8

45

3950*2560*1950

9900

JM25

250

9

700

48

YZR280M-8

55

4350*2800*2030

13500

JM32

320

9

700

56

YZR315S-8

75

4500*2850*2030

14800

JM50

500

9

800

65

YZR315M-8

90

4930*3050*2250

19500

JM65

650

10.5

3600

64

LA8315-8AB

160

5900*4680*3200
46000

Note: Special design is available as per customers’ requirements.
