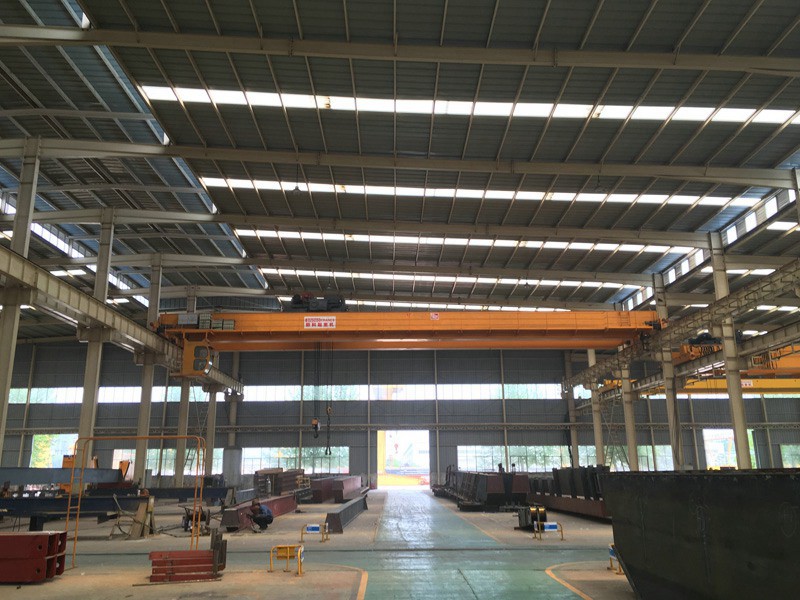

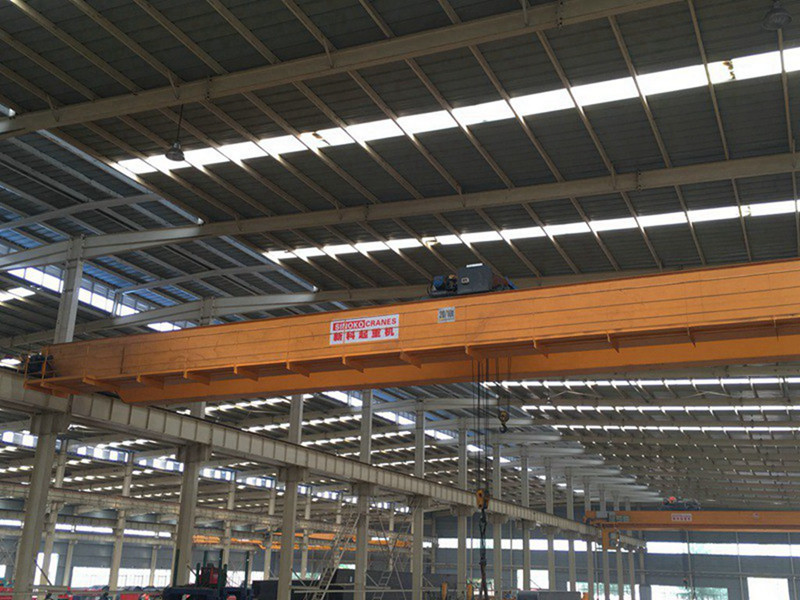

QD type electric double beam bridge crane is composed by the bridge frame, crab, trolley travelling mechanism, electrical equipment. This crane is suitable for the workshops, good yards and warehouses of the departments of stations, ports, industrial and mining enterprises, lifting, transporting, loading and unloading all kinds of materials in a fixed span. Depending on the different using frequency, it can be divided into A5, A6,A7 class. The maximum capacity can be up to 450 ton.
The main steel frame of bridge crane includes girder box, platform, pantograph and trolley rail. The Main girder will be strictly fabricated and detected in our workshop according the design and national standard. The toughness and strength are perfect combination. It applies shot blasting and high quality painting. Well-chosen choose steel plate, advanced welding technology and equipment.
Overload protection
Main lifting motor with thermal protection
Hooks with latch
Rubber buffers
Protective earthing
Emergency switch
Sub-assemblies characteristic are tested before assembly
Laser anti-collision system
| ting Weight | 100/20 | |||||||||||
| span | 13 | 16 | 19 | 22 | 25 | 28 | 31 | |||||
| Max lifting Height | Main Hanger | m | 20 | |||||||||
| Auxiliary hanger | ||||||||||||
| Speed | Main | A5 | m | 4.4 | ||||||||
| Hoisting | A6 | 4.4 | ||||||||||
| Auxiliary | 9.4 | |||||||||||
| Trolley Travelling | 41.4 | |||||||||||
| Long Travelling | A5 | 78 | ||||||||||
| A6 | 68 | |||||||||||
| Motor | Hoisting | main | A5 | kw | YZR355M-10/110 | |||||||
| A6 | YZR355M-10/110 | |||||||||||
| Auxiliary | YZR225M-8/ 26 | |||||||||||
| Trolley Travelling | YZRI80L-6/17 | |||||||||||
| Long Travelling | A5 | YZR250ML-8/2X35 | ||||||||||
| A6 | YZR250ML-8/2X37 | |||||||||||
| Steal track recommended | Recommended to use QU 100 | |||||||||||
| Powar source | 3Phase 50HZ 380V | |||||||||||
