Rotating Magnet Spreader Electromagnet Bridge Crane for Rebar Lifting

Rotating Magnet Spreader Electromagnet Bridge Crane Product Description

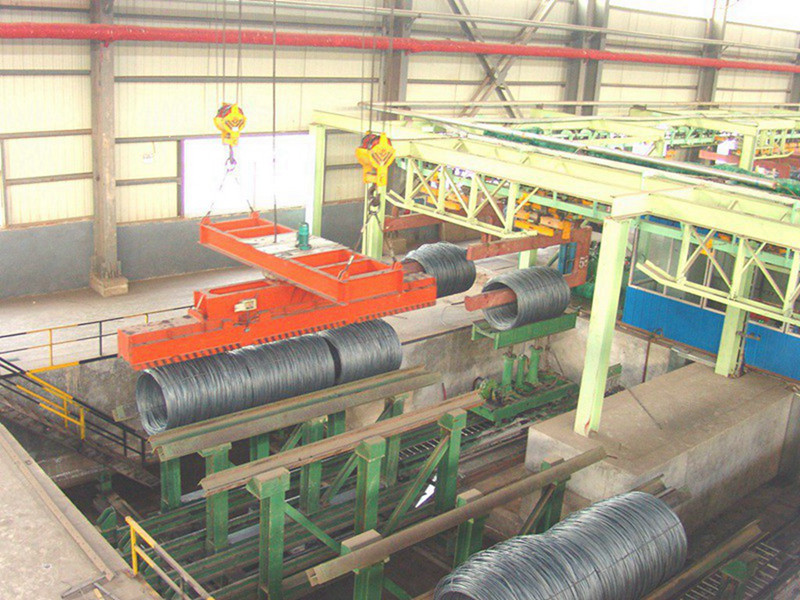

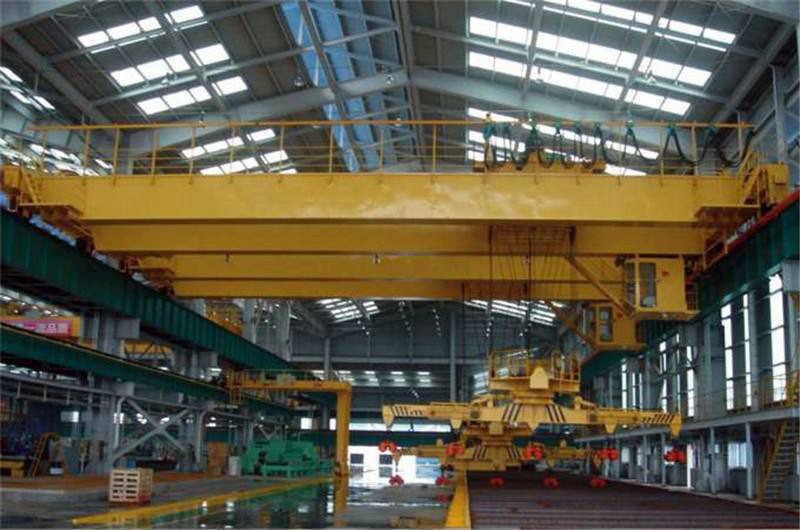

Rotating Magnet Spreader Electromagnet Bridge Crane
1. The magnet crane has a removable disk, especially for the handling of magnetic properties of ferrous metal products and materials, such as steel ingots, steel, such as iron blocks. Mainly used for iron and steel enterprises rolling line, finished product library, shipyard steel yard, cutting workshop, etc. This crane with a removable disk, especially for the handling of magnetic properties of ferrous metal products and materials, such as steel ingot, Raw stones and so on. Mainly used for iron and steel enterprises rolling line, finished product library, shipyard steel yard, cutting workshop and so on.


2. The Electromagnetic hangings with Simple structure, balanced force, the lifting electromagnetic sucker are easy to disassemble.


3. The lifting mechanism using a single motor driven single drum or double drum structure, to ensure the synchronization of the lifting material.

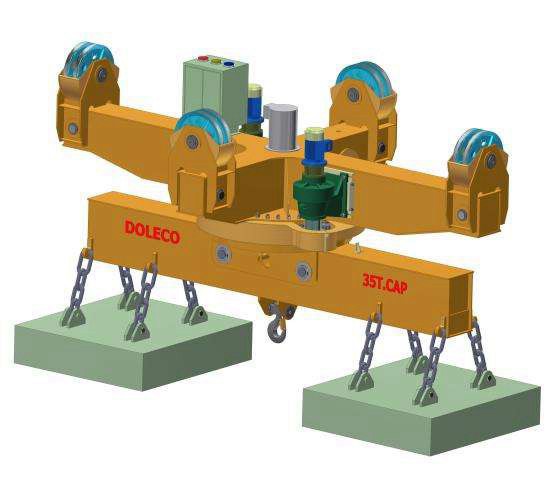

4. Hanging beam metal structure using steel plate welded box type beam, hanging beam on the electromagnetic sucker can be disassembled, easy maintenance.

IV. Product Features of Rotating Magnet Spreader Electromagnet Bridge Crane

Material
All compression structural part of crane's components chosen material with fine quality and meet regulation. The important material has quality guarantee and inspection report.
Welding
In view of important welding seam and stress is more than tension weld of 70% allowance stress, conducting fault detection check and take out 5% weld length by ultrasonic test. Inspection report provided to user.
Magnetic chuck
Lifting Magnet Series MW5 is used for lifting and transporting steel scraps. It is suitable for transferring cast ingots and various kinds of steel scraps. It has huge magnetic force and can attract lots of steel scraps at one time. The trolley is designed to have slewing mechanism. So the lifted steel bar can change direction freely.
Motor
Drive motor must use China Top Brand: Jiangte Motor. Manufacturer have good achievement used and provided detailed and actual parameter prove that it is good performance product. Insulation class >= F; Protective class >= IP54.
Electric system
Inverter from famous brand ABB can make lifting and traveling in any speed you want specifically for your work. All mechanism is controlled by PLC
Control panel
3 ways are optional based on budget or need: Cabin with joystick panel, wireless control panel or pendent control panel.
Painting
All steel is treated by sand blasting before doing paintings. There are 3 layers of paintings. The bottom layer is zinc painting to prevent from rusting. The color of top surface should be average.
Safety System
mechanical limit switch: overload limit, height limit, rail end stop limit for traveling. Electric protection: short circuit protection, lose phase protection, low-voltage protection, power failure protection, over current protection.

Overhead Crane with Craaier Beam .jpg


I. Key production process control of Rotating Magnet Spreader Electromagnet Bridge Crane:


Welding process: We perform special process control procedures, control strictly in terms of the operating environment, consumables selection, training, and other special operations. The major welds used automatic submerged arc welding process to ensure weld quality and test report issued.

Main girder production: We have three main girder production lines, use automatic hydraulic pressure of the main girder assembly machine Group, to ensure the main girder of the technical requirements. And we use double-sided automatic submerged arc welding process, to ensure the realization Pre-camber.

Crane assembly: We have three assembly lines crane bridge, through the process of process control, machine to achieve quality assurance; through the process flow control, ensure the whole machine quality.

Electrical equipment parts: All wiring of the components in the electric control box have been completed and pre-commissioning by power on test and loading test. Meanwhile, all the wiring are marked by line number ,no falling off; Each line of the sequence is very clear and easy to repair in the future. All external connections of electric control box adopt aviation fast plug, which has the feature in easy plugging, high protection class and long service time; also prevents from electric leakage, shock and other security incidents.


II. Main production equipments of Sinokocranes company

Our main production equipments are: Steel plate pretreatment line, Steel plate decoiling, leveling & cutting line, Steel plate CNC cutting line, Main beam welding machine, Main beam assembling machine, Boring miller machine, Bridge pre-assembling platform, Shot blasting machine, European hoist test station, CNC vertical machining center,Heavy duty 2285B CNC vertical machining center ect.



Kindly please provide the following information when sending enquiry to us.

Load capacity
(       )
Tips:5+5t ~ 20+20t
Span
(       )
Tips:10.5m-31.5m
Lift height
(       )

voltage
(       )
380V 50Hz AC 3-phase or please note
Working Class
(       )
Tips: A5 - A6 if you don't know, please not
Hours per day
(       )

Control way
(       )
Tips: remote control, cabin control or pendent control
Lifting Speed
(       )
Tips: single speed or double speed
