CXSM Factory Winch Trolley Overhead Crane

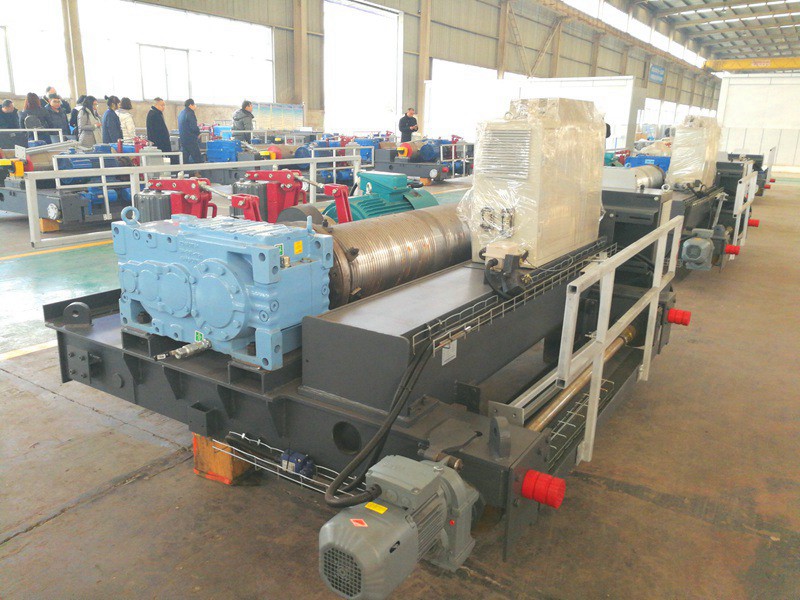

I. Brief Introduction of CXSM Factory Winch Trolley Overhead Crane

This series crane is new type of crane made by employing import configuration, new material and technology and has features in light weight, generalizing, energy conservation and environmental protection, maintenance free and high technology content.
The hole crane is main consists of the double main beams, two end beams, trolley, electrical parts.


II. Crane Features of CXSM Factory Winch Trolley Overhead Crane

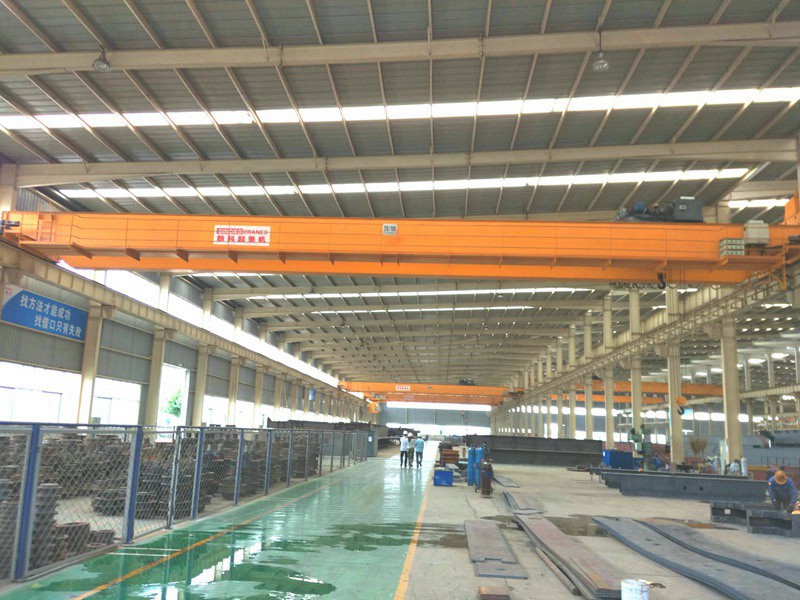

Factory Winch Trolley Overhead Crane

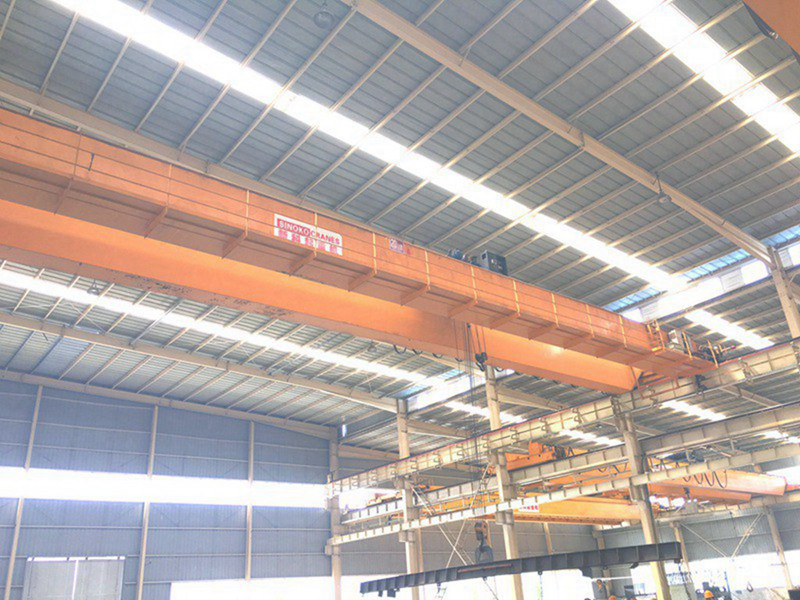

Factory Winch Trolley Overhead Crane Beam

1. Main beam structure
1) Main beam use bias-rail box type structure, with optimized design and light self-weight.
2) The welding of main beam should be performed on working platform. In order to avoid distortion of main beam, our company adopts U-shaped main beam assembly machine with hydraulic forming which has won national patent ensuring that vertical deflection degree between joint edge of stiffened and web plate and upper cover cover should not more than H/200, and also efficiently reduce the partial wave of web plate.
3) Layout repair walkway on the drive sides of crane along the direction of main beam.

2. End beams
1) Material of end beam uses Q345B steel.
2) End beam is made of rectangular steel pipe or steel plate by welding, the finished end beam get once positioning processed on numeral control machine in order to ensure dimension accuracy and fit tolerance.
3) Each end beam is supplied with wheels with double wheels with double wheel rim, buffer and anti derailing protection device.

3. Connection of main beam and end beams
Connect main beam with end beam through bolts with end beam through bolts with high strength ensuring precision and smooth running of crane.

4. Conductive frame of crane and trolley

Conductive frame employs modular design and which consists of U-shaped bolt, connecting plate and rectangle pipes, the length and height can be arbitrarily regulated as well as easy installation.


III. Electric Protection of CXSM Factory Winch Trolley Overhead Crane

It has complete equipments including main isolation switch, emergency disconnect switch, protection for short circuit, pressure loss, zero position , excitation loss, over current and over speed, which sufficiently implements conception of safety first


IV. Control methods for us to choose:

Control methods
Advantages
Pendent control
A. Easy operation when observation.
B. Convenient to communication with other workers
Wireless remote control
A. Greatly improved the work efficiency.
B. Keep the operator from danger.
Cabin operation control
A. High grade steel plate adapted for cabin structure
B. Big Toughened Glass around, good view for operation
C. Lower noise, more safety performance


Exceptional Lifting Capacity: Our Factory Overhead Crane has a remarkable lifting capacity, capable of handling substantial loads with ease, making it perfect for factories dealing with heavy equipment and materials.


Precision Controls: Equipped with advanced control systems, the crane allows precise and efficient operation, ensuring safety while maximizing productivity.


Durable Construction: The robust design of the crane ensures durability and longevity, even in the harshest factory environments.


Low Maintenance: The high-quality construction of this crane significantly reduces the need for regular maintenance, saving time and resources.


Capacity
(t)
Span
(m)
Lifting height(m)
Lifting speed
(m/min)
Max. wheel load
(KN)
Total power
(KW)
Total weight
(T)
5t
10.5-31.5
9
5/0.83
36.8-74.2
5.5-7.2
3.9-19.6
10t
10.5-31.5
9
5/0.83
64-108.6
10.5-12.2
5.8-20.8
16t
10.5-31.5
10
5/0.83
100-128
18.1-19.5
6.8-25.8
20t
10.5-31.5
10
5/0.83
112-86.6
21.1-24.9
7.4-28.3
25t
10.5-31.5
10
5/0.83
150-102.2
21.5-25.3
9.3-30.2
32t
10.5-31.5
9
4/0.67
191-128.8
29-30.4
10.2-32.8
40t
10.5-31.5
9
3.2/0.5
232-146
29-32.8
11-35.1
50t
10.5-31.5
9
2.5/0.4
142-180.5
31.2-33.6
12.9-42.6
63t
10.5-31.5
9
2.5/0.4
179-220.5
42-43.2
14.3-46.9
80t
10.5-31.5
9
2/0.3
225-267
42-43.2
17-50.3
