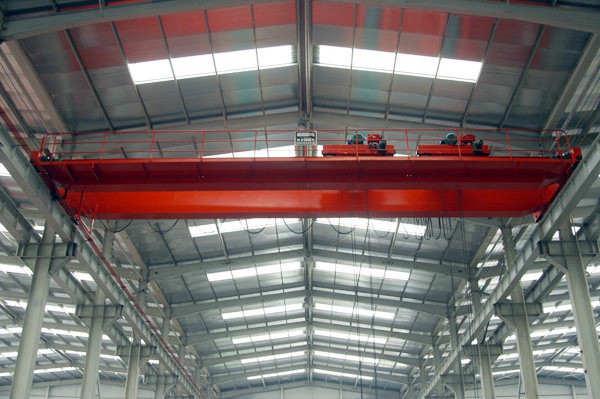

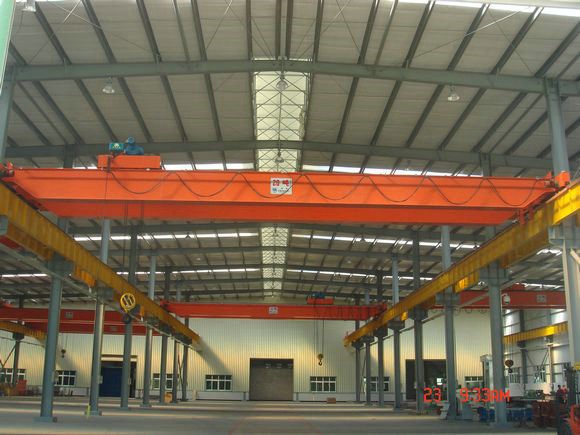

LH electric hoist double girder EOT crane is suitable for transporting, assembling,maintenance, loading and unloading of mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, material yards, power plants, etc. Its working environment temperature is -25C-+40C. It is prohibited being used in the environment of flammable, explosive and corrosive.
We are the leading EOT crane supplier in China, and we are focus on high level China standard and European Type Cranes.
1). Compact design, optimal use of the work areas
2). Heavier loads, wider spans and higher working frequency
3). Control the load easily, position the load exactly
4). Superior safety and reliability
5). "One-Stop Shop" for your crane and hoist needs
Safety
Overload protection
Main lifting motor with thermal protection
Hooks with latch
Rubber buffers
Protective earthing
Emergency switch
Sub-assemblies characteristic are tested before assembly
All cranes must be preassembled and tested before leaving factory and offer the certification of test
Lifting Capacity | T | 3t | 5t | 10t | 16t | 20t | ||
Span | m | 10.5~31.5m | ||||||
Speed | Lifting | CD1 hoist | m/min | 8 | 7 | 3.5 | 6 | |
MD1 hoist | 8/0.8 | 7/0.7 | 3.5/0.35 | 6/0.6 | ||||
Traveling of hoist | 20 | |||||||
Traveling of crane | 20/30 | |||||||
Operational Model | Cabin; remote control; ground handle | |||||||
Working Duty | A3-A5 | |||||||
Power Supply | Three-phase A.C. 380V, 50Hz | |||||||
