Travelling Gantry Crane

Types of Travelling Gantry Cranes

Full Gantry Cranes

Full gantry cranes are the heavyweight champions of the crane world. They have two legs that ride on a rail system installed on the ground. Can you picture the massive cranes at shipping ports? Those are full gantry cranes!

Semi Gantry Cranes

Semi gantry cranes are the more economical siblings of full gantry cranes. They have one leg with wheels that run on a track, while the other side runs on a rail mounted to a wall structure. Perfect for applications where space and budget are constraints, don't you think?

Portable Gantry Cranes

Portable gantry cranes, as the name suggests, are mobile and flexible. They can be easily moved around a workspace and are ideal for small-scale tasks. You could say they're the handyman of gantry cranes!

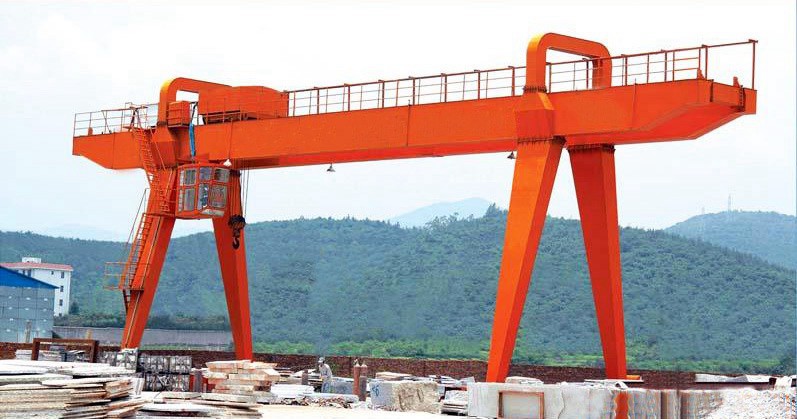

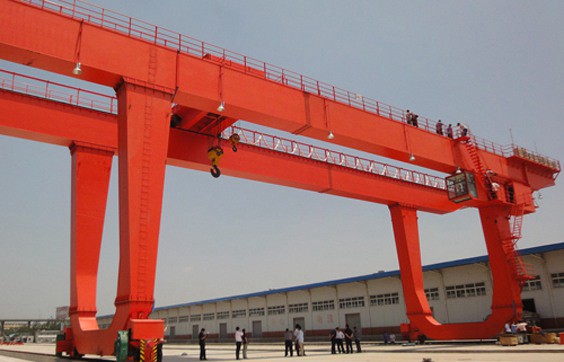

With the design concept of cutting down customer's loss caused by crane problems and downtime, SINOKO CRANE has developed the European double girder gantry crane with the main features as follow:

1) High reliability, safety, free maintenance rate;
2) Work duty: FEM2M, M5
3) Protection class: IP55
4) Insulation class: F
5) Continuing rate: 60% ( for the high class motor)
6) Cooling rate: 30% than normal crane
7) Over temperature protection: 170℃
8) Compact design, small size, low dead weight, low headroom
9) Low noise
10) Investment-saved---the workshop's civil work cost, due to crane's light dead weight and low wheel pressure.
11) Power-saved. The total motor power is much lower than normal design

Type

MG

Capacity(t)

Main

10

16

20

32

50

75

100

Aux



3.2

5

5

10

20

20

Span

18; 22; 26; 30; 35

40

16

Hoisting height(m)

Main

11

12

12

12

22

22

17.5

Aux



16

14

14

24

Hoisting speed

Main

7.4

9.4

5.8

7.7

7.68

6.25

4.62

(m/min)

Aux



11.2

12.6

15

19.8

9.28

9.28

Hoisting motor

Main

YZR200L-8/15

YAR225M-8/22

YAR250M1-8/30

YAR280M-8/55

YZR315S-10/63

YAR315M-10/85

YZR315M-10/85

Aux



YZR160L-6/11

YZR160L-6/15

YZR180L-6/15

YZR250M-8/35

YZR250M1-8/35

YZR250M1-8/35

Crane Rail Recommended

43kg/m 43 kg/m 50kg/m Qu80

Qu80

Power source

Three phase AC 380V 50Hz


FAQs

What is a travelling gantry crane?

A travelling gantry crane is a type of crane with a hoist mounted on a trolley, which moves horizontally on a rail or pair of rails fitted under a beam.

What are the types of travelling gantry cranes?

The primary types of travelling gantry cranes are full gantry cranes, semi gantry cranes, and portable gantry cranes.

Why are travelling gantry cranes important?

Travelling gantry cranes are crucial in various industries such as construction, manufacturing, and shipping. They help move heavy objects with ease, improving efficiency and safety.

How do you operate a travelling gantry crane?

Operating a travelling gantry crane requires adherence to safety procedures. It's also essential to perform regular maintenance to ensure optimal performance.

What is the future of travelling gantry cranes?

The future of travelling gantry cranes lies in technological advancements like automation and remote operation, which enhance efficiency and safety.
