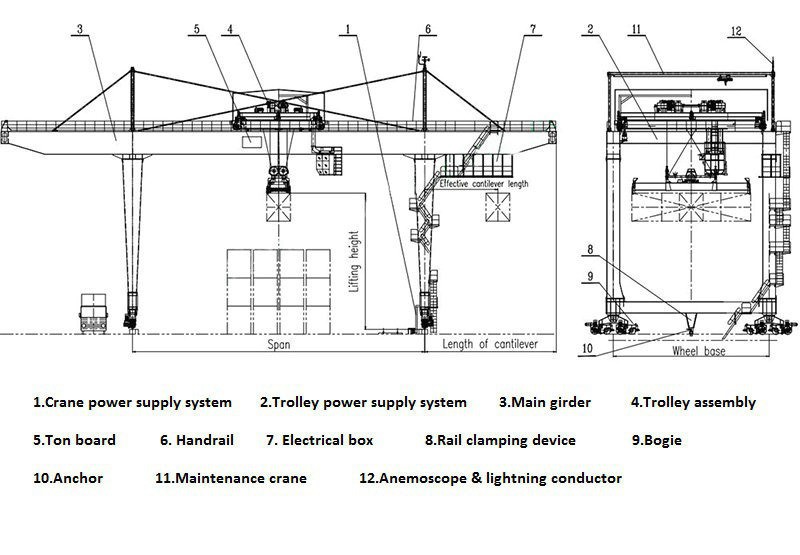

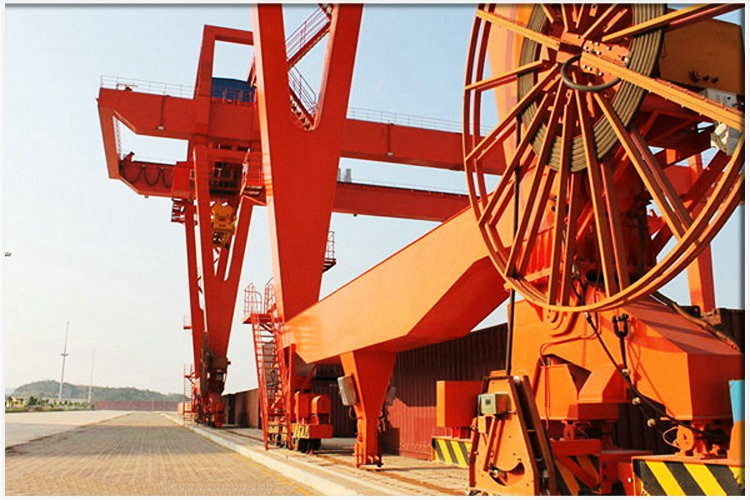

RMG container cranes is constituted by main girder, rigid and flexible outriggers, trolley travel mechanism, lifting mechanism, crane travel mechanism, electric system and operation cab.
RMG Container Crane Specification:
1. Capacity:5-50ton
2. Span: up to 40m or as required
3. Working duty: A5/A6
4. Voltage supply: 220-440V, 50/60Hz, according to local conditions.

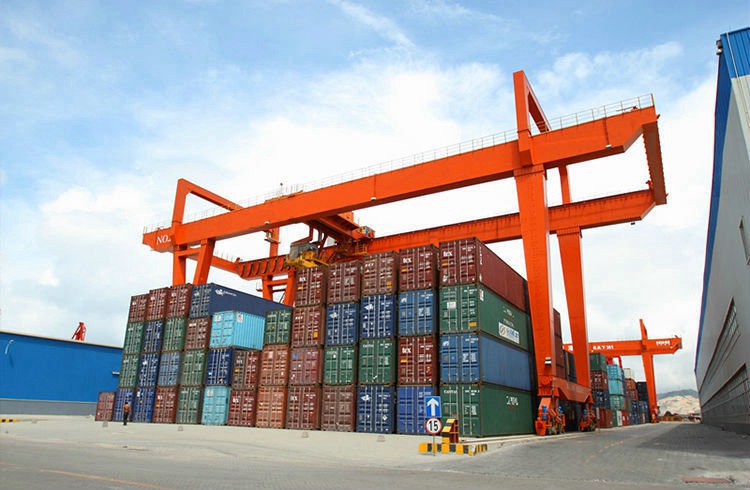

I. RMG Container Crane Structure:
Double welding box girder, DIN/FEM standard deflection, Steel tube legs. It runs on a runway at the floor level. The bridge is supported by a pair of rigid steel legs which are carried by a pair of end trucks along the floor level runway.
II. RMG Container Crane Manufacturing Details:
Whole length CNC cutting for complete web plate, high deflection accuracy
High quality automatic welding and NDT inspection. Shot-blasting Sa2.5 for complete girder after welding, stress release. Epoxy zinc rich high quality painting, 2x2 with 140μm
10.9 class High tension bolts mounting between girder and legs, life time safety connection
Vertical gear motor driving, more safety and smaller space
High protection class IP55, F class, 40% ED
III. RMG Container Crane Power supply cable and control cable along the girder
A protective earth conductor is fitted as standard, a crane switch is provided.
Travel end switches, long and cross travel limited y means of preliminary and final limited switches and overload protection.
IV. RMG Container Crane Cabin Operation Control
Two steps push button or joy stick station with emergency stop
Professional chairs, adjustable and fully turning
Easy operation
Round window, big view
End carriage equipped with anti-friction bearings, cellular buffers, derailment protectors.
Following technical specification is for reference. Spreader is for container 20`,40`and45`. | |||||||
Capacity of Spreader | t | 30.5 | 35 | 40.5 | 50 | ||
Working Duty | A6 | A6 | A6 | A6 | |||
Span | m | 35 | 35 | 35 | 35 | ||
Base | m | 16 | 16 | 16 | 16 | ||
Lifting Height | m | 15.4 | 15.4 | 18.2 | 18.2 | ||
Speed | Hoisting | With full load | m/min | 12 | 12 | 18 | 18 |
Only with spreader | 24 | 24 | 36 | 36 | |||
Traverse | 60 | 60 | 70 | 70 | |||
Traveling | 45 | 45 | 45 | 45 | |||
TotalPower | KW | ~200 | ~230 | ~255 | ~300 | ||
Max. Working Load of Wheel | KN | 260 | 260 | 280 | 300 | ||
Crane Rail | P50 | P50 | P50 | QU80 | |||
Power Supply | Three Phases,380V/50HZ or as required | ||||||
Kindly please provide the following information when sending enquiry to us:
1.Lifting capacity ______ton
2.Span _______meters (it is center to center distance between railways)
3.Lifting height ______meters (it is the distance from center of hook to floor)
4.Travelling length _____meters
5. Is the cantilever needed for the gantry crane? If yes, how long is it? Is it needed for one or two sides?
6.Industrial voltage _____V, _____HZ, 3Phases
7.Control mode
A.pendant control B. remote control C. cabin control
8.Do you also need us to supply rail and bus bar?
A.Yes B. No
9.What is the main lifting material?
