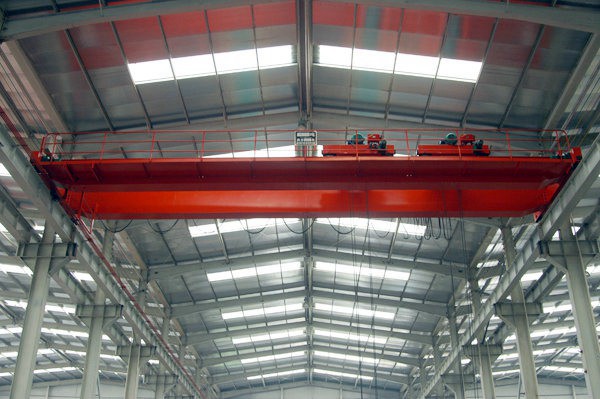

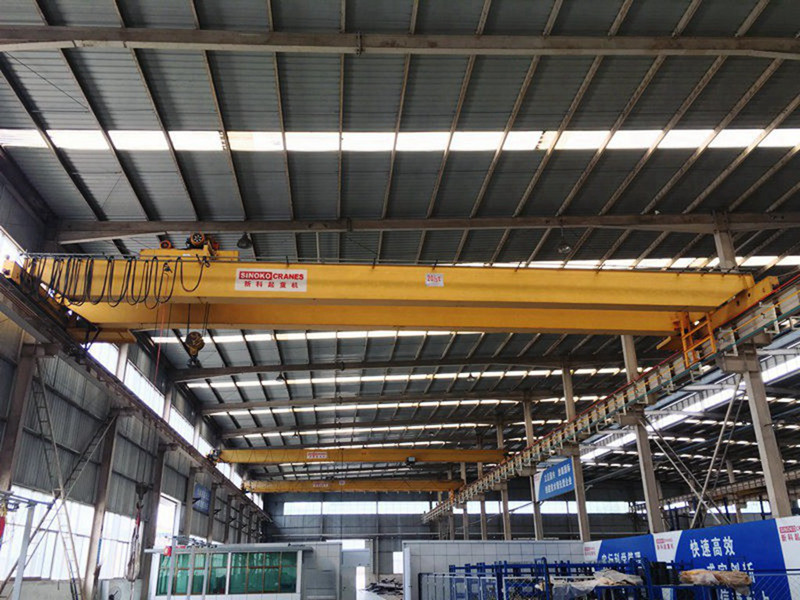

Double girder hoist EOT crane is a type of bridge crane that uses two parallel beams to support a hoist and trolley. It is typically used in industrial settings to lift and move heavy loads. The double girder hoist overhead crane is designed to provide a higher lifting capacity than a single girder crane, and is often used in applications where a large lifting capacity is required. It is also more stable than a single girder crane, making it ideal for applications where stability is important.
2.Lifting height limit device
3.Voltage lower protection function
4.Phase sequence protection function
5.Emgergency stop function
6.Hooks with latch
7.Rubber buffers
Advantage of Double Girder Hoist EOT Cranes Parts
1.Advantage of Compact Gear Motor
Smooth traveling and lifting work,
Low Dead Weight
Low Noise
German Quality, Safety and Durabl
2.Advantage of Limit Switch
Safe Limit Switch for Lifting and Traveling
Incase of load crash the top of lift mechanism
Incase of trolley or Crane crash to the end of track.
3.Advantage of Small and high strength Wheel
Small euro-type wheel help lowen the whole dead weight of the overhead crane
Advanced Wheel shape design lower the noise and make the traveling more smoothly
4.Advantage of Aviation Revos
With this Aviational Revos, the Electrical box has a higher protect class, Safety and Reliable
5.Advantage of Hook
DIN standard hook with block
High strength and with cover, Beautiful and pratical
Lifting Capacity(T) | 5 | 10 | 16/3 | 20/5 | 32/10 | ||
Speed | Main hook Lifting | 8 ,(8/0.8) | 7,(7/0.7) | 3.5(3.5/0.35) | 3.5 | 3,(3/0.3) | |
Aux. hook Lifting | / | / | 8,(8/0.8) | 8,(8/0.8) | 7,(7/0.7) | ||
(m/min) | Hoist trolley traversing | 20 | 20 | 20 | 20 | 20 | |
Crane travelling | Floor control | 20,30 | 20,30 | 20,30 | 20,30 | 20,30 | |
Cabin control | 45,60 | 45,60 | 45,60 | 45,60 | 45,60 | ||
Lifting height(m) | 6,9,12,18,24,30 | 6,9,12,18,24 | |||||
Span(m) | 7.5,10.5,13.5,16.5,19.5,22.5,25.5,28.5,31.5 | ||||||
Working duty | A5 | ||||||
Power supply | 380V 50HZ three phase or according to your demand | ||||||
Width of rail(mm) | 50,60,68,70 | ||||||
(Depending on the span and lifting weight) | |||||||
