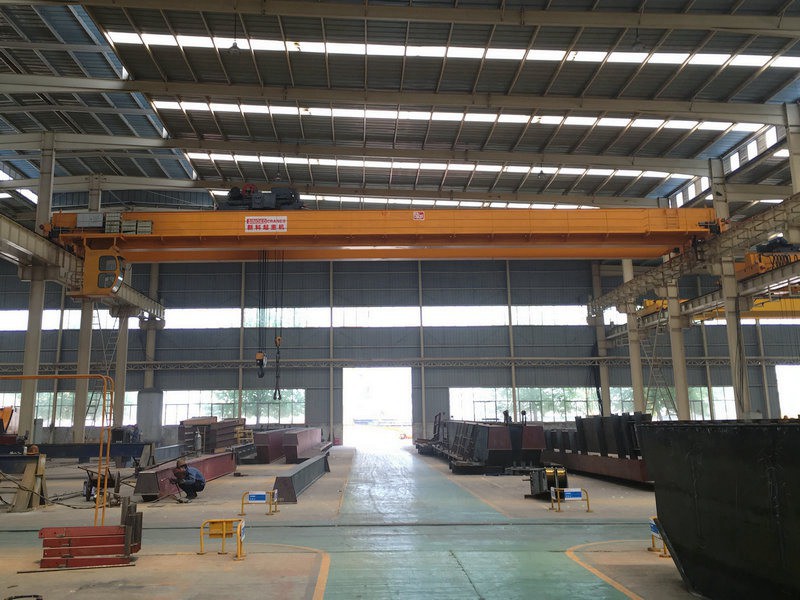

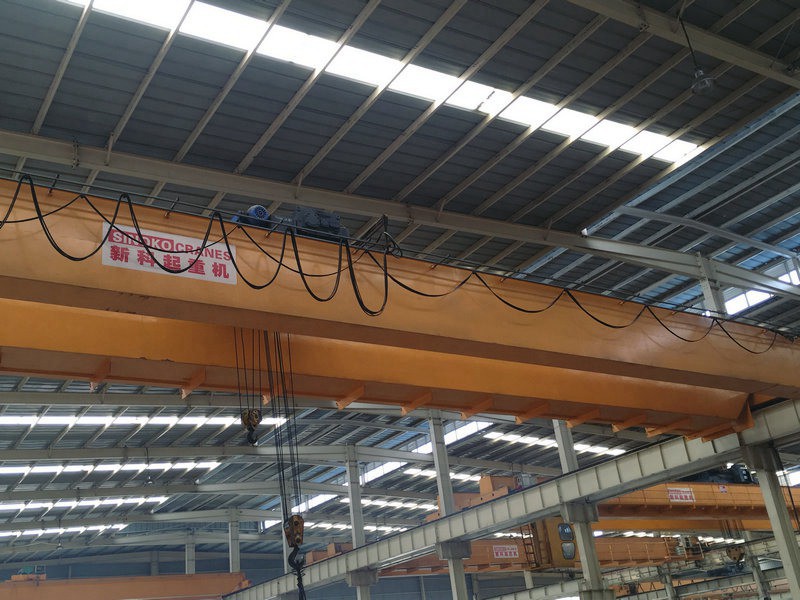

Double Girder Overhead Traveling Crane

European type Double Girder Overhead Traveling Crane have such design concepts as small dimension, light dead weight. Compared with traditional cranes, the limiting distance is minimum from hook to wall, and  headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace.

European type Double Girder Overhead Traveling Crane Configurations



Item

Description
Remark
Crane system
Strong main beams, double end trucks
Q235B Mn carbon structural   steel with seamless once forming technology more strong and elegant. Strong   box type with standard deflection
Wheel
Intermedium quenching by top   technique machinery
Lifting trolley
Work duty:A5
Independent double   electro-hydraulic drum brakes, reducer, drum, motors; Insulation IP 54 high   class;
Protection H class
Motors on   trolley
Wuxi Xindali
Gear box
Tongli
Buffer
Used for anti-collision


High Security

a).The safety supervises system equipped with overload limiter, and on the monitor it can display the loads value, it can remind the operator to prevent the overload.

b).Before the start, the entire controller will start self checking, includes: power voltage, default phase, the effective of each safety protective device and zero position of the button.



High Reliability

a).Imported motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.

b).Germany imported reducer, harden face gear, improve the bearing ability, better sealing of the shell, ensure there no grease penetration.

c).The main electric elements adopts the international brands include Schneider, Siemens, ABB. The protective grade of the electric control box shall no less than IP 54.

d).The wheel forged by 65 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.

Low-energy and Maintenance-free

a).The total power of crane reduce about 30%, energy conservation and environmental protection.

b).The multi -in-one integrated transmission mechanism has less intermediate ring knot and high transmission efficiency.

c).Adopt frequency control, high and low speed ratio 1:10, work efficiency increased by more than 20%.

d).The "Maintenance-free and easy maintenance "design concept reduces customer maintenance costs.

e).It uses advanced processing technology and high -quality imported components. Its failure rate has been greatly reduced compared to traditional GB crane, helping customers reduce operating costs.


Capacity

(kg)

Span

(m)

Lifting Height

(m)

Lifting speed

(m/min)

Max. Wheel Load(KN)

Total Power

(KW)

5000
10.5
9
5/0.83 Double speed
36.8
5.5
13.5
39
5.8
16.5
44.5
5.9
19.5
49
6.2
22.5
54.3
25.5
59.5
7.2
28.5
65.5
31.5
74.2
10000
10.5
9
5/0.83 Double speed
64
10.5
13.5
69
10.8
16.5
74.5
19.5
79.5
11.7
22.5
87
25.5
92.5
28.5
98.7
31.5
108.6
12.2
16000
10.5
10
5/0.83 Double speed
100
18.1
13.5
104
16.5
109
19.5
113
22.5
123
25.5
129
28.5
140
31.5
128
19.5
20000
10.5
10
5/0.83 Double speed
112
21.1
13.5
120
16.5
126.5
19.5
132
22.5
140.8
25.5
148
22.5
28.5
81
24.9
31.5
86.6
25000
10.5
10
5/0.83 Double speed
150
21.5
13.5
157
16.5
161.5
19.5
169
22.9
22.5
175
25.5
185
28.5
97
25.3
31.5
102.2
32000
10.5
9
4/0.67 Double speed
191
29
13.5
205
16.5
210
19.5
219
22.5
113.5
30.4
25.5
118.5
28.5
123
31.5
128.8
40000
10.5
9
3.2/0.5 Double speed
232
29
13.5
237
16.5
121.5
30.4
19.5
125
22.5
130.5
25.5
135.5
28.5
138
31.5
146
32.8
50000
10.5
9
2.5/0.4 Double speed
142
31.2
13.5
146
16.5
150
19.5
154.2
33.6
22.5
160
25.5
165.5
28.5
170.5
31.5
180.5
63000
10.5
9
2.5/0.4 Double speed
179
42
13.5
183
16.5
187.2
19.5
192.6
22.5
198.2
25.5
204.5
28.5
211
43.2
31.5
220.5
80000
10.5
9
2/0.3 Double speed
225
42
13.5
229
16.5
234
19.5
237
22.5
244
25.5
249
28.5
258
43.2
31.5
267



In General Technical Process Requirements of Double Girder Overhead Traveling Crane

Optimized designing, DIN/FEM standard, smaller wheel load, space saving;

Max. Safe working load 80T;

Flexible solution for all lifting needs;

Excellent driving properties, stepless control, smoothly moving;

Double welding box girder, DIN/FEM standard deflection;

Material: Fe37 or Fe52;

Whole length CNC cutting for complete web plate, high deflection accuracy;

High quality autometic welding and NDT inspection;

Shot-blasting Sa2.5 for complete girder after welding, stress release;

Compacted gearmotor driving, stepless control, hardern gear, safety disck brake ;

High proection class IP55, F class, 40% ED;

10.9 class High tension bolts mouting between girder and legs, life time safety connection;

Shot-blasting Sa2.5 for complete girder after welding, stress release;



Electrification and outfitting:

Conduct power supply;

Phase control guard opens the main contactor in case of phase failure;

The flat cables used for festoons are PVC insulated flexible flat cables rated for 450/750V, specially designed for cranes, hoists;

clean and smooth flat cable power supply system ;

Cables are coded either with numbers, colours or tags for easy identification;

All hoist and crane movements are independent and can be run simultaneously;

The control panels are finished to withstand corrosion, IP55;

The components are positioned in a maintenance friendly way, and the whole layout provides good protection against accidental contact;

The multi-wire type fixed cables with plastic insulation are intended for crane usage;
