Steel Coil Crane

Sinokocranes manufactures a complete line of coil lifting equipment engineered to meet a variety of dimensional, capacity and special application needs. Quality-built throughout, these crane lifting attachments will provide years of continuous, safe, efficient coil handling.

A wide range of lifting devices can be attached to the hooks: magnets, C-hooks, hydraulic tongs and more. The slewing function can also be provided with a lifting device.

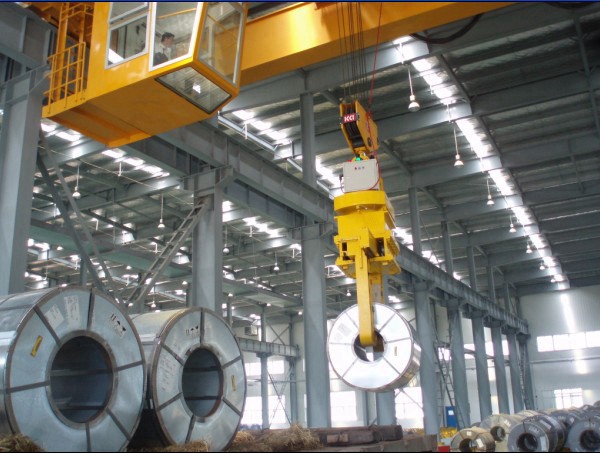

Steel coil crane can be controlled with a radio remote controller or in a cabin. Manual, semi-automated and fully automated functions can be provided.

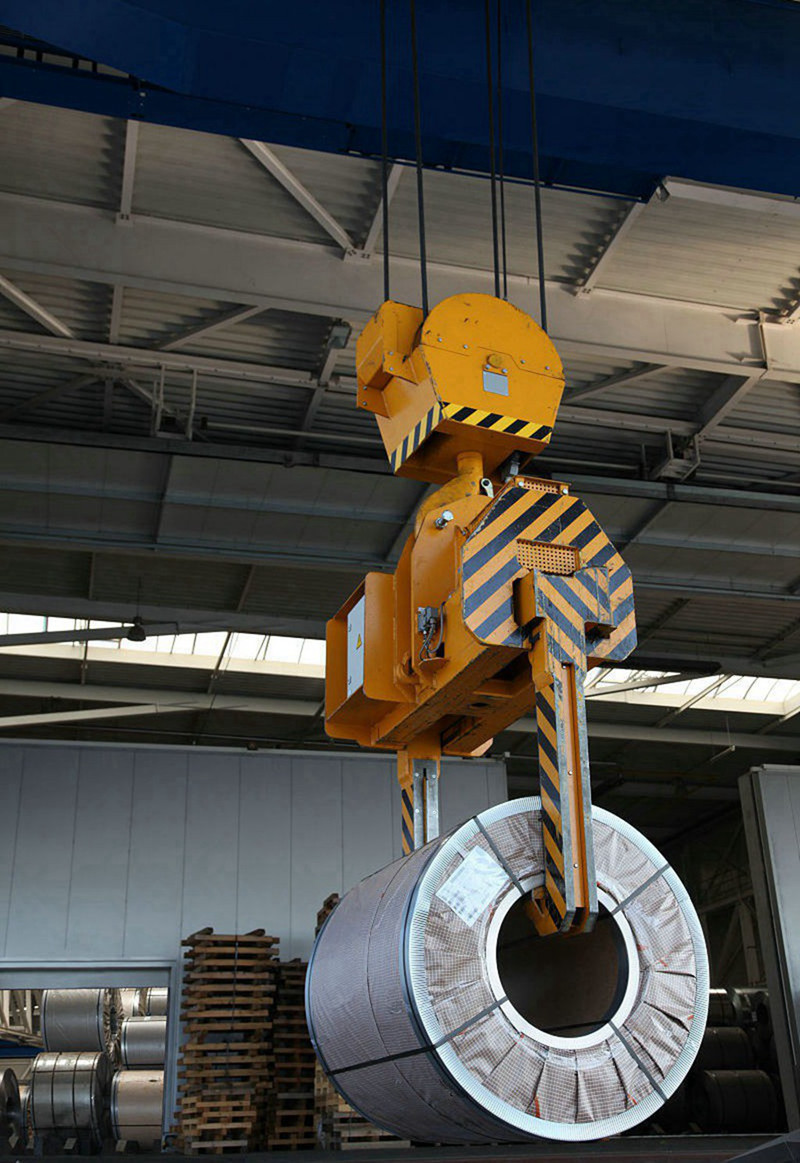

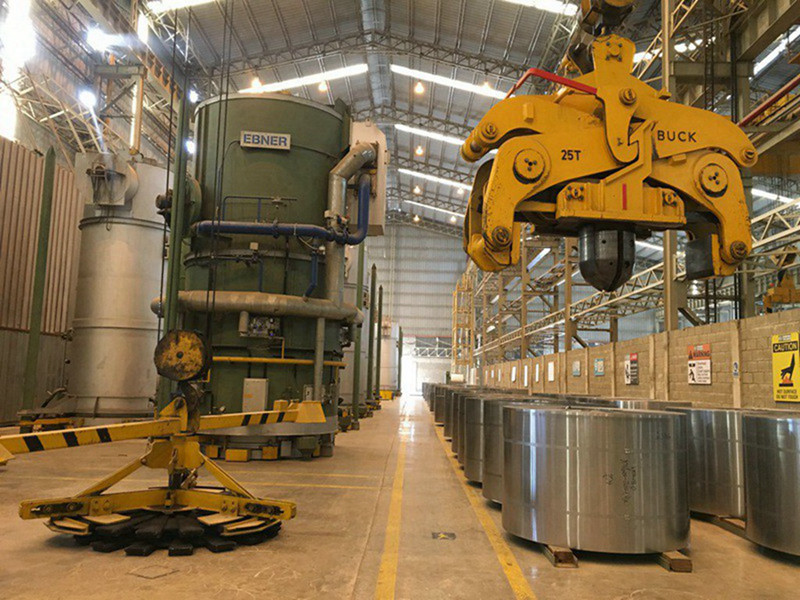

For steel coil crane, we use mechanical coil lifter/hook with best quality. You can choose C hook or electrical coil hook for high efficient working performance.

Coil Lifter Choice:

1.Normall Temperature Type Hook:

Could design according the lifting material size, weight ,package situation etc. Working temperature is from 0~100°C.

2.High Temperature Type Coil Lifter :

This type is normally used for hot rolling workshop, working in high temperature it would be up to 700°C.

Steel Coil Handling Overhead Crane Technical Features:
1. Strong box type, welding by machine hand.
2. Wheels, wirerope drum, gears, couplings are manufactured by our CNC manchine center, TOP quality control.
3. Heavy duty motor,  ABB, Siemens and SEW
4. Siemens main electric system.
5. Surface treatment: Sand blasting
6. Pendent control, wireless, cabin control.
