grab crane

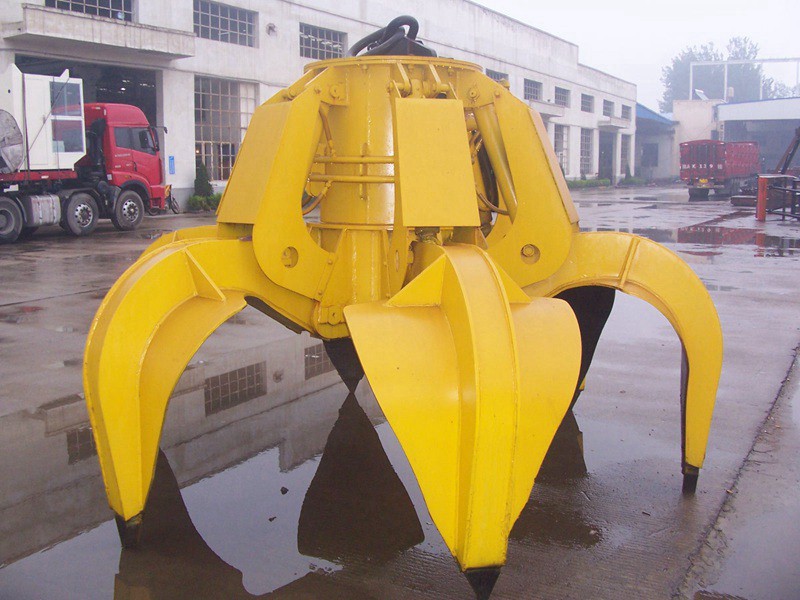

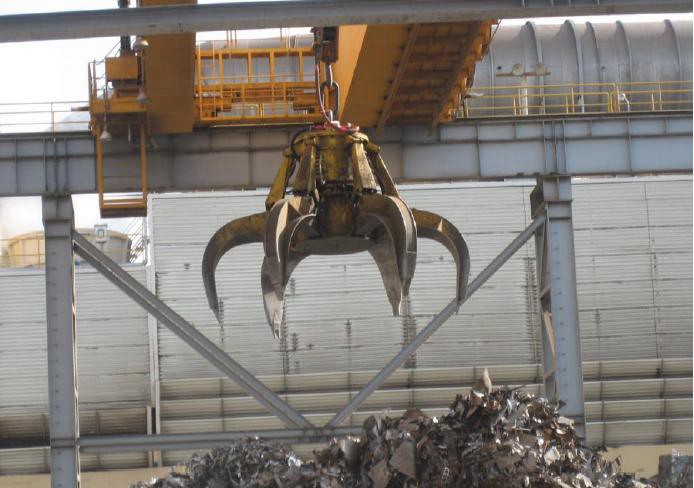

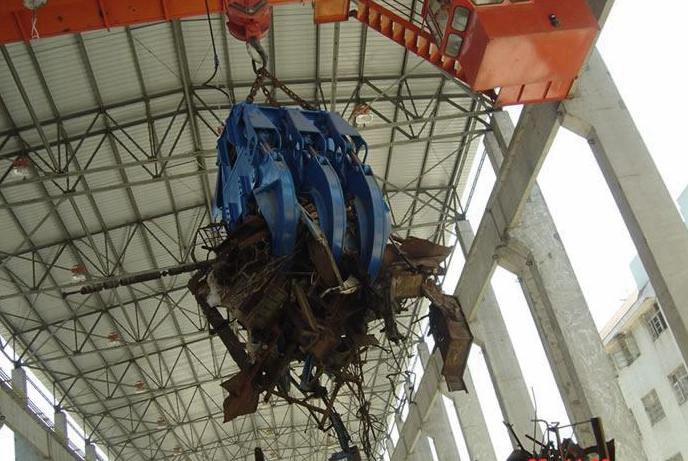

The hydraulic grab bucket overhead crane has the lifting capacity around 5 to 25 tons together with the weight of the grab bucket, which is widely used in power station, storage, workshop, and port to load and unload scattered objects.

Grab bridge crane utilized for medium to heavy fabrication. These crane grab bucket are ideally suited to low buildings, where crane magnet is required.

The top running configuration is best used in cases where the end user has issues with headroom. The most space efficient configuration is the double girder, top running crane system.

 Crane traveling limit switch

 Weight overload protection device

 Lifting height limit device

 Voltage lower protection function

 Phase sequence protection function

 Emergency stop function

 Rain cover for outside hoist, driving units, electrical cubicle.

 Warning indicator: flashing lights and warning sound.

 Wireless infra-detector for anti-collusion

Lifting Capacity (T)			5	10	16	20
Max.Lifting Height (M)			20	18	22	26
Span(M)			10.5-31.5
Working System			A6
Speed (M/Min)	Trolley	Hoisting	40.1	40.7	41.8	48.6
	Trolley	Travelling	44.6	45.7	43.2	43.2
	Bridge travelling		93.7-114.4	112.5-101	98-87.3	87.3
Weight (T)	Trolley		5.2/5.9	8.2/9.1	14.8/15.9	19.3/20.4
	Total	Indoor	19.9-41.3	26.5-50.4	47.3-67.9	56.1-75.6
	Total	Outdoor	20.7-42.1	27.4-51.2	48.5-69	57.3-76.8
Grab	Volume (CUM)		2.5-0.75	5-1.5	8-2.5	10--3
Grab	Dead weight (KG)		2632-2546	4800-4793	7841-8305	9812-10123
Rail recommended			43kg/m, QU70
Power Source			3Phase AC 220V~480V 50HZ/60Hz

Get In Touch

Our teams are on hand to provide you with the right lifting solutions.

FEW TIPS

1.Load capacity: ton?

2.Span of the crane: m?

3.Max. lifting height of the crane: m?

4.What materials will be handled: ?

5.How many hours will the crane work per day: ?

6.Traveling distance of the crane: m?
