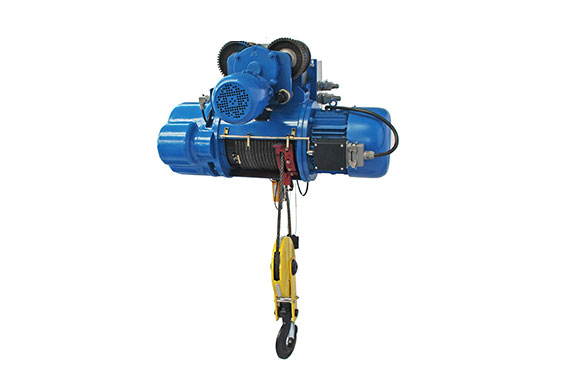

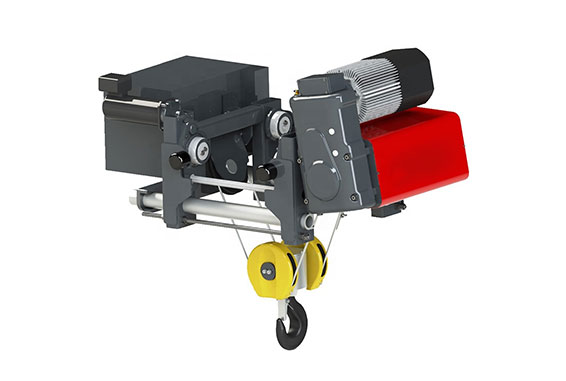

The 10 ton electric hoist crane consists of a sturdy frame, a traveling mechanism for horizontal movement, and a hoisting mechanism for vertical lifting. The electric hoist is designed to handle heavy loads with ease and provides reliable performance.
1. Hoist motor: Crane uses sturdy cylindrical/ conical rotor pole-changing motors with elegant continuous cast aluminum sections, integrated safety brakes insulation class F, IP54 protection;
2. Limit Switches : To prevent over hoisting & over lowering of hook;
3. Soft Starts : Electric / Electronic soft start modules electrically coupled to the long travel drives to achieve jerk free, cushioned & smooth starts;
4. Maintenance Platform With Hand Railing : Easy, simple and safe maintenance of the crane extended partially or totally along the girder;
5. Painting: Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing.
1. High reliability, safety, free maintenance rate;
2. Compact design, small size, low dead weight, low headroom, low noise;
3. Power-saved. The total motor power is much lower than normal design;
4. Main girder uses bias-rail box type structure, with optimized design and light dead weight.
| Span | up to 35 m |
| Lifting speed | 5/0.38 m/min or customized |
| Traveling speed | 0~40 m/min |
| Cross Speed | 0~100 M/Min (VVVF) |
| Working Class | M3-M6 |
| Specification | CE, ISO |
Sinoko, with its expertise in crane design and manufacturing, offers high-quality electric hoist cranes with a 10-ton capacity. Our cranes are built to meet industry standards and undergo rigorous quality inspections to ensure optimal safety and performance.
If you require a dependable and efficient lifting solution for your operations, contact us today to learn more about our electric hoist crane with a 10 ton capacity. Our knowledgeable team will provide you with the latest pricing and assist you in finding the right crane for your specific requirements.
