Compared with traditional cranes, the limiting distance is minimum from hook to wall, and headroom is the lowest, which makes cranes work more close to the front, and lifting height more higher that increases effective working space of workplace.

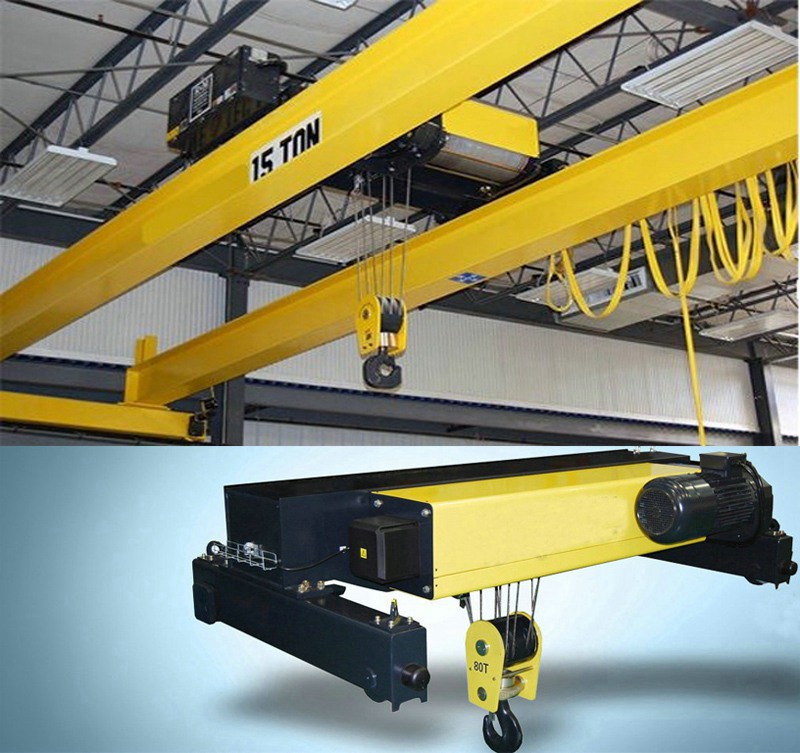

The lifting trolley uses XKD electric hoist and double beam trolley to make sure the quality best. The configurations are very advanced, such as Schneider electrical, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on.
1) Optimized designing, DIN/FEM standard, smaller wheel load, space saving
Capacity （t） | Span （m） | Liftingheight（m） | Liftingspeed （m/min） | Max.wheelload （KN） | Totalpower （KW） | Totalweight （T） |
5t | 10.5-31.5 | 9 | 5/0.83 | 36.8-74.2 | 5.5-7.2 | 3.9-19.6 |
10t | 10.5-31.5 | 9 | 5/0.83 | 64-108.6 | 10.5-12.2 | 5.8-20.8 |
16t | 10.5-31.5 | 10 | 5/0.83 | 100-128 | 18.1-19.5 | 6.8-25.8 |
20t | 10.5-31.5 | 10 | 5/0.83 | 112-86.6 | 21.1-24.9 | 7.4-28.3 |
25t | 10.5-31.5 | 10 | 5/0.83 | 150-102.2 | 21.5-25.3 | 9.3-30.2 |
32t | 10.5-31.5 | 9 | 4/0.67 | 191-128.8 | 29-30.4 | 10.2-32.8 |
40t | 10.5-31.5 | 9 | 3.2/0.5 | 232-146 | 29-32.8 | 11-35.1 |
50t | 10.5-31.5 | 9 | 2.5/0.4 | 142-180.5 | 31.2-33.6 | 12.9-42.6 |
63t | 10.5-31.5 | 9 | 2.5/0.4 | 179-220.5 | 42-43.2 | 14.3-46.9 |
80t | 10.5-31.5 | 9 | 2/0.3 | 225-267 | 42-43.2 | 17-50.3 |
About Sinokocranes
Sinoko is a leading Chinese overhead bridge crane manufacturer with over 15 years of experience. Our CXTD double girder cranes are known for high performance, safety and reliability.
Automated Production Equipment
Project Case
Product Certificate
Our crane products are CE certified, ensuring that they meet the safety, health, and environmental protection standards required within the European Economic Area.
Quality Control Management
Contact Sinoko today to discuss your heavy lifting requirements and to receive a customized proposal and quotation for a double girder crane solution.
