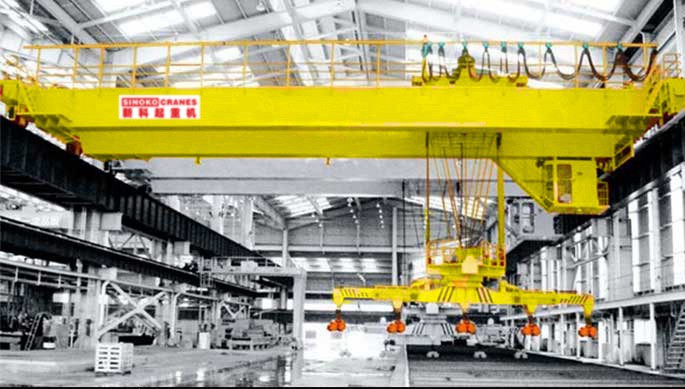

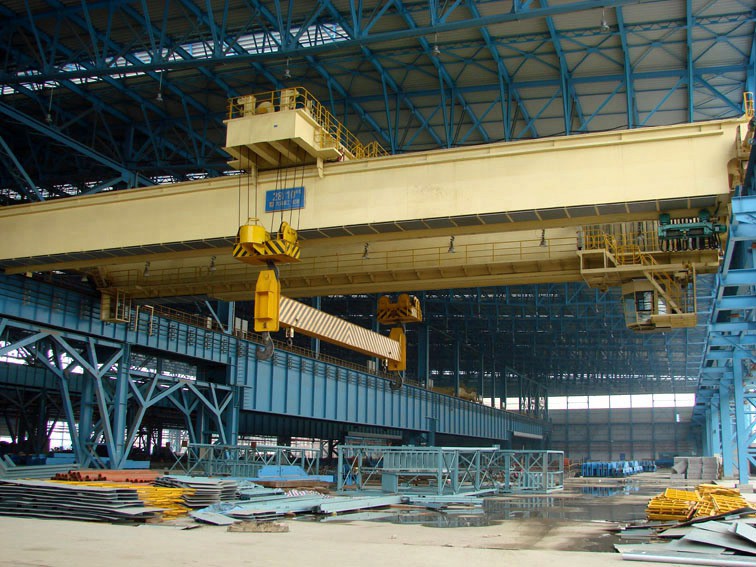

Electromagnetic Hanging Beam Overhead Crane

An electromagnetic hanging beam overhead crane is an essential piece of engineering equipment in many different industries. It is designed to provide a safe and efficient way to move large and heavy items from one location to another. This type of crane is usually referred to as an EHBOC (electromagnetic hanging beam overhead crane).

Electromagnetic hanging beam overhead crane mainly consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnet. When used, the rotary part of the hanger of electromagnetic disk must be locked up with screws and no rotation is allowed.

The main component of an EHBOC is the electromagnetic suspension, which consists of two beams that are suspended above the ground. These beams are typically constructed with steel or aluminum and are fitted with electromagnets. The magnetic field created by the electromagnets allows the EHBOC to stay in place while still moving items along its track.


This type crane is heavy duty type with working duty is A6~A7, crane lifting capacity includes the dead weight of magnetic lifters.

Main Crane Parts Information

The material of steel plate adopts Q235B, if working temperature lower-20℃ or higher +40℃,adopts Q345 steel, all steel plates are under the process of rolling, shot blasting and rust removal, then paint primer.






Trolley

It is the lifting mechanism, lifting good up and down, travelling along the crane girder/ beam from the left side to the right side. It consist of motor, reducer, brake, drum, hook, coupling, hoist structure. We can separately supply electric crab/hoist for clients.


Motor

The slip ring motors are used specially for crane, suitable for frequent starting, reversing & braking in accordance with ISO 9001:2000 ISO 14001:2004. Motors are totally enclosed in dust proof construction foot / flange mounted TESC / TEFC, Sq. cage motors with integrated safety brakes, insulation class F, IP54 protection for hoisting, CT & LT motions.


Gear Box

The entire gear boxes are made of accurate hob cut helical / spur gears &   pinions having hardness 250 to 350 BHN made from carbon alloy steel. All   gears & pinions running on antifriction type ball/ roller bearings in   totally enclosed oil bath giving constant splash lubrication. The   helical/Spur gear designed for adequate strength and optimum wear resistance   for smooth operation & long life.


Brakes

Independent Hydraulic Brake make the crane much safe and easier to control



Control box & cable

The surface of control box under anticorrosive treatment with reasonable layout   and convenient maintenance. All the cables have color, number or with wire   marking, which are easy to identify.
The jointing part of plug adopts plastic tube with insulation   protection.
Trolley traveling mobile power supply system adopts crane special used PVC flat cable, withstand voltage class can up to 450/750V, equipped with galvanized slide rail and cable pulley with smoothly sliding.


Control mode

Operator cabin

Wide vision, safety, comfortable
Can equip with air condition, cooling fan, heater, interphone…

Pendant control
Easily control and no need to set professional operator

Remote control
Easily control and no need to set professional operator, the operator can   control the crane on the ground more freely.





Safety Features Of Electromagnetic Hanging Beam Overhead Crane


  1. Limit Switch

    Safety limit switches for stoppers will be provided to prevent over traveling in all motions.

  2. Anti collision device

    When several units of crane travel on the same railway, the cranes can install the following devices:

    Anti-collision device,
    Infrared non-contact and inductive type limit device
    Sound and light alarm device
    Wireless anti-collision device
  3. Weight overload protection device

    When the crane overload works, it equipped with weight overload protection device, includes automatic stopping type lifting weight limiter and weight display device.

  4. Lifting limit switch and traveling limit switch
  5. Emergency stop system
  6. Electrical protection
    The main insulation switch, emergency stop switch, short circuit, Zero voltage protection, zero position protection, loss of field protection, Current overload protection, over speed protection, Phase sequence protection and adopted crane specially anti- vibration contactor etc. are all equipped, fully implement safety first concept.
  7. Interlock device
    It sets interlock device for the cabin door and the other door from cabin into bridge structure, when the door is opened, the crane can not work.
Capacity
t
5
10
16/3.2
20/5
32/5
50/10
74/20
Span
m
10.5~31.5
13.5~31.5
Max. Lifting Height
Main hook
m
16
16
16
12
16
12
22
Aux hook
18
14
18
16
24
Speed
Main hoist
m/min
15.5
10.4
10.7
9.8
7.8
7.8
6.1
Aux hook
14.6
15.5
15.5
10.4
9.7
Trolley travelling
37.2
43.8
44.6
44.6
42.4
39.3
33.8
Crane travelling
92.7
93.7
92.7
93.7
86.5
76
89
76
89
89
75.3
75.3
75
76.6
67.3
Power supply
3-phrase 50HZ 220V~480V according to   your requirements
Working Environment
The temperature of working environment is -10~+60℃;
The relative humidity is no more than 50% when the temperature is +40℃
