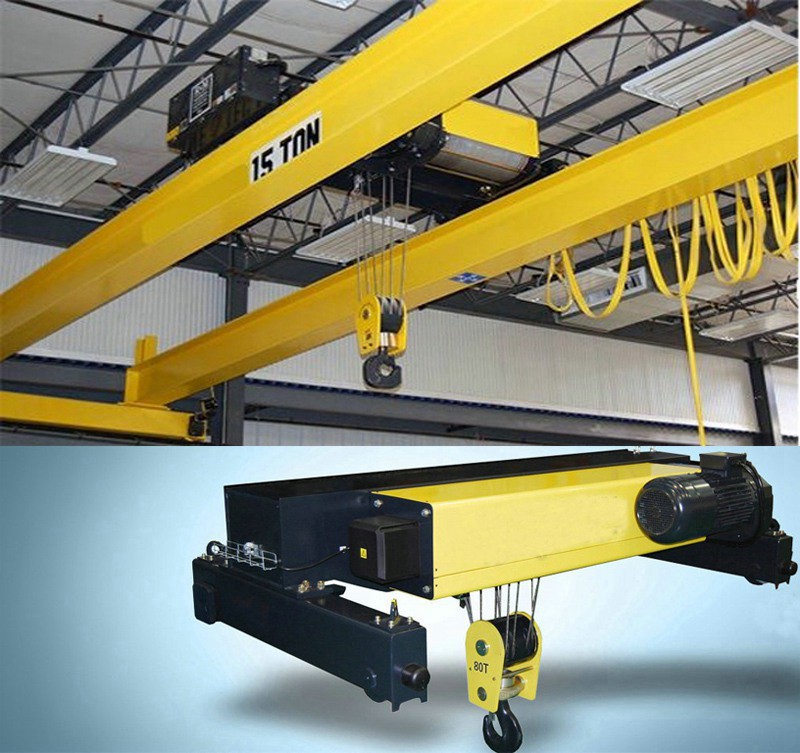

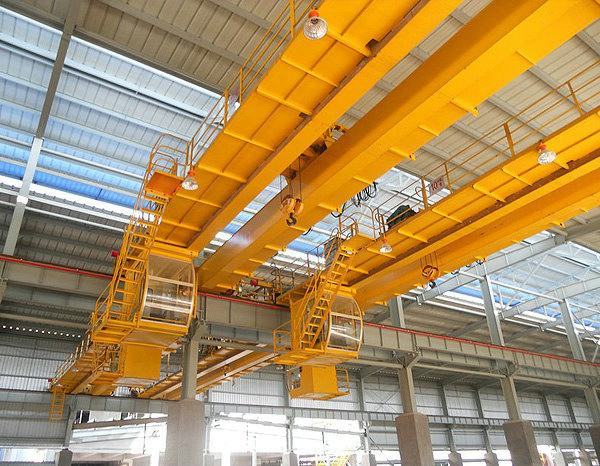

The double girder hoist overhead cranes is the crane with a hoist traveling along the bridge between two parallel runways. CXTD wire rope hoists cranes up to 20 tons. We also offer CXTS hoist trolley up to 80 tons cranes as well as cranes specifically designed for hazardous environments and anti-explosion condition. With our overhead crane system you will have total control over material handling in your production process.
Loading capacity | 5 ~ 80t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Customized or vary with the lifting capacity |
Span | 10.5~31.5 m |
Lifting mechanism | European hoist |
Working class | A5 ~ A8 |
Working temperature | -20 ~ 40 ℃ |
Power supply | AC-3Phase-220//230/380/400/415/440V-50/60Hz |
Control voltage | DC-36 / 48V |
Motor protection class | IP54 IP55 IP65 |
Control method | Cabin, wireless remote, pendant push button. |
Safety device | Buffer, current overload protection, overload device, power failure protection |
Application area | Factory, workshop, warehouse, power station, logstic,etc. |
Painting color | Yellow, Red or Customzied |
SINOKO Overhead crane are designed to meet the industrial requirements from light to heavy, covering all parts of the manufacturing area and process. consist of a wide range of cranes including hoisting winch with lifting capacity up to 300 tons, If you would like to learn more about our products, please contact us for more information.
