electromagnet crane steel foundry

Electromagnet crane for scrap charing in scrap yard and charging scrap into furnace in steel plant

Steel foundry electromagnet crane mainly consists of bridge, crane traveling mechanism, trolley, electric equipment and electromagnetic chuck, and could be classified into several working duties, e.g. A5, A6, A7, according to the working frequency and pure working time

When used, the rotary part of the hanger of electromagnetic disk must be locked up with screws and no rotation is allowed.

The crane mainly relies on the magnet, using the electromagnetic principles, then through electricity and magnetic plate to suck the goods firmly hanging to the designated place.
Cut the electricity, steel and irons will be lay down. It is the most convenient crane to transfer the scattered sheet metal.

Lifting material: cast ingot, steel scraps, steel ball, steel billets.

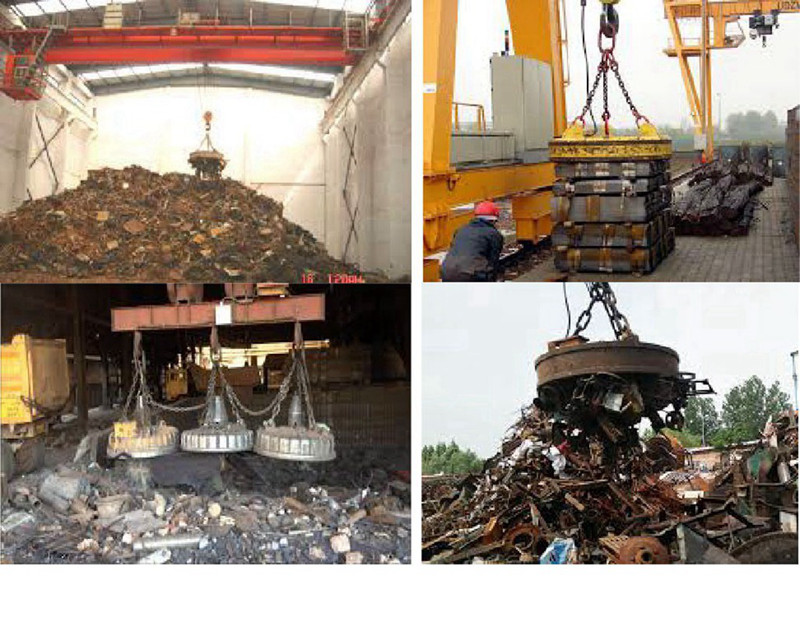

Wide use in steel plants, melting plant, waste warehouse, billet processing workshop.


High working efficiency, safe and reliable operation. Perfect performance, Low maintenance.

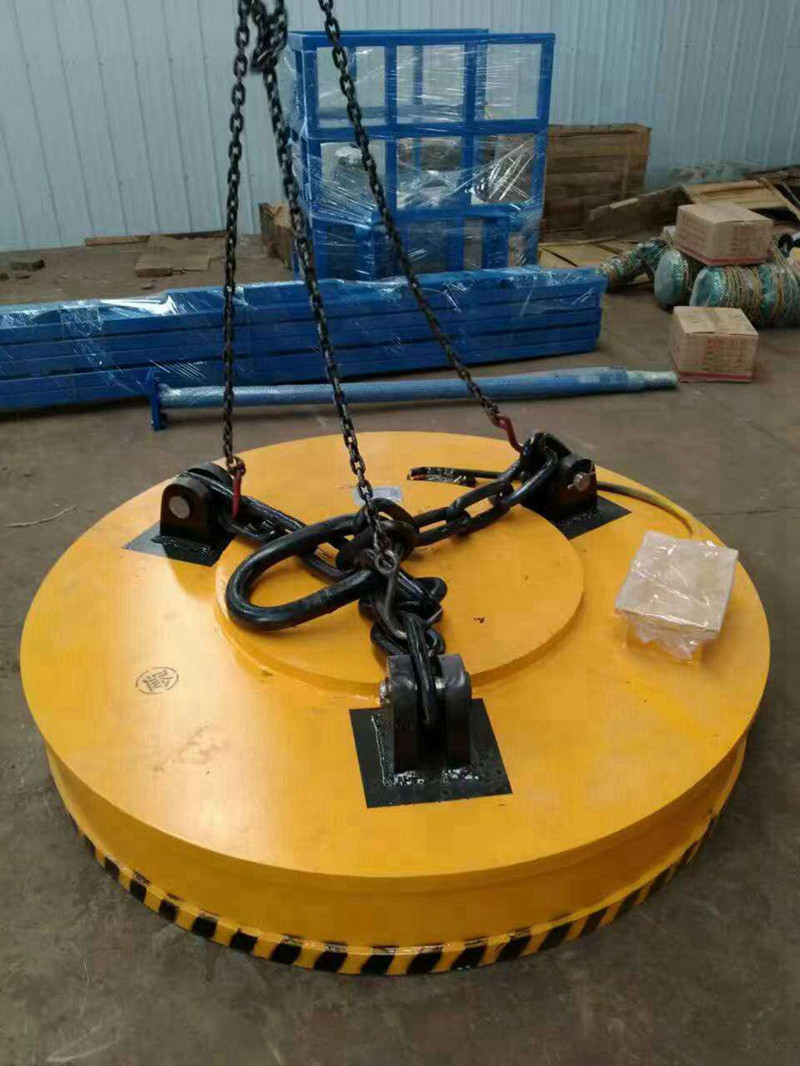

1. MW5 Series magnet to lift steel scraps,round type,dia.from 700 to 2400mm.


2. MW61 Series magnet to lift steel scraps,elliptic type,length from 1400 to 3000mm.

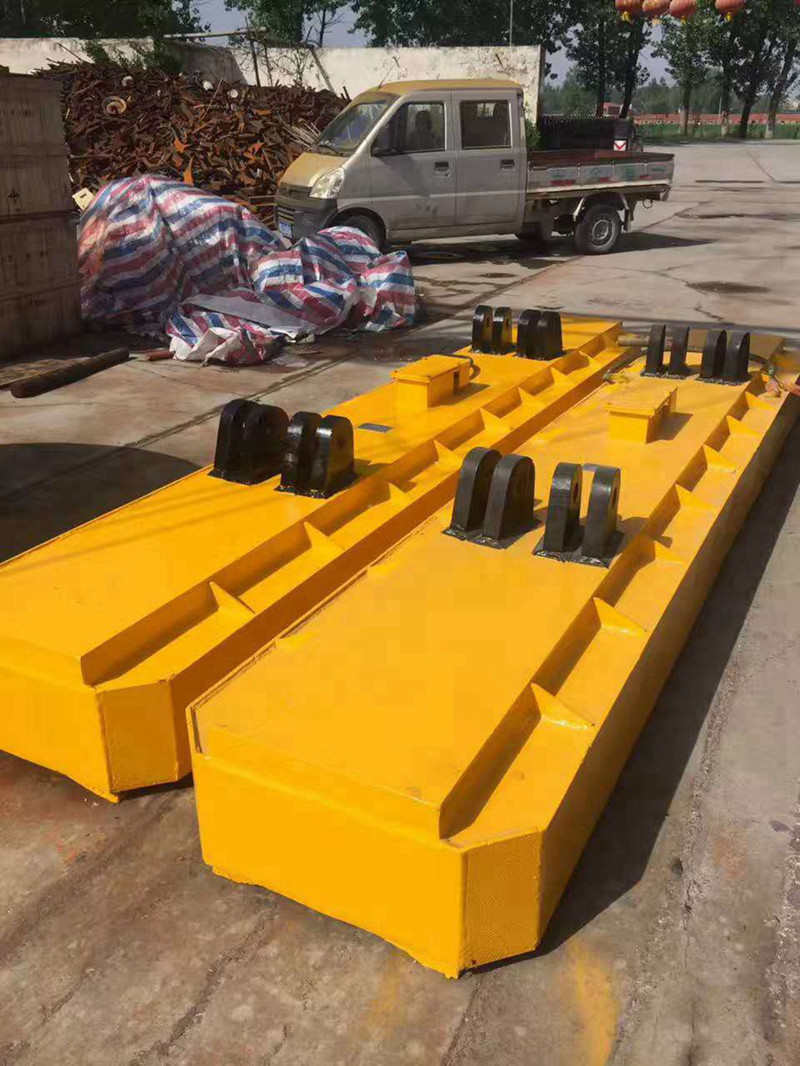

3. MW12 Series magnet to lift bundled steel bar,square type,length from 1100 to 1800mm.


4. MW22 Series magnet to lift steel ingot, square type,length from 800 to 2500mm.


5. MW42 Series magnet to lift steel billet and profile steel.


6. Temperature of lifting material is below 100'C,pls choose normal type.


7. Temperature of lifting material is below 100'C,pls choose high temperature type.


8. When power-on sustaining rate is above 60%,pls choose high frequency type.


9. When lifting and transporting material in water,pls choose diving type(depth of diving 100m),the technical data of diving type electromagnet is same as that of normal temperature type,when ordering,pls pls state clearly the details.


QC Model Electromagnetic EOT Crane

Lifting Capacity

T

5t

10t

16t

Working Duty

A6

Span

m

7.5~31.5m

Max. Lifting Height

m

16

16

16

Electromagnetic disk

Type

MW1-6

MW1-16

MW1-16

MW1-16

Suck weight

kg

4540

3330

8330

14330

Dead weight

460

1670

1670

1670

Diameter

mm

776

1180

1180

1180

Lifting Capacity

T

16/3.2

20/5

32/5

Electromagnetic disk

Type

MW5-165L6

MW5-180L

MW5-210L

Suck weight

kg

12500

14500

21000

Dead weight

3200

4230

7000

Diameter

mm

1650

1800

21000

Lifting Capacity

T

50/10

Electromagnetic disk

Type

MW5-90L

Suck weight

kg

4200

Dead weight

800

Diameter

mm

900

Steel track recommended

QU70

Power Supply

By your country 3phs voltage
