Scrap Handling Cranes


Scrap handling electromagnetic overhead crane


Load capacity: 5-50t

Span: 10.5-31.5 m

Lifting height: 6-16m

Lifting speed: 7.8-15.5m/min

Trolley running speed: 31.3-40.1m/min

Crane running speed: 58.5-70.6m/min

Work duty: A5-A7


Scrap handling hydraulic grab overhead crane


Load capacity: 5-20t

Span: 10.5-31.5m

Lifting height: 6-26m

Lifting speed: 30.7-39.3m/min

Trolley running speed: 31.1-44.6m/min

Crane running speed: 76.9-93.6m/min

Work duty: A5-A7

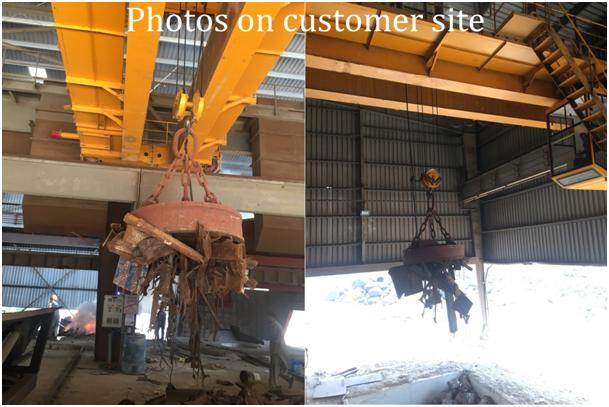

Scrap Handling Electromagnetic Overhead Crane Features


Lifting material: cast ingot, steel scraps, steel ball, steel billets

Wide use in steel plants, melting plant, waste warehouse, billet processing workshop

High working efficiency, safe and reliable operation

Perfect performance, low maintenance

Scrap handling electromagnetic overhead crane mainly consists of strong bridge beams, crane travelling mechanism, electric trolley and electric system and magnetic disk system, and could be classified into several working duties, e.g. A5, A6, A7, according to the working frequency and pure working time

It is special magnetic pole is suitable for round coil with different diameters; selection of electromagnet depends on the length of round coil. If the electromagnet is long enough at a time

Scrap handling electromagnet

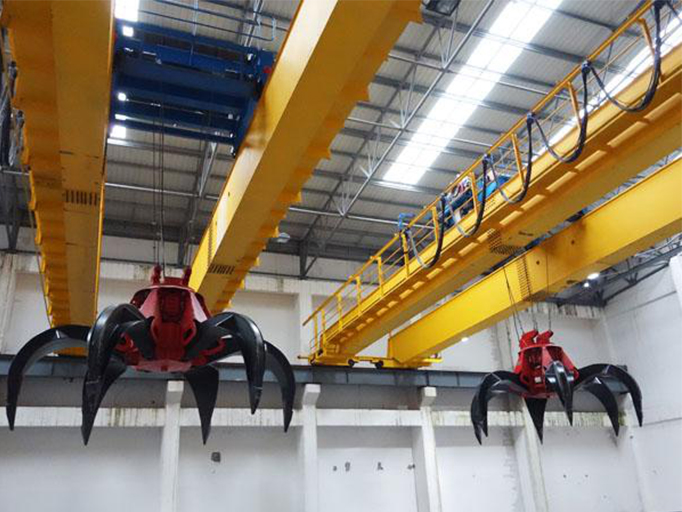

Scrap Handling Hydraulic Grab Overhead Crane Features

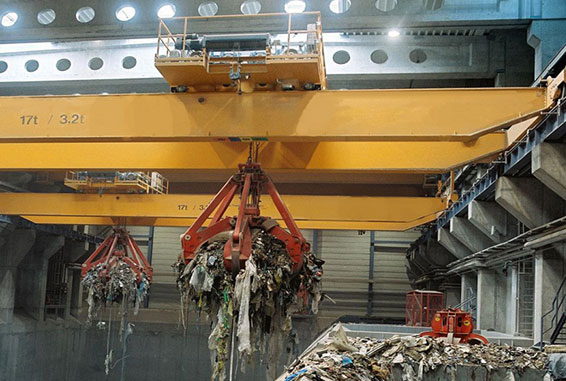

Scrap handling hydraulic grab overhead crane is the core equipment of the garbage feeding system in the municipal solid waste incineration plant, which is located above the garbage storage pit. Normally there will install 2 sets same specification garbage grab crane for feeding the boiler, mixing, stacking, moving, weighing and stirring, and make sure garbage materials into the boiler evenly.


QC Model Scrap Handling Electromagnetic EOT Crane

Lifting Capacity

T

5t

10t

16t

Working Duty

A6

Span

m

7.5~31.5m

Max. Lifting Height

m

16

16

16

Electromagnetic disk

Type

MW1-6

MW1-16

MW1-16

MW1-16

Suck weight

kg

4540

3330

8330

14330

Dead weight

460

1670

1670

1670

Diameter

mm

776

1180

1180

1180

Lifting Capacity

T

16/3.2

20/5

32/5

Electromagnetic disk

Type

MW5-165L6

MW5-180L

MW5-210L

Suck weight

kg

12500

14500

21000

Dead weight

3200

4230

7000

Diameter

mm

1650

1800

21000

Lifting Capacity

T

50/10

Electromagnetic disk

Type

MW5-90L

Suck weight

kg

4200

Dead weight

800

Diameter

mm

900

Steel track recommended

QU70

Power Supply

By your country 3phs voltage



Hydraulic Grab Specification


Volume (m3)Motor 40%ED (kw)Crane SWL (t)Grab Weight (kg)
0.57.32.5945
17.331490
21051540
2.5106.32825
314.5103040
