YC Upper Rotating Crab Electromagnet Overhead Crane is consisting of five parts: box-shaped bridge frame, cart running mechanism, trolley, electrical equipment and electric magnet. All the mechanisms are operated in the control room. When used in the open air, it is equipped with rainproof equipment.

The number of rectangular magnets below spreader beam is considered to the size of long billet need to be lifted.

Share With:


YC Upper Rotating Crab Electromagnet Overhead Crane

YC Upper Rotating Crab Electromagnet Overhead Crane is consisting of five parts: box-shaped bridge frame, cart running mechanism, trolley, electrical equipment and electric magnet. All the mechanisms are operated in the control room. When used in the open air, it is equipped with rainproof equipment.

The number of rectangular magnets below spreader beam is considered to the size of long billet need to be lifted.

Upper Rotating Crab Electromagnet Overhead Crane


YC Upper Rotating Crab Electromagnet Overhead Crane mainly employs hung girder to hoist long objects like billets, and is equipped with lifting electromagnet to hoist.

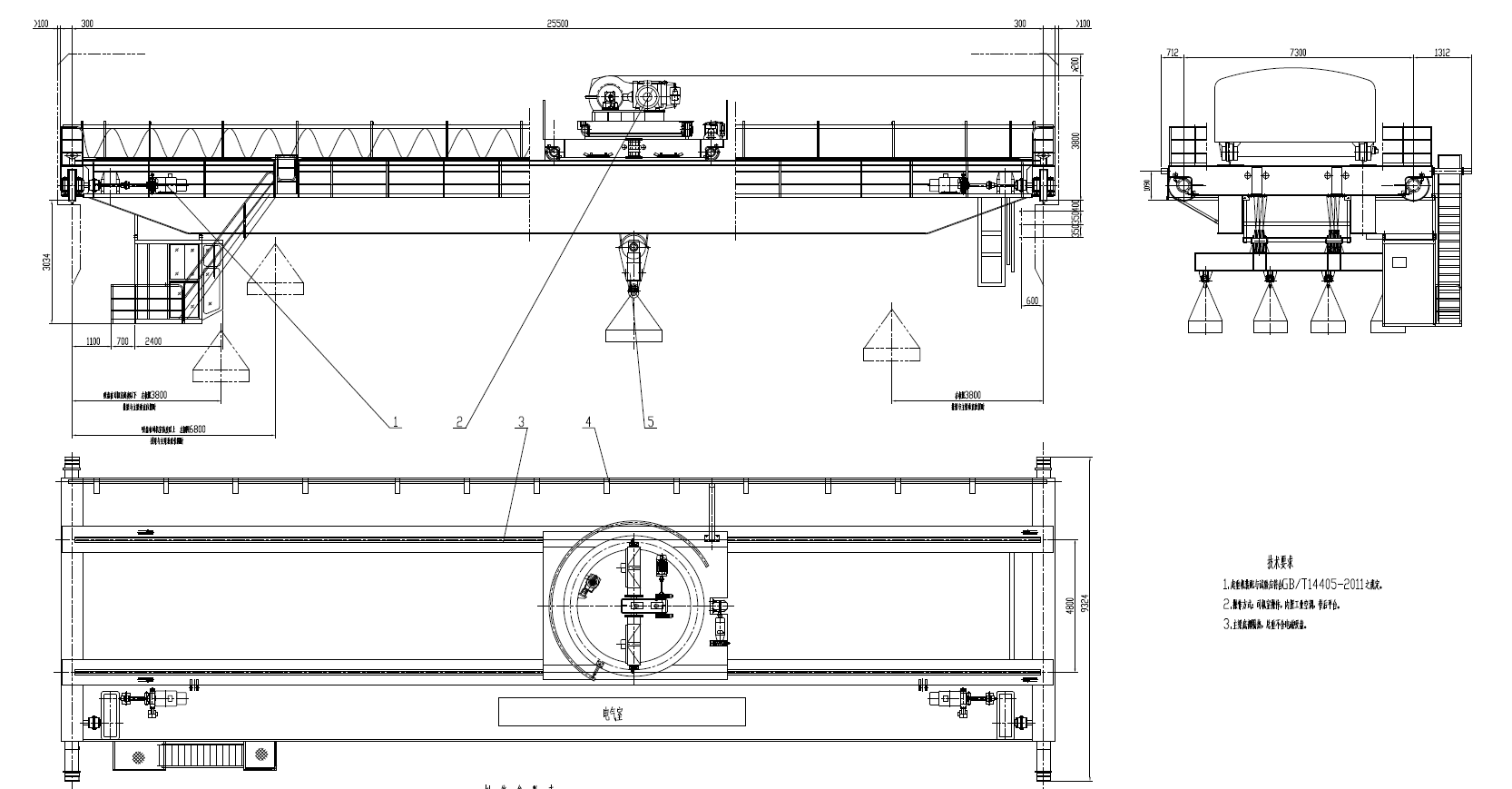

It is composed of box-shaped bridge, crane crab, trolley travelling mechanism, cab and electric control system. It is also equipped with blackout magnetic system.

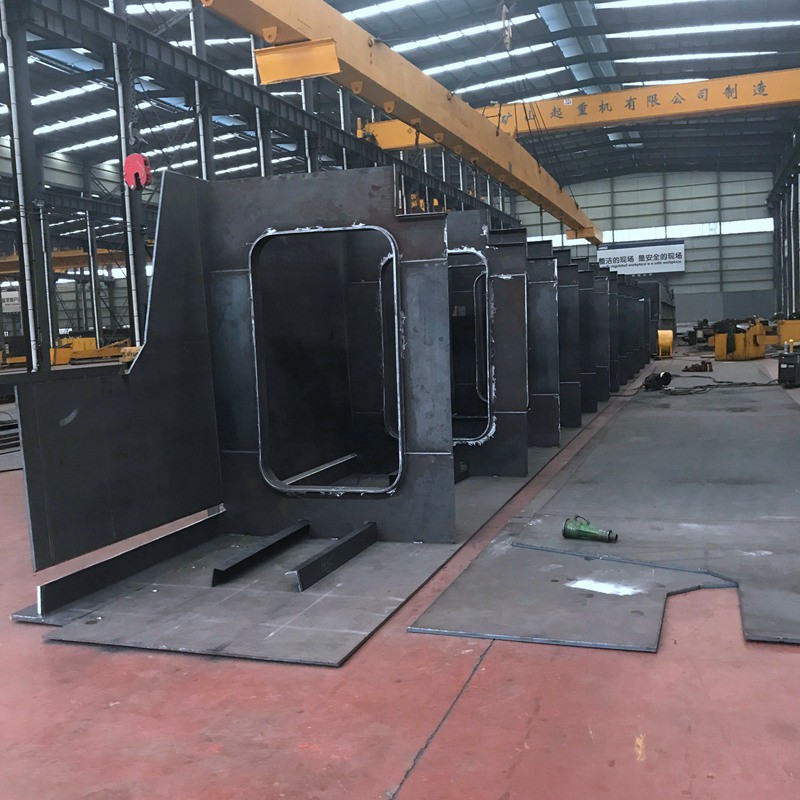

The girder is a middle-rail box girder, on which laid rails for crane crab to transversely move.


The girder is weld with the box-shaped and girder.


At the middle of the end girder are joints which are fastened with bolts for fragmented transportation of bridges.


The platform is used to place trolley travelling mechanism, electric equipments and for repair. It is furnished with protection railing outside.


The crane crab consists of upper crab and lower crab.

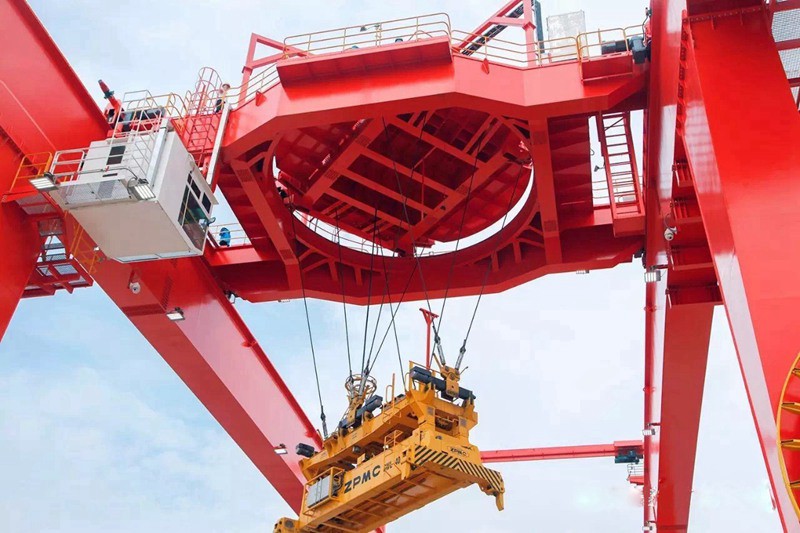

The upper crab is furnished with a circular orbit for rotating, which acts in concert with horizontal wheels to fulfill the purpose of rotating long articles.


1.Lifting material: cast ingot, steel scraps, steel ball, steel billets


2.Wide use in steel plants, melting plant, waste warehouse, billet processing workshop


3.High working efficiency, safe and reliable operation


4.Perfect performance, low maintenance


This crane mainly consists of strong bridge beams, crane travelling mechanism, electric rotating trolley and electric system and magnetic disk system, and could be classified into several working duties, e.g. A5, A6, A7, according to the working frequency and pure working time


It is special magnetic pole is suitable for round coil with different diameters; selection of electromagnet depends on the length of round coil. If the electromagnet is long enough at a time


Upper rotating trolley could save more lifting height for stock purpose, work more smoothly compare to the lower rotating mechanism.
