Steel Plant Environmental conditions:

1.The power of crane is three-phase AC; rated frequency is 50HZ; rated voltage is 380V;

2.The temperature of working environment is-10~+60^;

3.The relative humidity is no more than 50% when the temperature is+40ºC;

4.If the requirements are more than above-mentioned, it shall carry out the requirements in the purchase contract as the user asks.

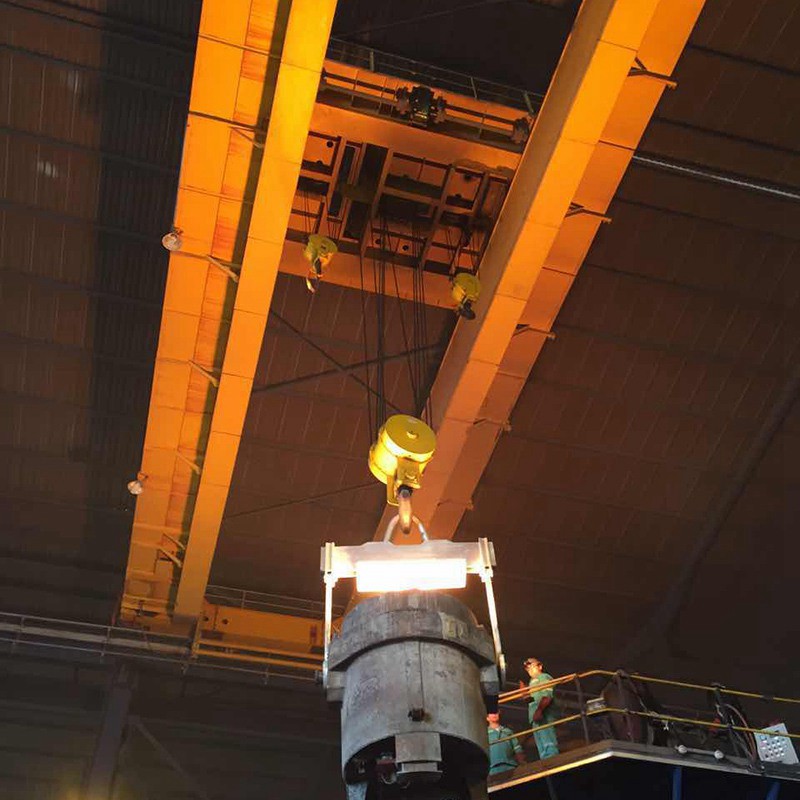

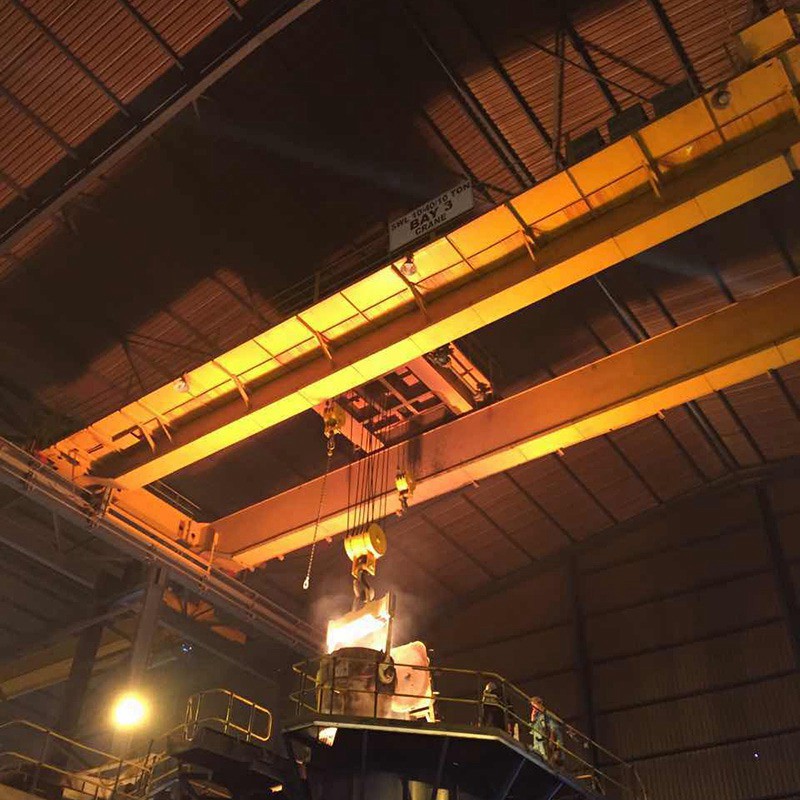

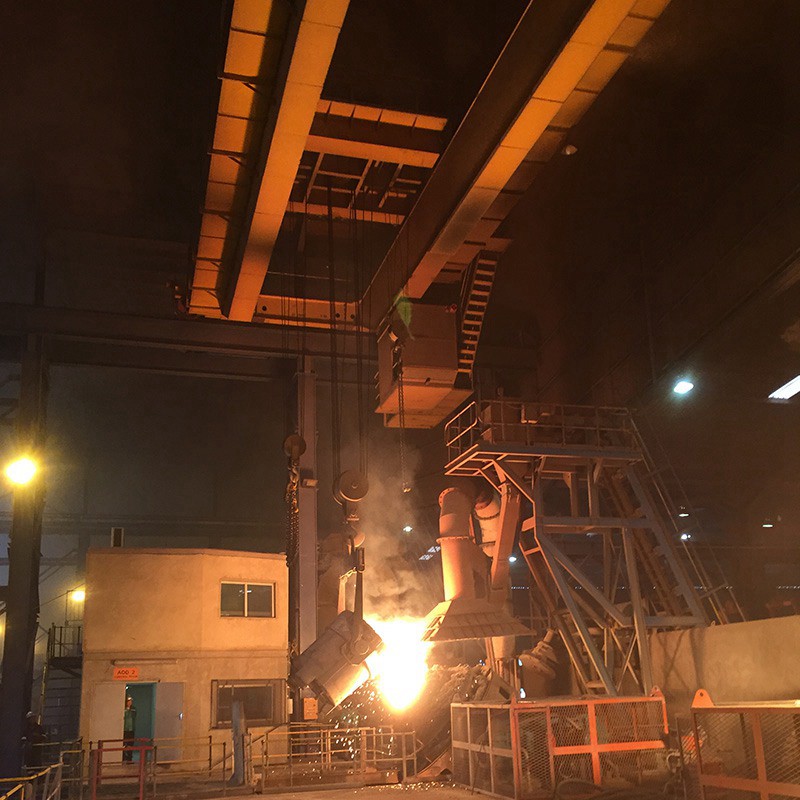

Casting crane is one of the main equipments in the continuous casting technology of steelmaking. It is mainly used for pouring melted IR on from additive bay of converter to converter; Lifting molten steel from refining bay to refining furnace or lifting molten steel from molten steel bay to ladle turret of continuous Casting machine.

Overall structure:

Two crane gider with two rail or four girder with four rail (for 125t above)
Modern cabin control with Air conditioner to aviod harsh environment
Heat resistance treatment for crane main body
Variable travelling and hoisting speed to meet acurate work.
High working class to make full load and continuous work available.
Safe, reliable, long-lasting and economical, and easy to be maintained.

Lifting Capacity		T	125/32	140/32	160/32	180/50	200/50	225/65	240/80	280/80	320/80
Span		m	19	19	27	28.5	28	27	22	22	24.5
Speed	Main Hook	m/min	7.8	9.8	7.5	6	11	7	12	7.5	7.6
	Aux. Hook		9.7	12	10	10	11	9.6	10	10	9.7
	Main Trolley		36	43.5	40	41	41	35	40	29	38
	Aux. Trolley		37.5	43.5	38	38	39.5	38	40	39	39
	Traveling of Crane		73	84	80	78	84	80	80	58	76
Max wheel pressure		KN	505	535	485	525	530	550	545	735	750
Steel track recommended			QU120
Operational Model			Cabin; remote control
Working class			A7,A8
Power Supply			380V 50HZ 3P
