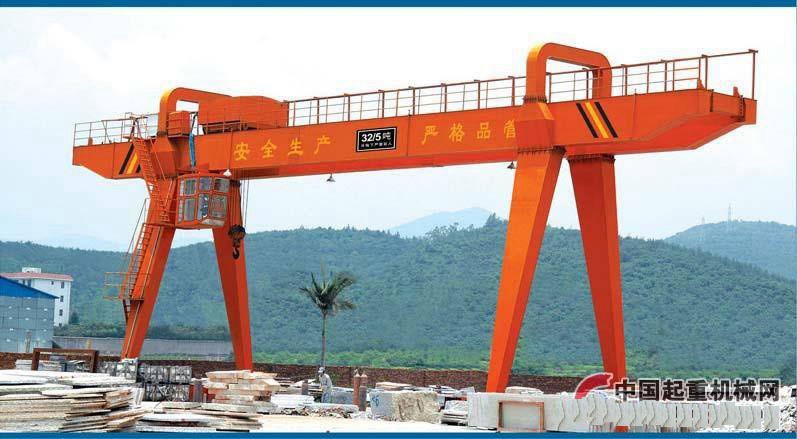

Marble Crane

I. Technical Requirements of Marble Loading Crane:

1. lifting mechanism and operating mechanism running in low speed, in order to improve the prefabrication beam alignment accuracy and reduce the impact on the beam structure.

2. the beam inside the space should be large enough to meet the lifting of prefabricated beams and bridge machine assembly. (Pole machine price)

3. the main steel structure should meet the strength, stiffness, stability under the premise of considering the disassembly and transportation.

4. the use of two crane for lifting prefabricated beams must meet the two loom synchronous operation .

II. Operation and Maintenance Precautions:

1. the crane operator to be trained, qualified before induction.

2. in strict accordance with the crane operating requirements, operating procedures to operate.

3. The mechanical devices, electrical equipment etc, should have regular inspection and maintenance.

4. found that any problems, Gantry crane should be shut down until the problem is removed.

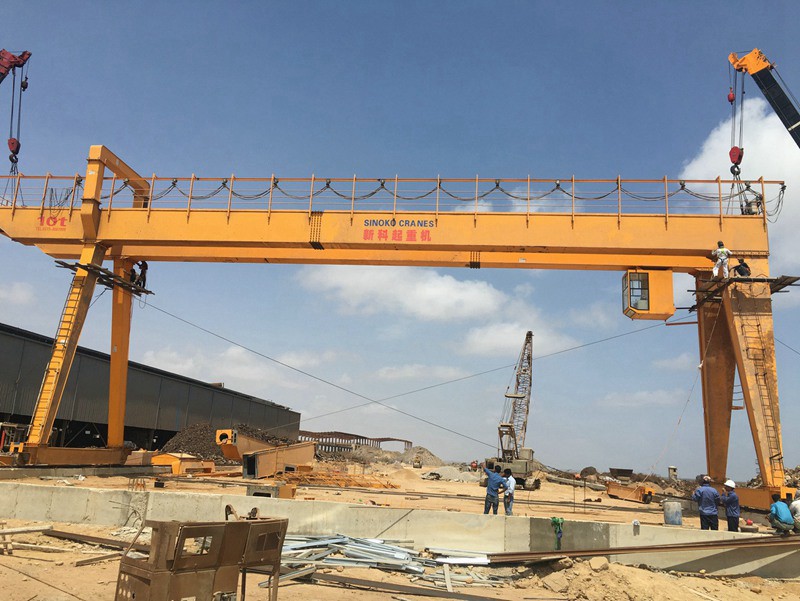

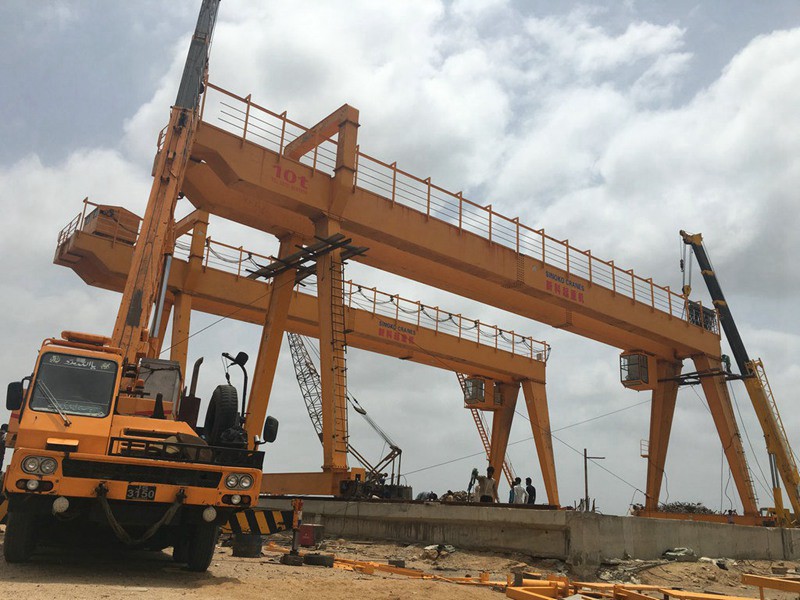

III. Factory Equipments Show






 IV.  Marble Crane Packing and Delivery

Features for Key Parts

Structure

Lifting motor, gearbox, drum and limit switch are integrated with compact design to save the user's working space. Apply the modular design to enhance its reliability and meanwhile to reduce effectively the cost and time for maintenance. Hoisting mechanism is designed strictly in the relevant FEM standards.

Lifting motor

Small starting current, big torque High acceleration Long service life design High speed, low noise

Lifting gearbox

Light weight, corrosion resistance. In the hermetically sealed cabinets, the semi-greasy lubricant makes all the gears adequately lubricated in the designed safety using cycle . Every gear's surface-hardened and precisive-lapped ensure smooth operation Smooth running,low noise Corrosion-resistant, maintenance-free

Lifting brake

Our lifting motor equipped with electric-hydraulic drum type. The brake is installed in the end of motor, the motor brake is automatically closed when the motor without power to prevent the loading slipping. The brake clearance is no need to make manual adjustment after the first set(by the brake springs the clearance adjust itself), According to safety regulations, we use the brake which braking torque is not less than 1.8 times the rated motor torque. Moving fast, high reliability Maintenance-free, self-adjustment Dust proof design ,long life

Drum

Drum is made of high-quality seamless steel pipe by CNC machining. The drum grooves and rope guide can effectively prevent the rope loosen and mixed. The rope is made of imported wire rope with high-strength tensile strength, safety and long service life




Technical parameter for marble gantry crane

Lifting weight

ton

3~20

Span

m

12~30

Lifting height

m

6m 9m

Working

Travelling

Ground

m/min

20

parts

speed

Cabin

20/30/45

Motor

Ground

YSE802-4/0.8*2

YSE90L-4/1.5*2

Cabin

ZDR100-4/1.5*2

ZDR112L1-4/2.1*2

Reducer

Ld

Wheel dia.

mm

270

Electric

Type

CD1 MD1

hoist

Lifting speed

m/min

8 0.8/8

Travelling speed

20

Motor

Lifting

ZD41-4/4.5 ZDS10.4/4.5

Travelling

ZDY12-4/0.4

Working class

A3

Steel track recommended

P24 P38

Power

380v 50Hz

The crane weight

Ground

kg

6646/8646

7630/9430

10163/12163

11931/13931

Cabin

kg

6996/8996

7780/9780

10513/12513

12281/14281

Max. Wheel pressure

KN

37/42

40/46

44/50

48/54
