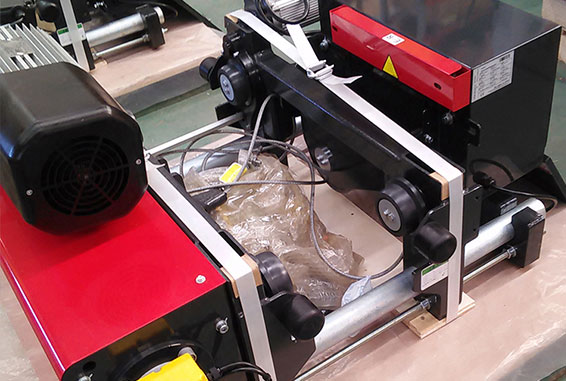

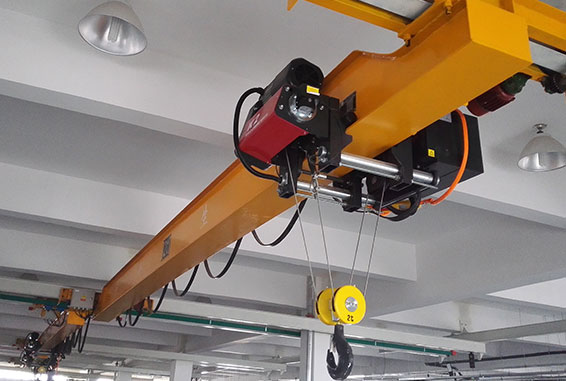

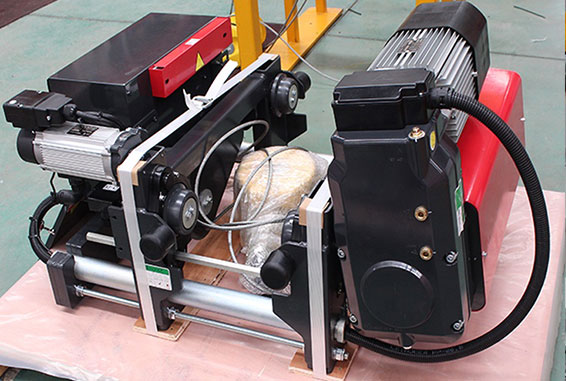

Electric Wire Rope Hoist 2 Ton

Sinoko European electric hoist is a newly developed material handling equipment with advanced design technology according to the FEM standards, European hoist standards and other regulations. The new serial of European electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products. The lifting capacity of the European electric hoist is 1 to 80 tons and the working class is M5 and M6. Customized European electric hoists are available. And the main parameters are presented for your reference.

1. European electric hoist has the features of smooth and silent operation, extended working life, lift-time lubrication and double surface DC brake, etc.


2. Hoisting motor of European electric hoist

Hoisting motor of European electric hoist
The European electric hoist is equipped with double speed changing squirrel cage motors or equipped with frequency converter motor for variable speed control.


The European electric hoist motors have the features, such as, specification according to FEM, and HMI, etc. , low start current, quiet operation, dynamic acceleration characteristic, optimized switching properties for 2 speed motors, double surface brake, and upgraded insulation for inverter operation.


3. Gears of European Electric Hoist

Sealed gearbox housing of European electric hoist are made of aluminum.
Gears run in totally enclosed semi-fluid or oil bathe lubrication, designed for the lifetimes of the crane.

The case-hardened gears with high grade surface treatment ensures high reliability and smooth running with minimum of maintenance.


4. Brakes of European electric hoist

Brakes of European electric hoist
The European electric hoist is equipped with double speed changing squirrel cage motors or equipped with frequency converter motor for variable speed control.


The European electric hoist motors have the features, such as, specification according to FEM, and HMI, etc. , low start current, quiet operation, dynamic acceleration characteristic, optimized switching properties for 2 speed motors, double surface brake, and upgraded insulation for inverter operation.


5. DC magnetic disk brakes are equipped to European electric hoist motors which are adjustment free.
a.The brakes and motors of European electric hoist are designed and manufactured to work together so that the load will not slip when starting, lowering or stopping, etc.
b. European electric hoist brake is fully covered and is dust proof.


6. Safety monitor of European electric hoist

The European electric hoist can be equipped with a safety monitoring unit, with the features of practical, easy to use and sophisticated, which will stop the electric hoist when hoist overloading or motor overheating occur, which increases safety and optimize maintenance of European electric hoists.
Capacity2 Ton
Height of lift (m)0-60m
Lifting speed5/0.8 2-speed or Customized
Transvering speed20m/min
Working dutyM6
Rain coverAvailable
ColorRed, Yellow, Blue, Orange, White or Customized
Power SourceElectric


If you're in need of a high-quality, environmentally friendly, energy-saving, and cost-effective electric wire rope hoist, look no further than Kinocranes' newly developed 2-ton electric hoist. With its advanced design technology and compliance with FEM standards, this hoist is built to meet your material handling needs efficiently and safely.

Contact Kinocranes today to learn more about their 2-ton electric wire rope hoist and take advantage of this innovative solution for your business.



    Get In Touch

    Our teams are on hand to provide you with the right lifting solutions.

    FEW TIPS

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day: ?

    6.Traveling distance of the crane: m?
