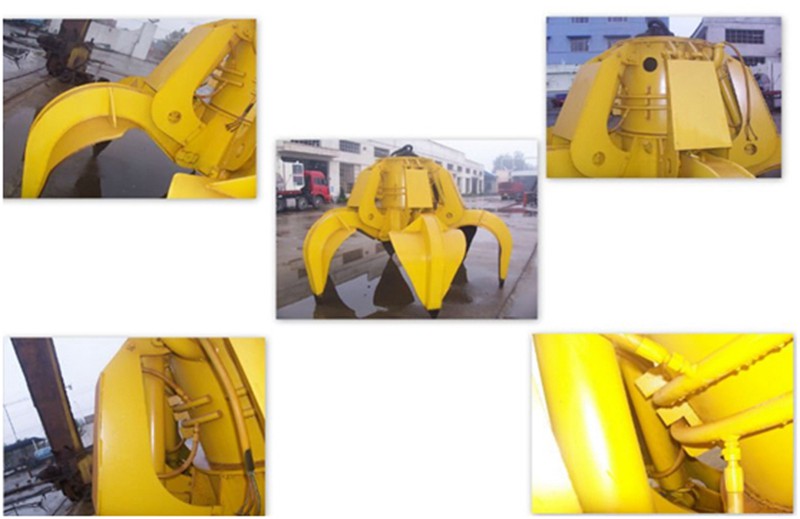

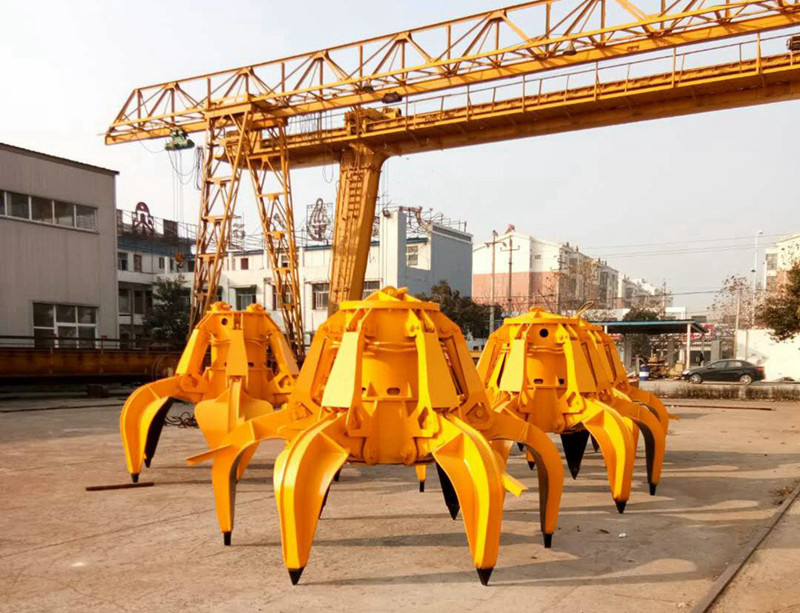

Advantage of scrap shed iron scrap handling grab bucket
1.Handling steel scrap , irregular block.
2.Powered by a electric motor of high performance
3.Compact structure with built-in hydraulic system
Working Principle of Scrap Handling Grabs
The scrap shed iron scrap handling grab becomes open and close with hydraulic cylinders. The drive- unit for this is an electro- motor with hydraulic pump. The drive- unit of the grab needs an electrical power- supply from the crane over a cable. Over this cable the grab gets also his commands. For the cable- guide is a additional equipment on the crane- jib necessary
1. Grab frame: Q345 steel
2. Grab peel: The peel is made of Q345 and the edge is made of high wear-resistance steel for stable performance and long service life
3. Grab mechanism: Motor, hydraulic pump, valve block, pipes and hydraulic oil tank
4. Protection grade: Up to IP 65, different according to working requirements and environment
5. Coating thickness: up to 180 μm
| Volume (m3) | Motor 40%ED (kw) | Crane SWL (t) | Grab Weight (kg) |
| 0.5 | 7.3 | 2.5 | 945 |
| 1 | 7.3 | 3 | 1490 |
| 2 | 10 | 5 | 1540 |
| 2.5 | 10 | 6.3 | 2825 |
| 3 | 14.5 | 10 | 3040 |
