Electromagnetic Scrap Magnet for EOT Crane Types For Option:
1.1 Normal temperature type (DC-220V TD-60%): for lifting normal temperature steel scraps.
1.2 High temperature type (DC-220V TD-60%): for lifting high temperature steel scraps or lift steel scraps in high temperature environment. It is specially for used to lift steel scraps into furnace to make steel in steel plants. This magnet can handle the steel scraps under the temperature of 650°C.
1.3 High frequency type (DC-220V TD-75%): for lifting normal temperature steel scraps in high frequency use. It can be operated more efficiently and frequently since the duty cycle is up to 75%.
The over-excitation control system (DC350/DC290V/DC-200V) is also available for large size magnet of this kind, in order to quicken the current, increasing speed and to exert stronger lifting capacity.
Electromagnetic Scrap Magnet Installation Pattern:

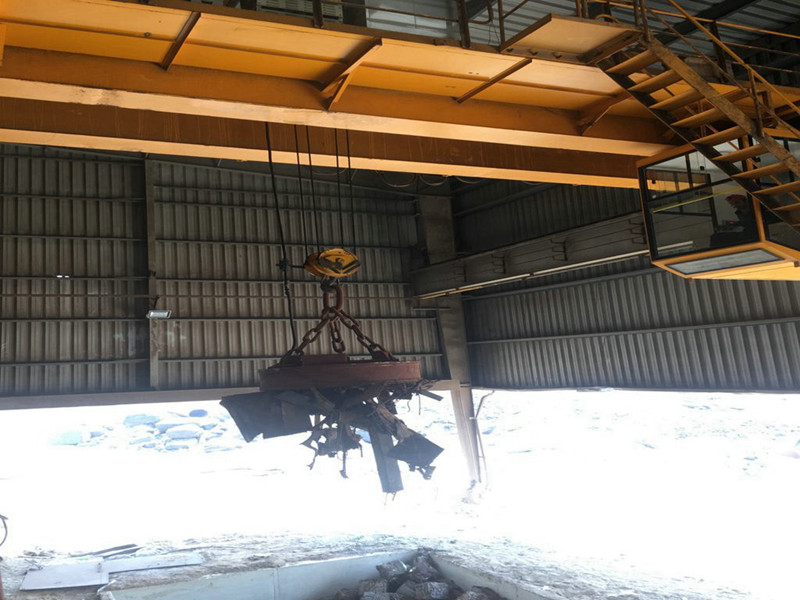

2.1 Used with crane:
Complete set of this equipment: MW5 Scraps Circular Magnet Lifting (for crane), Rectifying Control Equipment, Cable Reel and Cable Connector. Simple and easy to installation. We can send installation video to guide your side.
2.2 Used with excavator:
Complete set of this equipment: MW5 Scraps Circular Magnet Lifting (for excavator), Control Equipment and Generator Set.
a. It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption, high lifting capacity and long serving life.
b. This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils .The insulation grade can reach class special C.
c. It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
d. With simple structure reliability, it is suitable for working with all kinds of lifting equipments.
Scrap Magnet Overall Dimension Drawing and Specification
