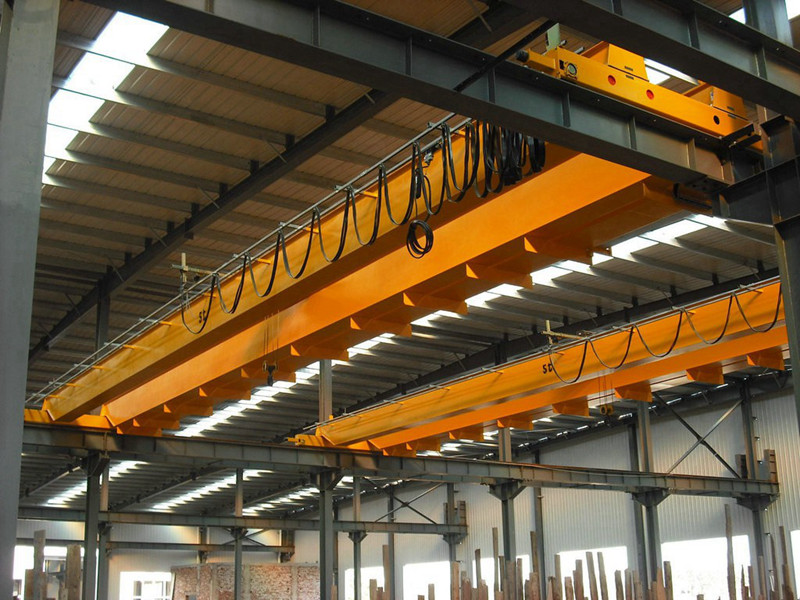

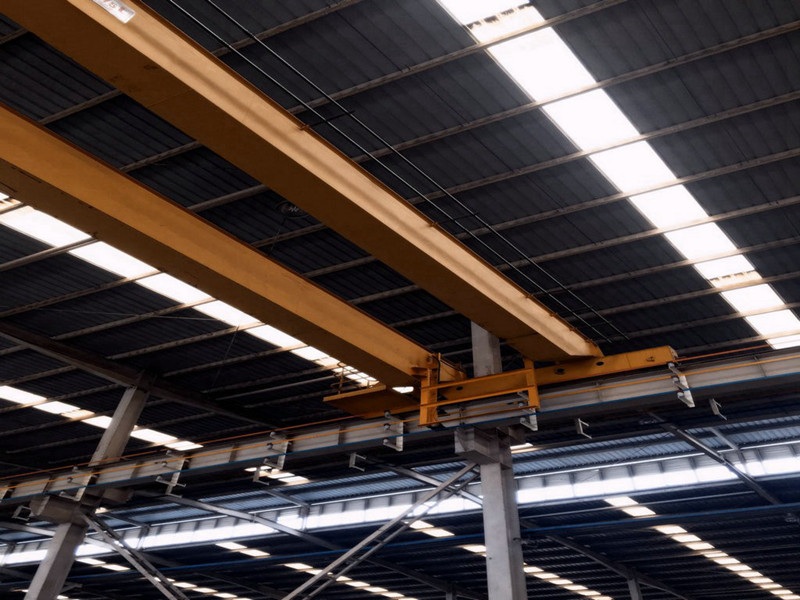

LH model Double Girder EOT Cranes is a kind of bridge crane by traditional chinese style design. Due to long time development, this kind of overhead traveling crane could be made by low cost and good operation experience. If you want to build a factory by small budget. It is a good choice to choose this kind of verhead traveling crane. The hoisting speed could be specilized designed, max could be 10~15m/min.
Lifting Catacity | t | 5 | 10/3 | 16/5 | 20/5 | 32/10 | |
Span | m | 7.5-22.5 | |||||
Lifting Height | m | 6, 9, 12, 18, 24, 30 | |||||
Working Class | A3-A4 | ||||||
Electric Hoist | CD/MD | CD/MD | CD/MD | HC | HC | ||
Speed | Main hook | m/min | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | 3.3 | 3(0.3/3) |
Auxiliary | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) | |||
Trolley Travelling | 20 | 20 | 20 | 20 | 20 | ||
Crane Travelling | 30 | 30 | 30 | 30 | 30 | ||
Steel Track Recommend | 38kg/m | 38kg/m | 38kg/m | 43kg/m | 43kg/m | ||
Power Source | 3 phase 380V AC 50Hz OR Customer’s requirement | ||||||
