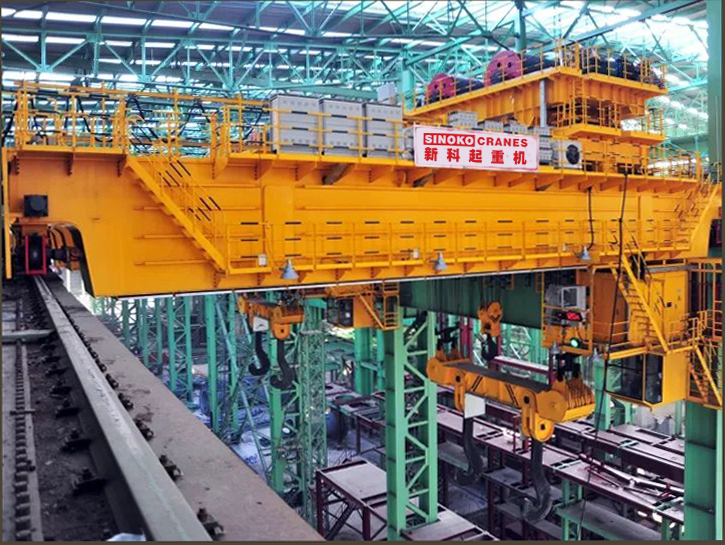

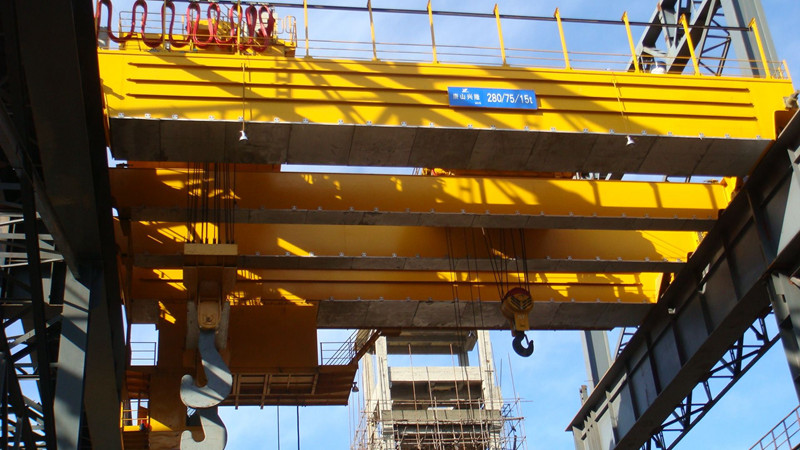

The charging crane are usually designed as double independent trolley type, or single trolley type as the lifting mechanism. According with the structure of feed spout, for 3 ear bearing type feed spout, the charging crane should design the hook which close to the feed spout as double lifting point hook. The hook which is far away the feed spout should be designed as single hook type.
For 4 ears type feed spout, the charging crane should be designed the main hook and auxiliary hook as double lifting point hooks. Normally double trolley type is very popular for long sqaure steel scrap basket lifting:

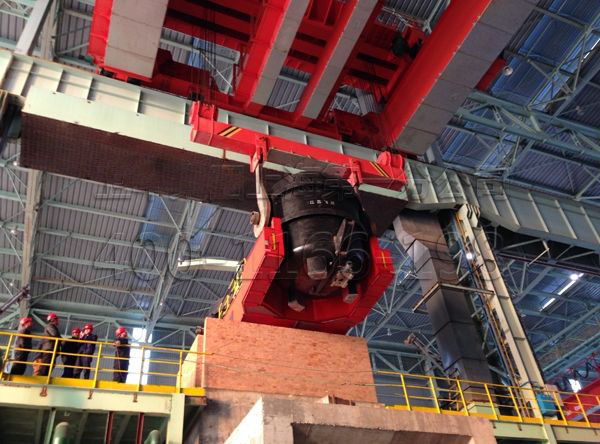

The charging crane have included several components such as electrical control equipment, trolley system, crane traveling mechanism, crane girder, hooks etc. Since the scrap did not separate very balance in the feed spout, the charging crane design should consider the unbalance loading. The charging crane are lifting the steel scrap basket and charging them into converter, it have speed requirements for main hook and auxiliary hook. The speed should be synchronized variable speed.
