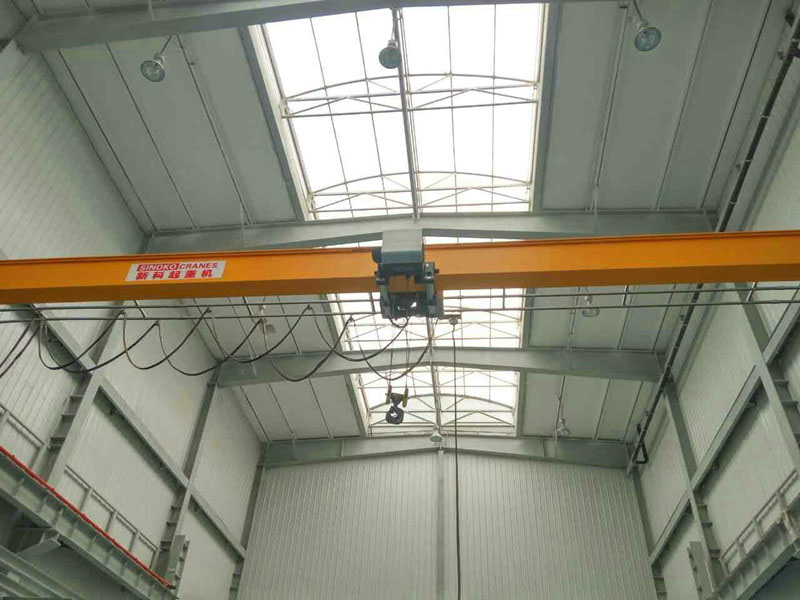

Single Beam EOT Crane

Main beam

The main beam employs bias-rail box-type structure and connects with end beam by high-strength bolt ensuring easy transportation, making crane run steadily.


Main beam

European Type Hoist


European Type Hoist

The hoist trolley adopt Europe three-in-one drive form, the harden gear face reducer has good performances in compact structure, low noise, no oil leakage and long service life. The hoist cross travelling and lifting are all by VVVF control. You can choose SINOKO CRANE design hoist and the original SWF brand hoist for your VVVF Control Roof Mobile Crane.

End beam

End beam is made of rectangular steel-pipe or steel plate by welding, the finished end beam get once positioning processed on numeral control machine in order to ensure dimension accuracy.

End beam

Electric control cabinet

Electric control cabinet
Surface of electric cabinet is dealt with through antisepsis plastic spraying, reasonable layout, easy maintenance, with protection level IP55, layout in electric cabinet is reasonable in order to ensure easy reparation.


Compact Design: The Single Beam EOT Crane features a compact design, making it suitable for facilities with limited space. It maximizes the available working area while providing efficient lifting capabilities.

Versatile Lifting: This crane is capable of lifting a wide range of loads, from medium to heavy weights. It is suitable for various materials, equipment, and products used in manufacturing, assembly, and warehousing operations.

Smooth and Precise Operation: Equipped with a reliable control system, the Single Beam EOT Crane ensures smooth and precise load handling. The operator can control the hoisting, trolley movement, and bridge travel with ease and accuracy.

End Truck Assembly: The end trucks support the horizontal beam and provide smooth movement along the crane rails. They are equipped with wheels or drive mechanisms for easy and efficient travel.

Safety Features: Safety is a top priority in crane operations. The Single Beam EOT Crane includes safety features such as overload protection, emergency stop buttons, limit switches, and anti-collision systems, ensuring safe and secure lifting operations.


lifting capacity(T)
1,2,3,5,10T
16,20T
Span(M)
7.5-31.5M
Crane travelling
mechanism
Travelling speed(m/min)
20/30
20/30
Motor
Model
ZDY21-4
ZDY21-4
ZDY122-4
ZDY131S-4
ZDY112L1-4
Power(kw)
2/0.8
2/1.5
1.5/2
2.2/2
2.2/2
Rotation (m/min)
1380
1380
Lifting mechanism
Electric hoist model
CD1/MD1
MD1/HC
(electric hoist)&electric hoist
travelling mechanism

Lifting speed (m/min)
8,8/0.8 7,7/0.7
3.5 3.5/0.35
Lifting height (m)
6 ,9 ,12, 18, 24, 30
12,18,24,30
Travelling speed (m/min)
20(30)
20(30)
Motor
Taper Squirrel-cage type
Taper Squirrel-cage type
Work duty
A3-A5
Power supply
380V 50HZ three phase
Wheel diameter
270mm
370mm
Treadof trail
37-70mm
37-70mm


At Sinokocranes, we specialize in providing high-quality and innovative lifting solutions. Our Single Beam EOT Crane is designed to meet the demanding requirements of various industries. Choose Sinokocranes for superior performance, durability, and excellent customer service.


Optimize your material handling with the reliable Single Beam EOT Crane. Experience efficient lifting, compact design, and precise operation. Contact us today to learn more about this crane and how it can enhance your operations!



    Get In Touch

    Our teams are on hand to provide you with the right lifting solutions.

    FEW TIPS

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day: ?

    6.Traveling distance of the crane: m?
