Panel Push Button Type Crane Remote Control
Industrial wireless remote control is specially used to control engineering machinery or industrial equipment. Mainly used in metallurgy, shipbuilding, container terminals, warehousing, machinery manufacturing, chemical industry, papermaking, construction, fire fighting and construction machinery, etc.,
System Model: TCS-B12
System size: Transmitter 193 x 62 x 50mm
Receiver 298 x 206 x 75mm
System Weight: Transmitter 320g; Receiver 1400g
System antenna: transmitter built-in; receiver external
Shell material: high-strength engineering plastics
Protection class: IP65
Operating frequency: 400-470MHz
Communication distance: ≥100 meters
Input and output: Transmitter 8 dual-speed keys; receiver 13-way
Electrical output, 1 stop emergency output,
CANBUS output (special customization required)
Power Supply: Transmitter 4.5VDC (3 AA batteries);
Receiver 42-250VAC 50Hz/60Hz,
10-30VDC, 380VAC optional
Working temperature: -25°C~+70°C
Output interface: heavy-duty connector, optional cable
System features: Transmitter with smart key, automatic shutdown
Optional (0-30 minutes optional), low battery
Audible alarm
Scope of application: Small and medium-sized institutions with ≤3 control points and ≤13 control points
equipment. Such as: 3 agencies double speed.

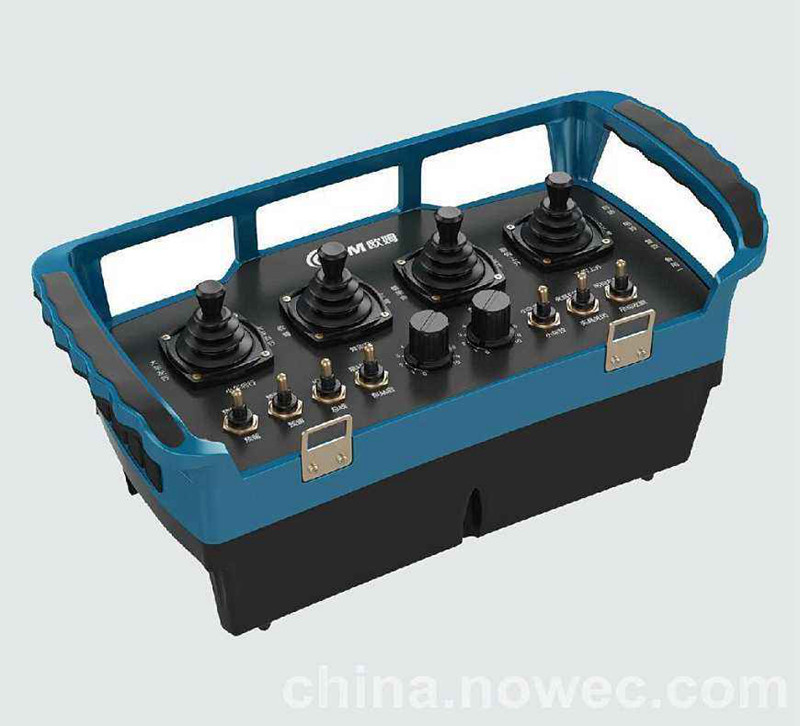

Sway Control with Rockers Crane Remote Control System

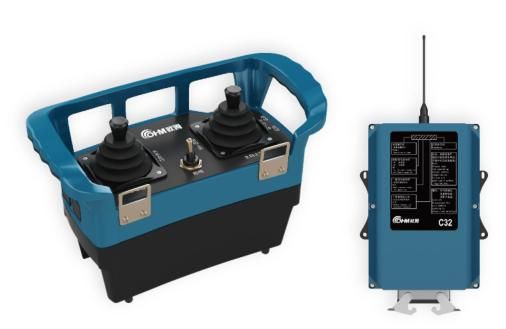

Germany OHM remote control TCS-C32 (double rocker four institutions four speed industrial remote control) action function execution
The main hook rises (fourth speed), the main hook descends (fourth speed), the car 1 moves forward (fourth speed), the car 1 moves backward (four speed), the auxiliary hook rises (four speed), and the auxiliary hook descends (four speed). Car 2 forward (four speed), car 2 rear (four speed), cart left (four speed), cart right (four speed), start + emergency stop + safety key switch. The action execution keys are in jog mode. Other logic relations such as self-locking mode can be set according to requirements, and some interlocking modes are not interlocked. The start, emergency stop, and security key are self-hold modes.
Standards and Grades of Sinokocrane Crane Remote Control System:
Safety standards: EN954-1 Category 3
EN13849 Class D;
Radio transmission equipment type approval certificate (National Committee),
Crane remote control device safety certificate (Liao'an Institute);
