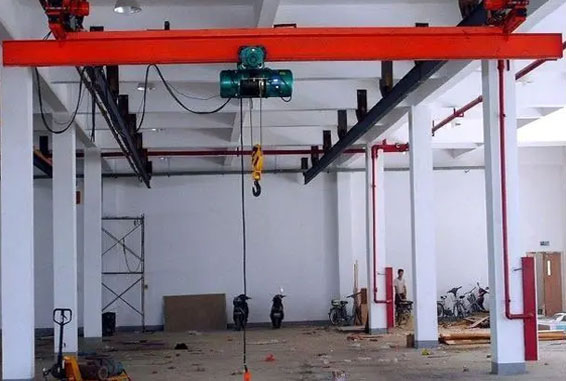

As a versatile lifting solution, the 5 ton overhead pendant crane is designed to efficiently handle loads weighing up to 5 tons in various industrial applications. It is equipped with a pendant control system that allows for precise and easy operation. The overhead pendant crane is commonly used in workshops, warehouses, assembly lines, and other work environments where medium-weight lifting is required.
Light self weight, low noise and few faults, generally used in normal working condition.
Designed base on DIN standard from German.
Save the power, lower wheel load, so it can reduce the cost of support beam.
Brand motor, the insulation grade is F, and protective grade is IP54, it shall also have over heated and alarming function, the motor cover adopts aluminum alloy to drawing the molding, with better heat dissipation.
The wheel forged by 65 Mn alloy steel, with the performance of abrasive resistance, ant fatigue and long service life.
Safety Features
♦ Lifting and travelling limit switches
♦ Emergency Stop
♦ Loss voltage protection
♦ Grounded protection
♦ Overload protection
♦ Short circuit protection
♦ Overheating protection
♦ Overspeed protection
♦ Overcurrent protection
♦ Faulted phase protection
| Capacity (t) | 5 |
| Span (m) | 10.5-31.5 |
| Lifting Height (m) | 9 |
| Lifting Speed (m/min) | 5/0.83 |
| Max. Wheel Load (KN) | 36.8-74.2 |
| Total Power (KW) | 5.5-7.2 |
| Total Weight (T) | 3.9-19.6 |
Contact us today to learn more about our 5-ton overhead pendant crane and how it can improve your material handling processes. Our team of experts is ready to assist you in finding the right lifting solution for your specific requirements.
