5 ton Overhead Crane

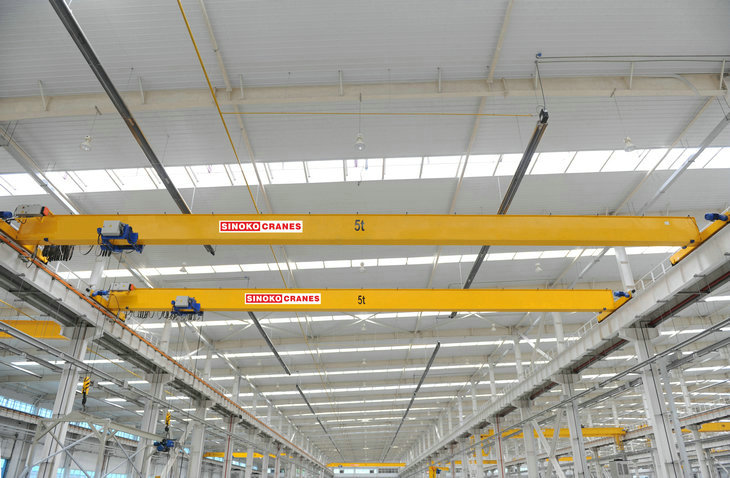

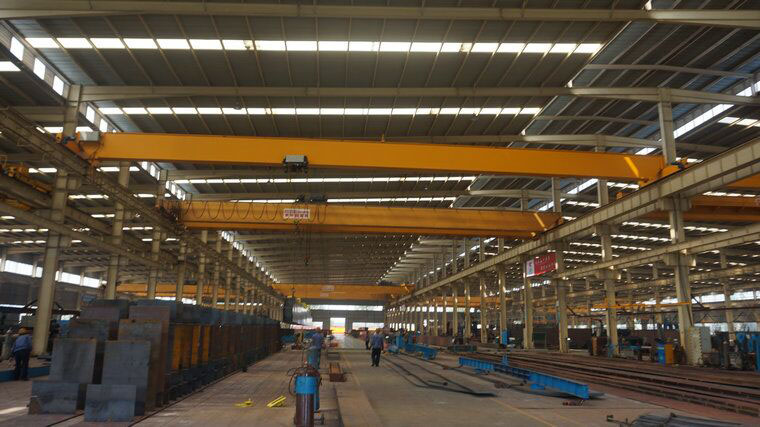

5 tons overhead crane (bridge crane) can be designed as single girder and double beam overhead crane according to the customer's working frequency, and can be designed as underhung or low headroom overhead crane according to the customer's workshop. All these cranes can be customized according to special requirements.


If you are not sure which type of 5 ton overhead crane is more suitable for you, you can send us your working hours and Factory pictures, our engineers will design your own material handling equipment for you.


For 5ton Overhead Crane, we sinkocranes focus on details to ensure the high performance of our crane and high experience to our customer



5ton Overhead Crane Main beam

The main beam adopts box-type structure and connects with end beams by high-strength bolt ensuring easy transportation. The professional processing equipment ensure the connection accuracy of main beamand end beam, making crane run steadily.

5 ton Overhead Crane End beam

End beams are the rectangular steel pipe and welding molding in a CNC machine tool positioning processing; each end beam is equipped with a double wheel rim wheel group, buffer and anti-derailment protection device.



5ton Overhead Crane Hoist

Ø Maximum space using

Ø Precise operation

Ø Low maintenance cost

Ø Less fault downtime

Ø Minimum hook limit space & distance

Ø Standard world-renowned brands: SEW, ABM three in one type motor, Schneider electric parts

5ton Overhead Crane Drum, Steel wire rope, Rope guide

Ø The drum is made from high-quality seamless pipes and processed by numeral control CNC machine, after finish machining, the rope groove on drum works coordinately with rope guide to efficiently prevent rope loose and tangling.

Ø Steel wire rope adopts high strength 2160N/mm2 imported wire rope, which has super safety performance and longer service life

Ø Standard rope guide is processed from engineering plastics, with strong abrasion resistance and good self-lubricating performance.



5 ton Overhead Crane Lifting mechanism gear box

Shell of reduce uses aluminum alloy material, with light weight and corrosion resistance. Semi-grease lubricant in full sealed box gets all gears lubricated fully and should not be changed within the design circle for safety service. Each gear which gets the process of surface hardening and high-precision grinding ensures stable running of gear box.

Ø Small size and light weight

Ø Running smoothly and steadily, low noise

Ø Corrosion resistance and maintenance-free

5 ton Overhead Crane Lifting mechanism brake

The hoisting mechanism motor equipped with double-disc electromagnetic brake. According to the safety regulations, SINOKO CRANE adopts the braking force of the brake higher than 1.8 times of the rated torque.

Ø Fast movement and high reliability

Ø Maintenance-free and self-regulated

Ø Dustproof design and longer service life



Donly three in one type drive for 5 ton Overhead Crane

Ø Drive mechanism is sealed three in one type.

Ø Self- lubricating

Ø Maintenance free

Ø Inverter control

Ø Stable running

Ø Reliable quality

Ø Low noise

Limit Switch for 5 ton Overhead Crane

The hoist is equipped with the upper and lower end rotating chip circuit limiting device, and also can be selected with the touch top limit. At the same time, the machine is equipped with an overload protection device to ensure the safety of the operation.



Hook for 5 ton Overhead Crane

Standard swing hook

The hook can be freely rotated in the range of 360 degrees, vertical and 180 degrees, and the loading and unloading of the square change goods.

Hoist cable dragging system for 5 ton Overhead Crane

Ø Consisting of flexible flat cable, C-shaped steel slide

Ø Flat cable with good flexibility

Ø Aerial socket connecting, one to one correspondence, convenience of connection

Ø Maintenance free, long operating life.

Hoist cable dragging system for 5 ton Overhead Crane


Item

5ton Europe Design Single Girder Overhead Crane

Main Electrical System

Schneider Brand

Frequency converter/VVVF Drive

Schneider Converter

Lifting mechanism

ABM/SEW

Three in One Mechanism

(Motor & Reducer & Brake)

Travelling Mechanism

DONLY Three in One Mechanism

Wire Rope

PFEIFER

Wire Rope Safety Factor

5 times

Wire Rope Drum

Rolling Steel Plate

Bearing

SKF / drum, hook set, pulley.

Crane wheel

Forged type-42CrMo

Travelling cable

High Temperature Resistance Cable

Buffer

Black rubber buffer

Power Source/ Control Voltage

380V 50HZ 4P AC/48V

Motor Insulation & Stator Protection

Class H & IP54

Working Temperature

60℃

Cover Plate under Beam

Q345B

Main structure Steel material

Q235

Painting

Shot blast Cleaning Dispose- 2 Grade, Epoxy Primer,

Anti-corrosion Paint, Polyurethane surface painting

Safety Feature

Lifting and travelling limit switches; Emergency Stop; Loss voltage protection; Grounded protection; Overload protection ;Short circuit protection; Overheating protection ; Over speed protection Over current protection; Faulted phase protection
