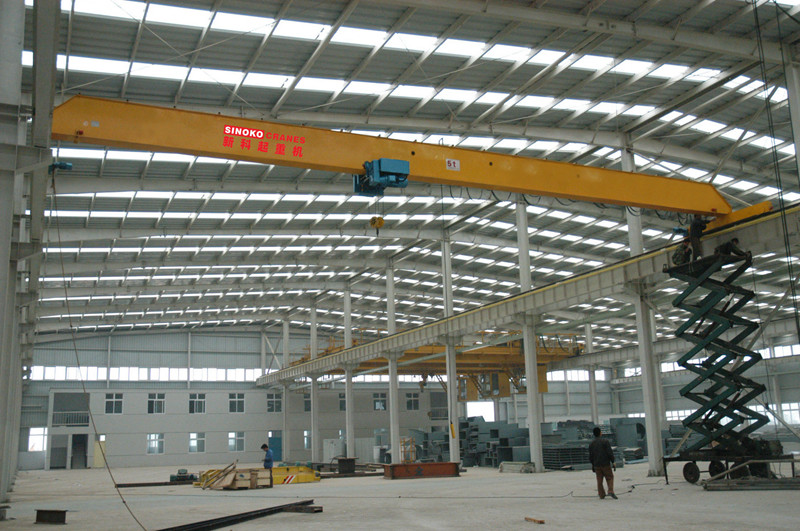

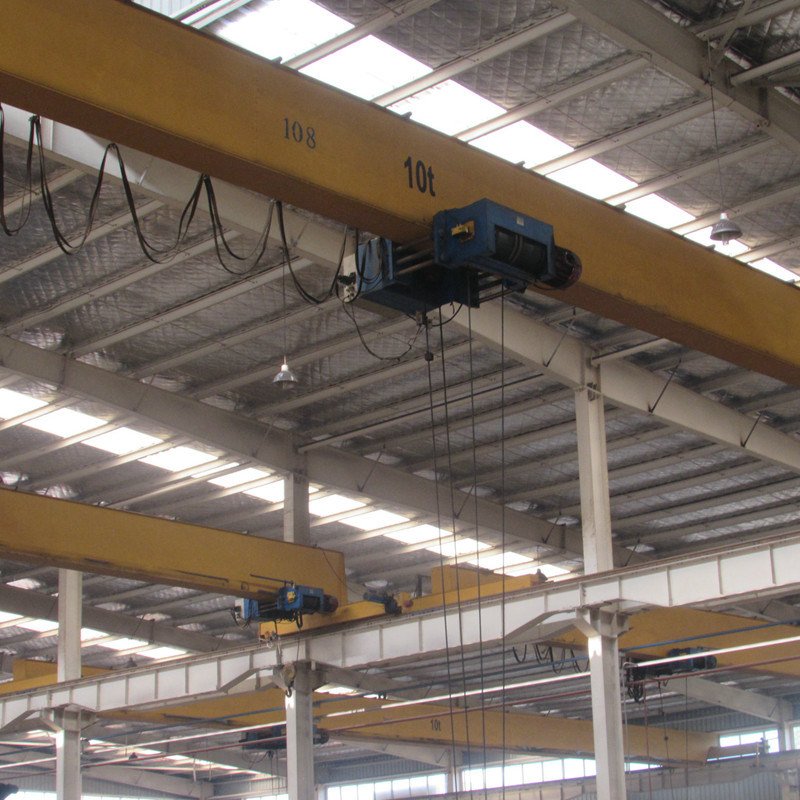

The components of SINOKO Factory Handling Equipment Hoist Crane are advanced, such as galvanized high strength wire rope, self-adjust disk brake and hard tooth reducer both for lifting mechanism, programmable lifting limiter, and so on, is the innovative product in the domestic crane industry.
The main beam adopts bias-rail box-type structure and connects with end beam by high-strength bolt ensuring easy operation. The professional equipments ensure the connection accuracy of main end beam, making crane run steadily. |  |
 | Long crane & cross trolley travelling mechanism adopt Europe three-in-one drive type, harden tooth surface gear box, good performance in compact structure, low noise, none oil leakage and longer service life. |
Full variable-frequency control runs steadily without any impaction. Run with at low speed and light load at high speed, it can save energy and reduce consumption. |  |
| Item | 5 ton Overhead Hoist Crane |
| Main Electrical System | Schneider Brand |
| Frequency converter/VVVFDrive | Schneider Converter |
| Lifting mechanism | ABM/SEW Three in One Mechanism (Motor & Reducer & Brake) |
| Travelling Mechanism | DONLY Three in One Mechanism |
| Wire Rope | PFEIFER |
| Wire Rope Safety Factor | 5 times |
| Wire Rope Drum | Rolling Steel Plate |
| Bearing | SKF / drum, hook set, pulley. |
| Crane wheel | Forged type-42CrMo |
| Travelling cable | High Temperature Resistance |
| Buffer | CableBlack rubber buffer |
| Power Source/ Control Voltage | 380V 50HZ 4P AC/48Vw |
| Motor Insulation & StatorProtection | Class H & IP54 |
| Working Temperature | 60℃ |
| Cover Plate under Beam | Q345B |
| Main structure Steel material | Q235 |
| Painting | Shot blast Cleaning Dispose- 2 Grade, Epoxy Primer,Anti-corrosion Paint, Polyurethane surface painting |
| Safety Feature | Lifting and travelling limit switches; Emergency Stop; Loss voltage protection;Grounded protection; Overload protection ;Short circuit protection; Overheating protection; Over speed protection ;Over current protection; Faulted phase protection |
